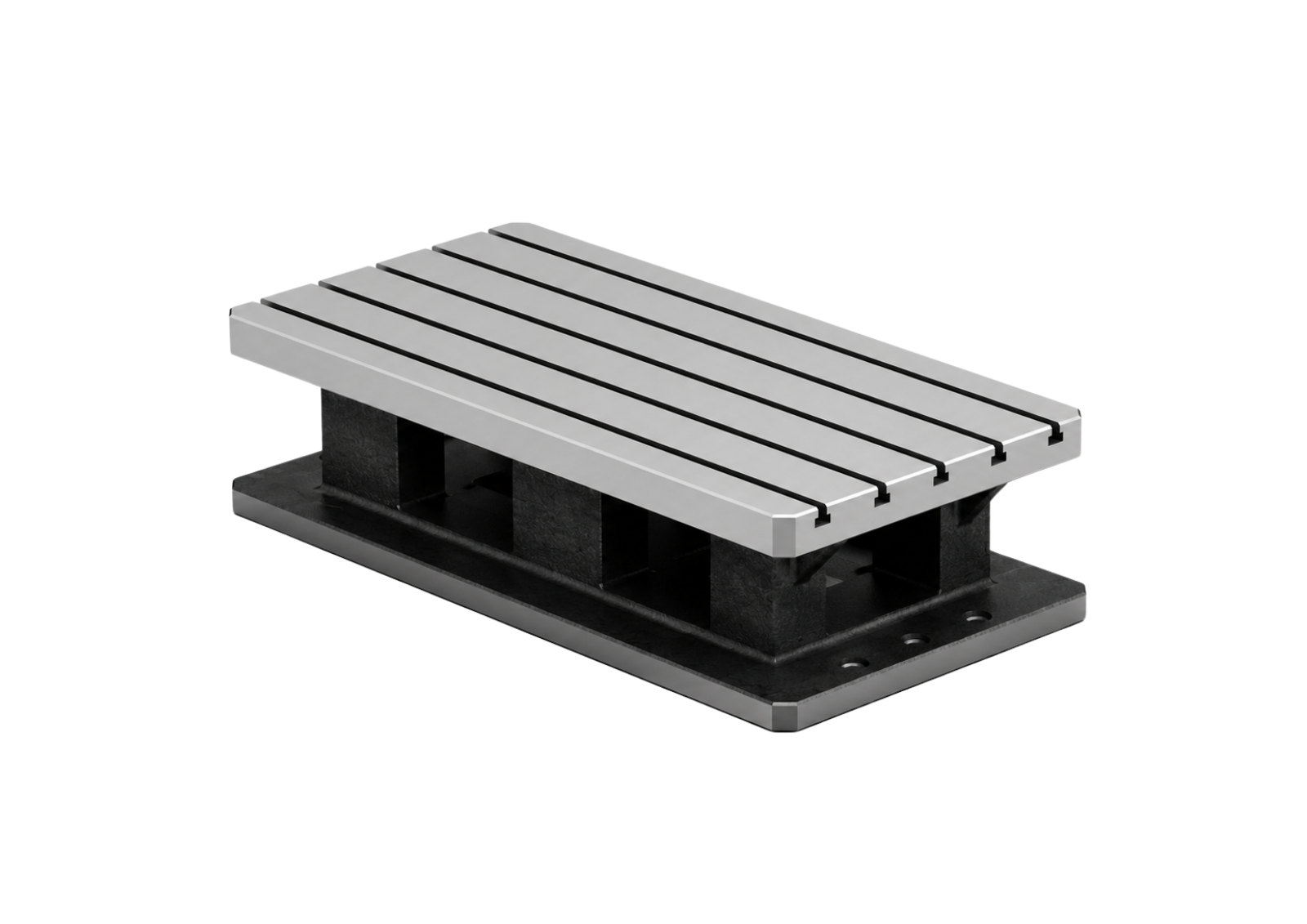

Riser-Table T-Slot
Scope of Application
- Vertical machine centres
- Horizontal Machining Centres
- Special purpose machines
Product Features
- Material: Cast iron GG30(DIN)
- Heat Treated Normalized
- T-slot available in 14 & 18mm
- Ready to accept a hole pattern.
- Available in custom sizes.
- Easily adapts to standardized jig components.

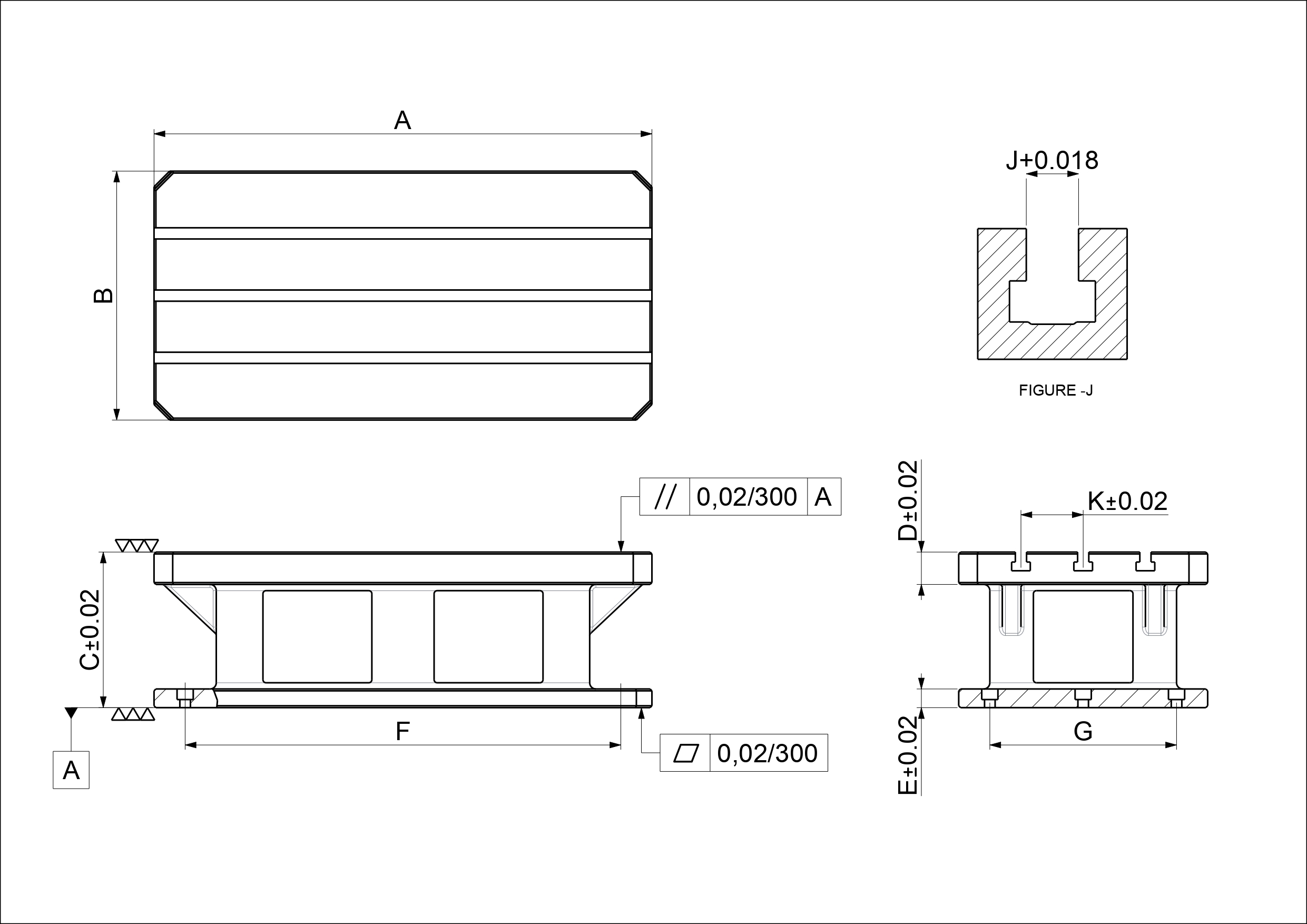

| Article Number | MODEL | A | B | C | D | E | F | G | J | K | WT.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/RISTL/TSLOTNP001 | RTT/SQ/400400/250-14 | 400 | 400 | 250 | 52 | 30 | As Required | As Required | 14 | 50 | 94 | Download | Download |
| FG/WH/RISTL/TSLOTNP002 | RTT/SQ/500500/250-14 | 500 | 500 | 250 | 52 | 30 | As Required | As Required | 14 | 50 | 102 | Download | Download |
| FG/WH/RISTL/TSLOTNP003 | RTT/RT/600300/250-14 | 600 | 300 | 250 | 52 | 30 | As Required | As Required | 14 | 50 | 132 | Download | Download |
| FG/WH/RISTL/TSLOTNP004 | RTT/RT/800400/250-14 | 800 | 400 | 250 | 52 | 30 | As Required | As Required | 14 | 50 | 230 | Download | Download |
| FG/WH/RISTL/TSLOTNP005 | RTT/RT/1000500/250-14 | 1000 | 500 | 250 | 52 | 30 | As Required | As Required | 14 | 50 | 370 | Download | Download |
| FG/WH/RISTL/TSL18NP001 | RTT/SQ/400400/250-18 | 400 | 400 | 250 | 52 | 30 | As Required | As Required | 18 | 50 | 90 | Download | Download |
| FG/WH/RISTL/TSL18NP002 | RTT/SQ/500500/250-18 | 500 | 500 | 250 | 52 | 30 | As Required | As Required | 18 | 50 | 100 | Download | Download |
| FG/WH/RISTL/TSL18NP003 | RTT/RT/600300/250-18 | 600 | 300 | 250 | 52 | 30 | As Required | As Required | 18 | 50 | 128 | Download | Download |
| FG/WH/RISTL/TSL18NP004 | RTT/RT/800400/250-18 | 800 | 400 | 250 | 52 | 30 | As Required | As Required | 18 | 50 | 225 | Download | Download |
| FG/WH/RISTL/TSL18NP005 | RTT/RT/1000500/250-18 | 1000 | 500 | 250 | 52 | 30 | As Required | As Required | 18 | 50 | 365 | Download | Download |
