SCV 125/225

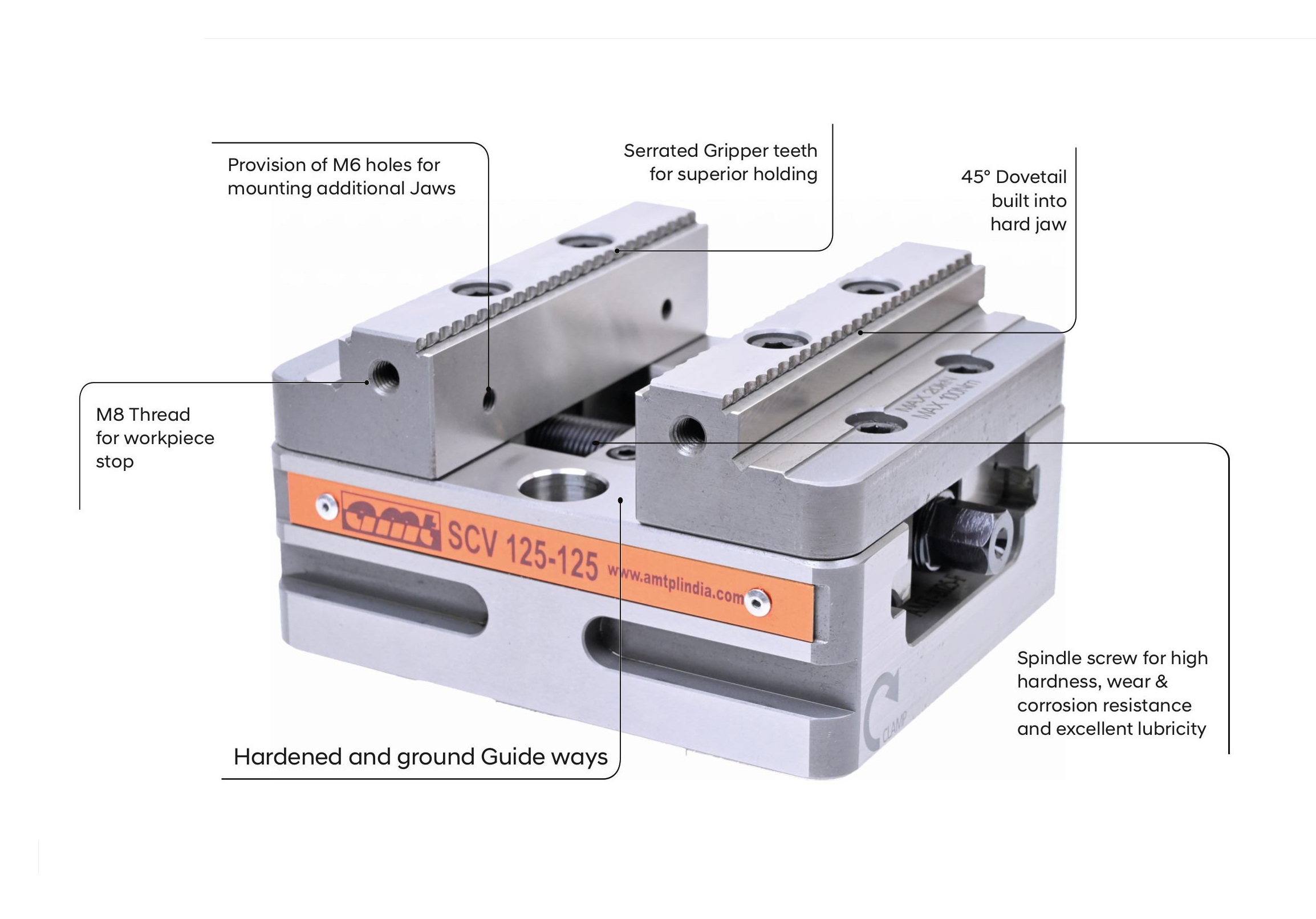

With the clamping jaw systems you can clamp parallel workpieces safely and quickly. Stamping and clamping takes place in one work step.

Hardened and ground Guide ways.
Possibility for work stop mounting.
Serrated Gripper teeth for superior holding.
45° Dovetail built into hard jaw.
TiN coated Spindle screw for high hardness, wear & corrosion resistance and excellent lubricity.
Provision of M5 holes for mounting additional Jaws.

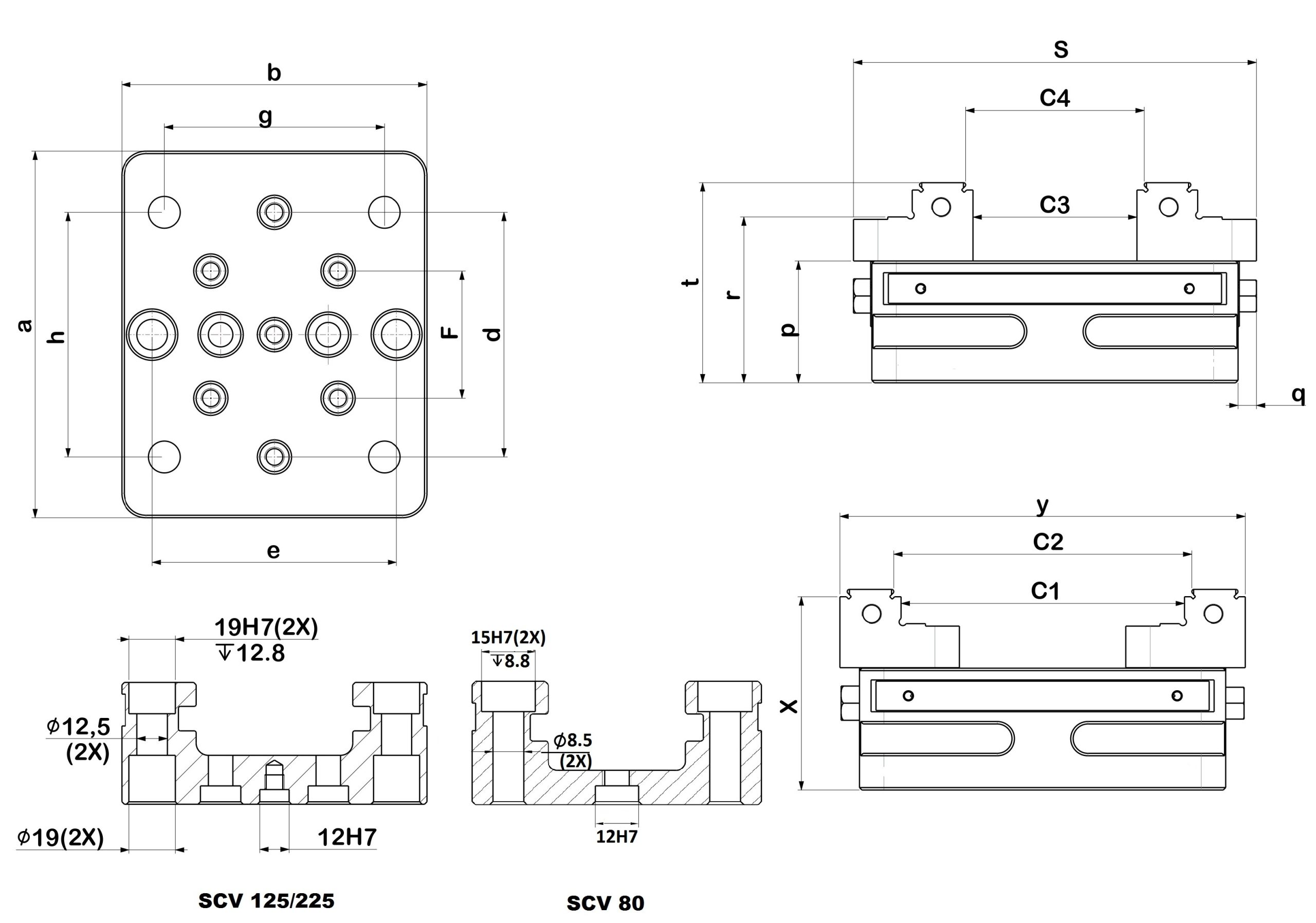

Technical Specification

Variant		SCV 80	SCV 125	SCV 225
Dimensions in mm	A	105	150	250
	B	80	125	125
	E	60	100	96
	F	52±0.01	52±0.01	96±0.02
	G	N/A	N/A	100
	H	N/A	N/A	200
	P	35.8	50	50
	Q	7.5	7.5	7.5
	R	49	68	68
	S	116	167	267
	T	57	82	82
	X	54	79	79
	Y	123	166	266
	C1	74	120	220
	C2	80	125	225
	C3	36	68	168
	C4	42	73	173

Variant	SCV 80-80	SCV 125-125	SCV 125-225
Dimensions (mm)	105 x 80 x 82	150 x 125 x 82	250 x 225 x 82
Clamping Range(Forward Jaws)(mm)	6 – 40.3	6 – 73	6 – 173
Clamping Range(Reversed Jaws)(mm)	38.5 – 76.3	55 – 125	55-225
Maximum Clamping Force (kN)	22	20	20
Maximum Torque (Nm)	60	100	100
Weight (Kg)	2.5	8	11

Heavy duty high precise self-centric clamping vice with good repeatability.
Compact design with best accessibility.
Clamping force – 20 KN with 100Nm.
Interface for ZPS clamping and mounting holes as standard.
Spindle screw with TiN coating (for high hardness, wear & corrosion resistance and excellent lubricity).
4 Bolt jaw mounting for Increased Clamping Force.
Provision of M5 holes for mounting additional Jaws.
Serrated gripper teeth for superior bite with 45° Dovetail provision.
Featuring a dowel pin for better accuracy in Jaws.
High material savings due to minimal clamping edge requirements.

Accessories Name	Image
Machinable Jaws :- For holding parts that would be difficult to fixture with standard, flat vice jaws during machining. Suitable for Profile and Irregular shape workpiece.

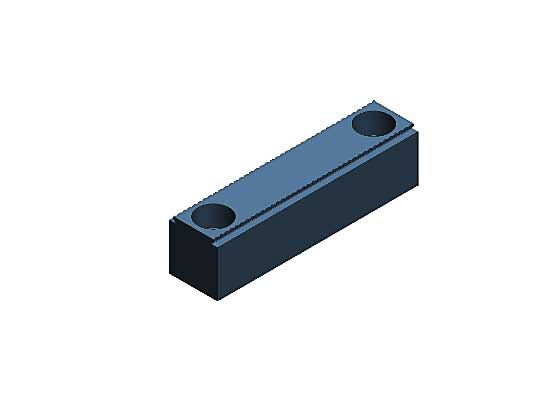

Intermediate Jaw :- For clamping two work pieces simultaneously. Installation between both the jaws.

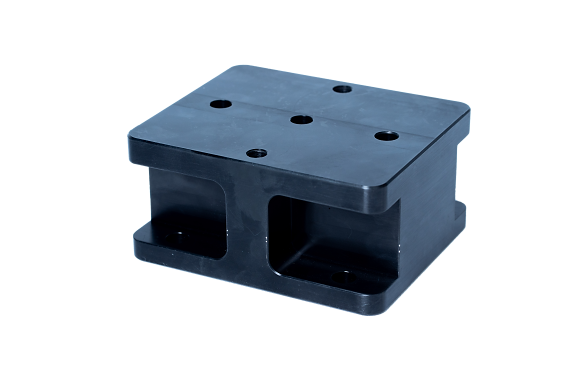

Riser Block/Console :- For raising the Self Centric SCV 125/225. Improved access for five-sided machining.

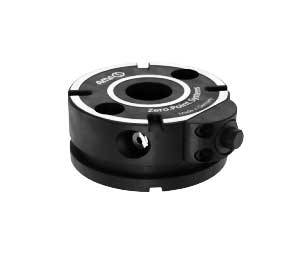

Zero Point System :- For Quick Clamping and alignment of Vice. Allows you to clamp parts with accuracy, speed, ease and flexibility using retractable nipples and fast-closing clamps.

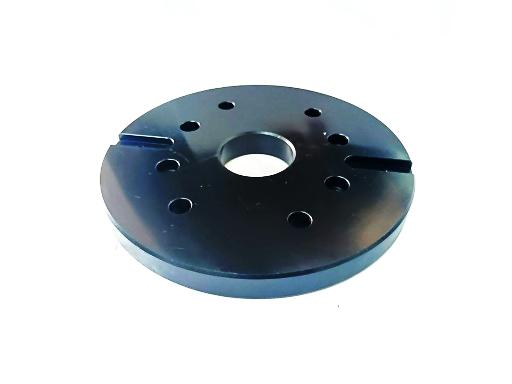

Adaptor Plate :- Adaptor plate for 4th and 5th axis Rotating axis – Diameter 160 mm and 200 mm

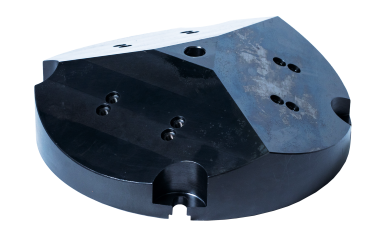

Pyramid :- The pyramid work holding bundles facilitate clamping of three individual components in one fixture and completed in a single setup.
