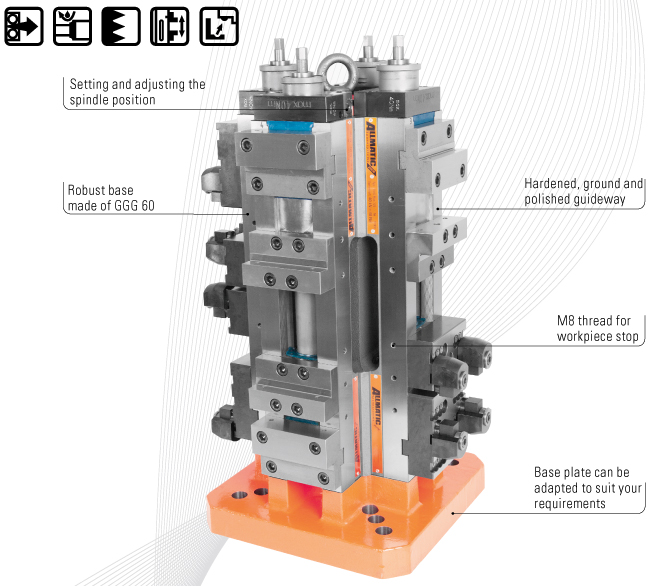

Scope of application:

• Modular clamping system for horizontal machining centres

Product features:

• Base gives high stability and extreme accuracy for your machining
• Clamping force can be preset in 4 to 6 increments At most, 2 revolutions are required to reach the max. clamping force
• Preselectable and reproducible clamping forces enable the workpiece position to be repeated within a tolerance of less than 0.01 mm
• Individual adaptation to your machine (pallet, traverses and workpieces) is possible
• 8 clamping points permit 3-sided machining

Scope of supply:

• Monobloc with step jaws
• 1 hand crank
• Socket screw wrench
