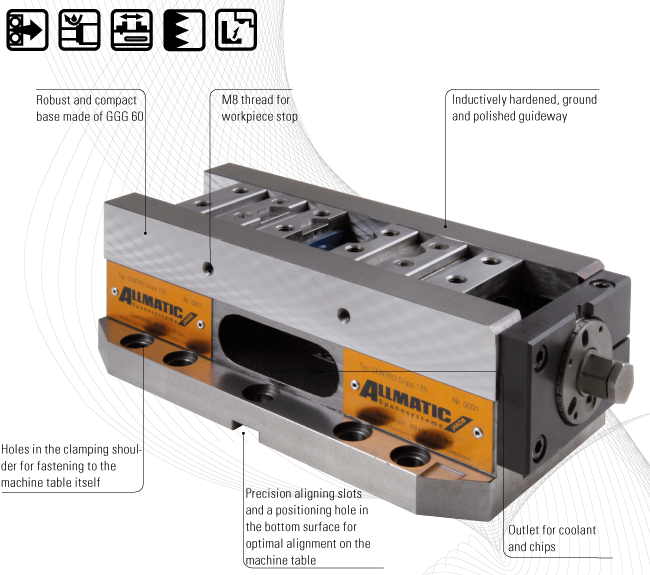

Product features:

• The centre is adjustable. The position of the workpiece stays within set boundaries
• Repeating accuracy ± 1/100 mm for angled workpieces
• Guides ground, polished and paired
• Clamping range presetting via adjustment of clamping jaws along transverse slots of spindle nuts
• Moulding and clamping in a single step, directly in the work area – no auxiliary aids required
• Use with a torque wrench – max. 70 Nm
• Fully enclosed and maintenance-free high-pressure spindle – high chip protection, minimum cleaning requirements, constant clamping forces up to 40 kN
• Standard with mounting holes for zero point clamping system, Pitch 200

Scope of application:

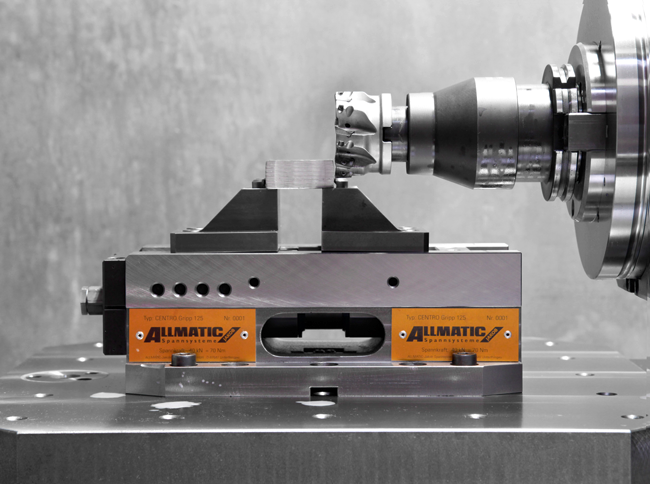

• Horizontal installation – suitable for vertical CNC milling machines
• Ideal for use on five-axis machining centres due to its compact design
• Depending on the clamping jaws, both pre-machined workpieces and unmachined parts can be clamped
• With support jaws, unmachined parts with varying types of flame-cut and sawn materials and even complex castings can be clamped safely and economically. Suitable for materials of mechanical strength of up to approx. 1000 N/mm².

Scope of delivery:

• • 1 high-pressure vice without jaws
  • 2 combination wrenches
  • 6 fastening screws, M12 x 35 mm
  • 2 socket screw wrenches

• 1 wrench socket
  (Please order clamping jaws separately)
