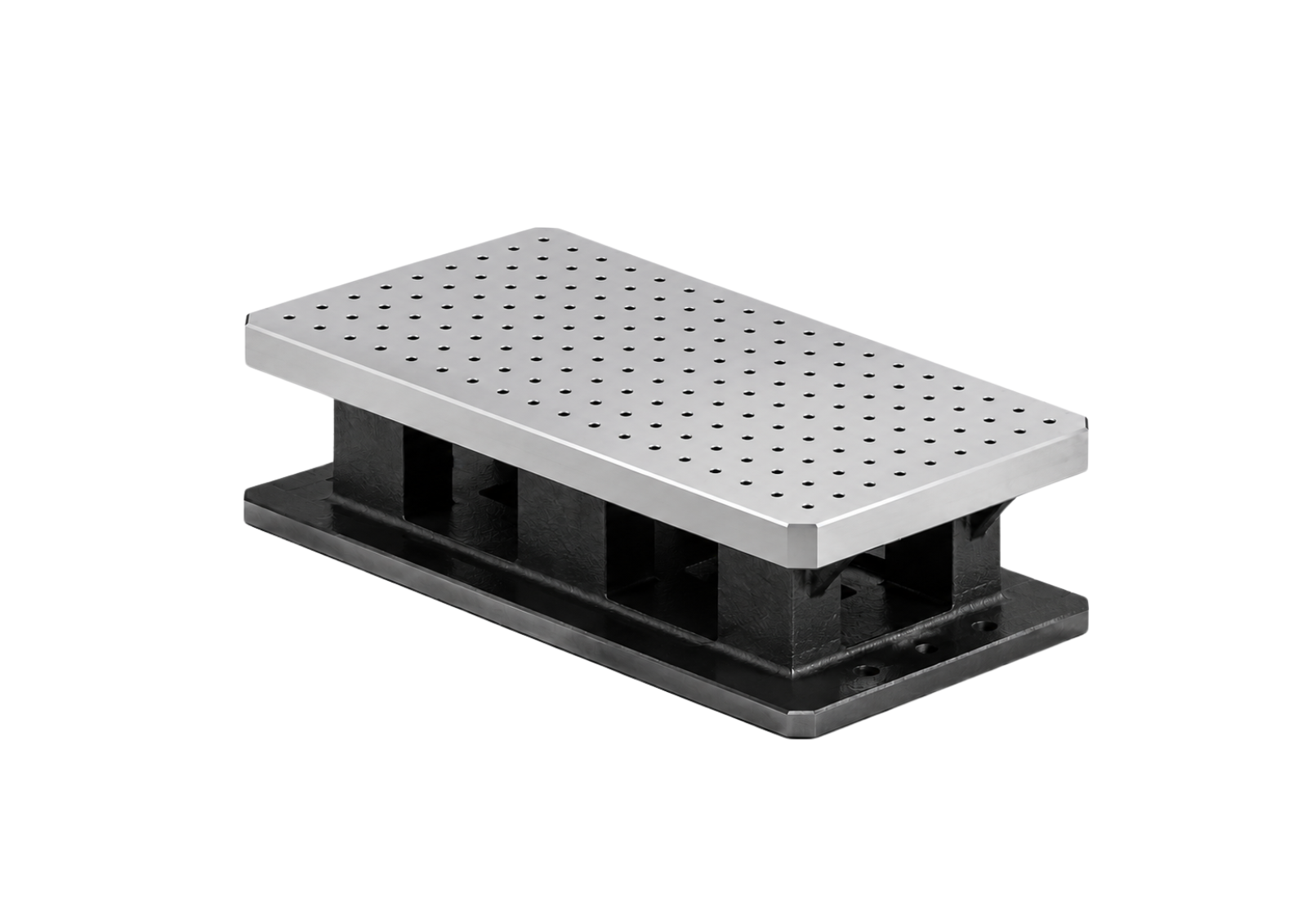

Riser-Table Grid Hole
Scope of Application
- Vertical machine centre.
- Horizontal Machining Centre.
Product Features
- Material: Cast iron GG30(DIN)
- Heat Treated Normalized
- Alignment bushing.
- Threaded insert.
- MTP hole spacing:50+0.02.
- Grid holes available in M12 & M16.
- Easily adapts to standardized jig components.

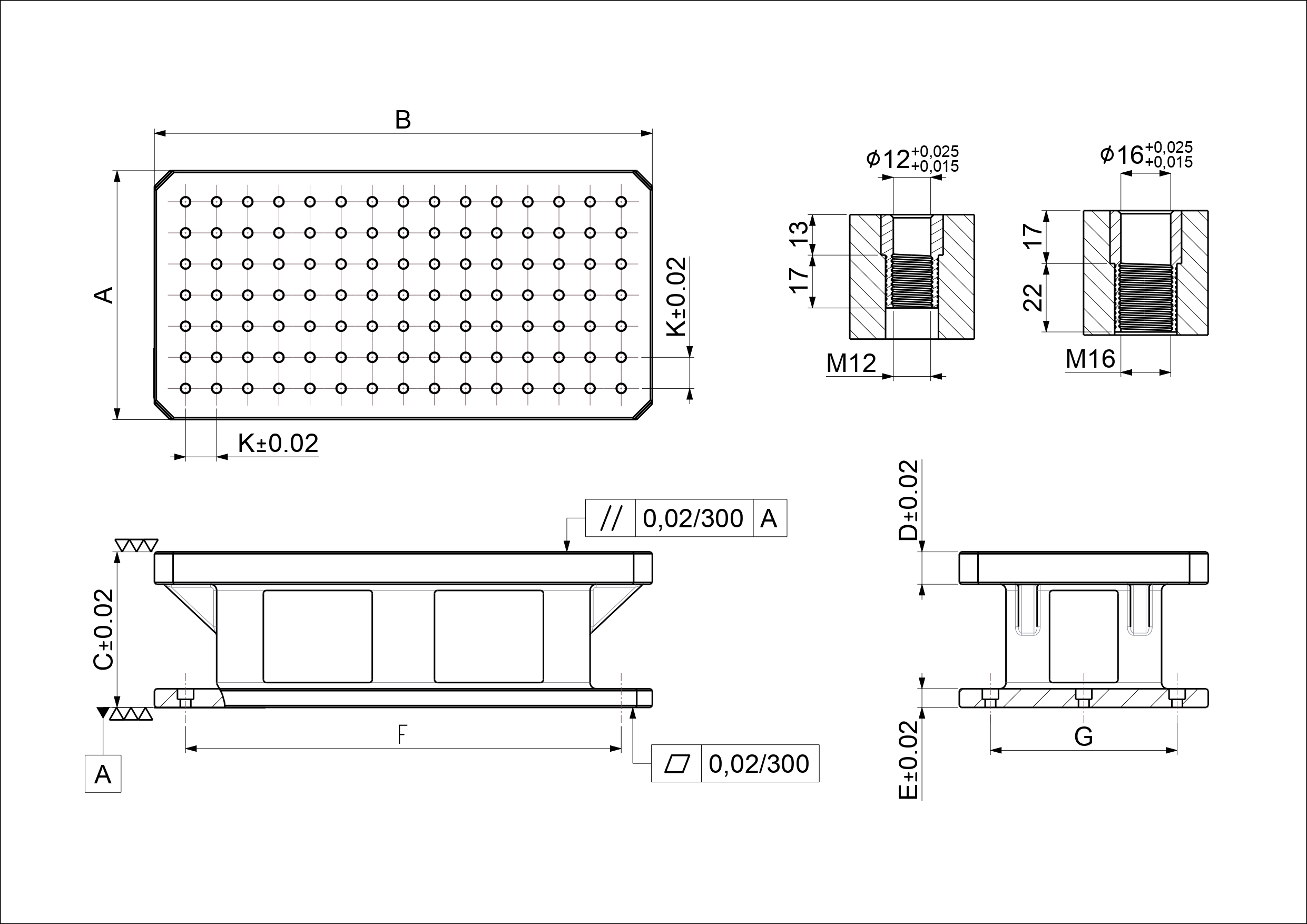

| Article Number | MODEL | A | B | C | D | E | F | G | T | T | K | WT.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/RISTL/RTGRDNP001 | RTG/SQ/400400/250-12 | 400 | 400 | 250 | 52 | 30 | As Required | As Required | ∅12 | M12 | 50 | 94 | Download | Download |
| FG/WH/RISTL/RTGRDNP002 | RTG/SQ/500500/250-12 | 500 | 500 | 250 | 52 | 30 | As Required | As Required | ∅12 | M12 | 50 | 102 | Download | Download |
| FG/WH/RISTL/RTGRDNP003 | RTG/RT/600300/250-12 | 600 | 300 | 250 | 52 | 30 | As Required | As Required | ∅12 | M12 | 50 | 135 | Download | Download |
| FG/WH/RISTL/RTGRDNP004 | RTG/RT/800400/250-12 | 800 | 400 | 250 | 52 | 30 | As Required | As Required | ∅12 | M12 | 50 | 233 | Download | Download |
| FG/WH/RISTL/RTGRDNP005 | RTG/RT/1000500/250-12 | 1000 | 500 | 250 | 52 | 30 | As Required | As Required | ∅12 | M12 | 50 | 382 | Download | Download |
| FG/WH/RISTL/RTG16NP001 | RTG/SQ/400400/250-16 | 400 | 400 | 250 | 52 | 30 | As Required | As Required | ∅16 | M16 | 50 | 90 | Download | Download |
| FG/WH/RISTL/RTG16NP002 | RTG/SQ/500500/250-16 | 500 | 500 | 250 | 52 | 30 | As Required | As Required | ∅16 | M16 | 50 | 98 | Download | Download |
| FG/WH/RISTL/RTG16NP003 | RTG/RT/600300/250-16 | 600 | 300 | 250 | 52 | 30 | As Required | As Required | ∅16 | M16 | 50 | 130 | Download | Download |
| FG/WH/RISTL/RTG16NP004 | RTG/RT/800400/250-16 | 800 | 400 | 250 | 52 | 30 | As Required | As Required | ∅16 | M16 | 50 | 230 | Download | Download |
| FG/WH/RISTL/RTG16NP005 | RTG/RT/1000500/250-16 | 1000 | 500 | 250 | 52 | 30 | As Required | As Required | ∅16 | M16 | 50 | 378 | Download | Download |
