PRODUCTS

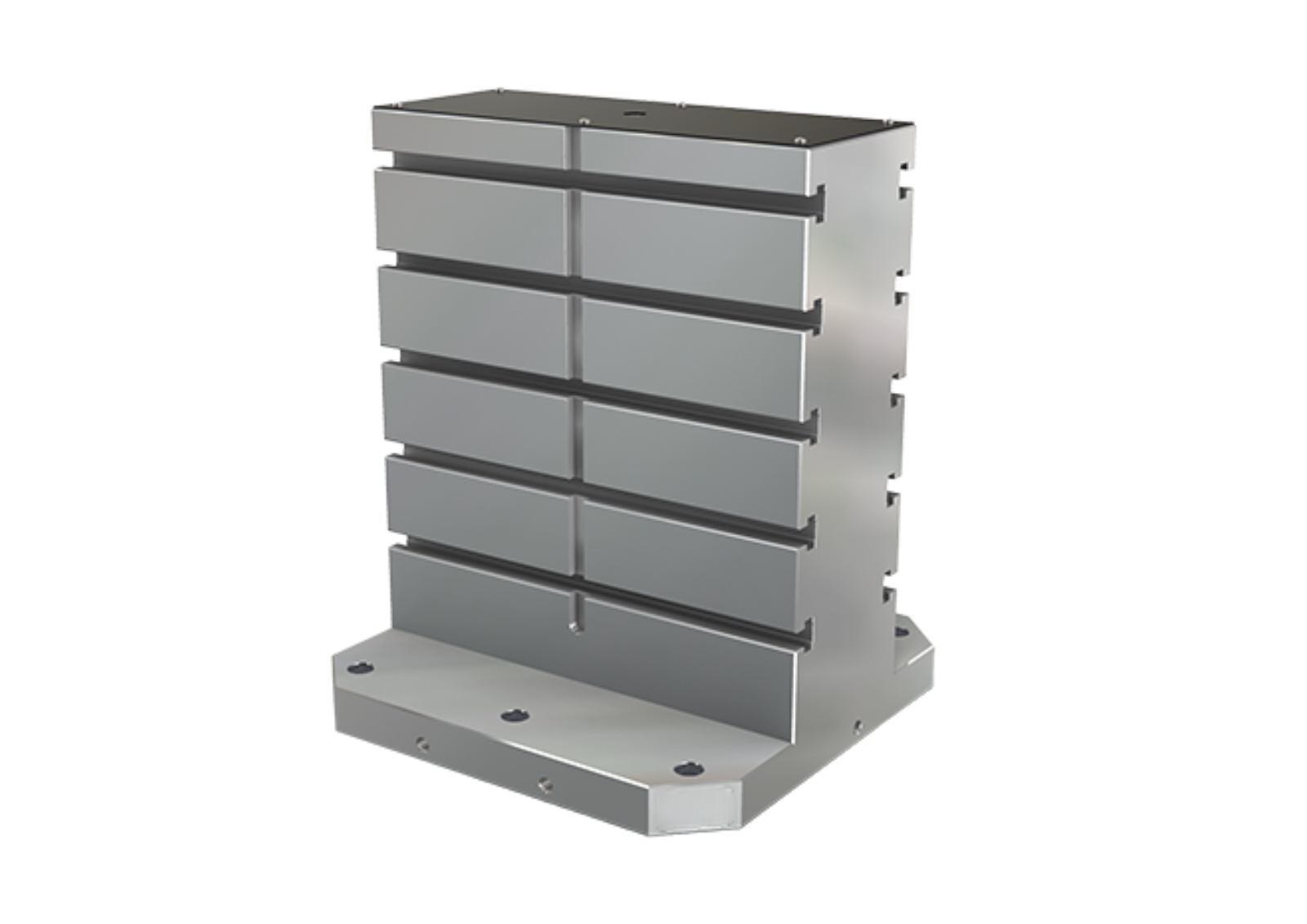

Double Sided Clamping Column –T-Slot
Scope of Application
- Horizontal Machining Centre.
Product Features
- Material: Cast iron GG30(DIN)
- Heat Treated Normalized
- T-slot available in 14 & 18mm.
- T-slot running horizontally.
- key-way running vertically.
- Easily adapts to standardized jig components.
- Eye bolt & top cover included.

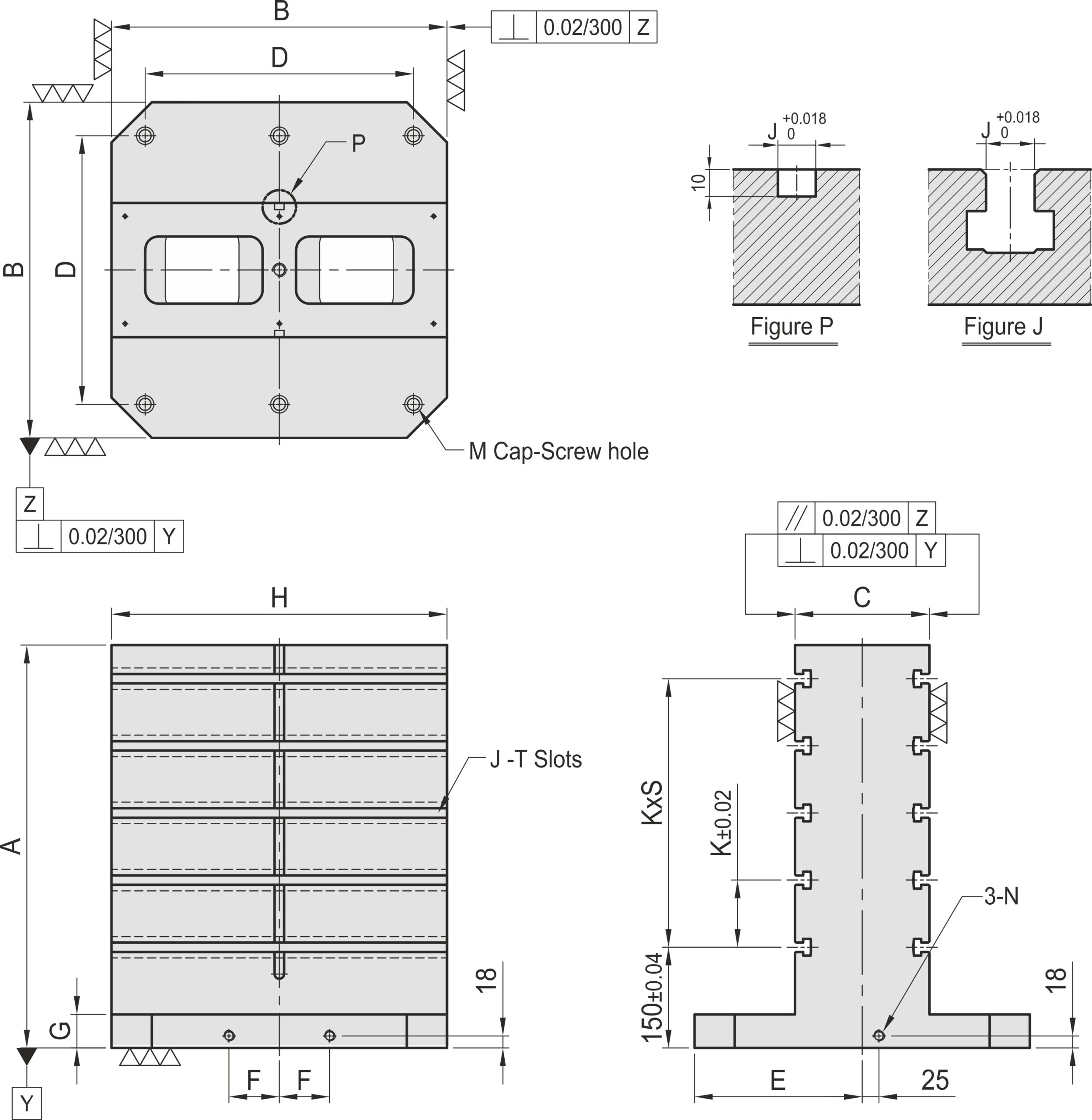

| Article No. | Model | A | B | C | D | E | F | G | M | N | H | J | K | S | Mounting Hole | Wt.Kg | 2D (PDF) | 3D (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/TOMB/RCTSLNP001 | TST/RT/150400-14 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | M16 | M16 | 400 | 14 | 100 | 3 | 4 | 170 | Download | Download |
| FG/WH/TOMB/RCTSLNP002 | TST/RT/150400-14 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | M16 | M16 | 400 | 14 | 100 | 3 | 4 | 220 | File Pending | File Pending |
| FG/WH/TOMB/RCTSLNP003 | TST/RT/200500-14 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | M16 | M16 | 500 | 14 | 100 | 4 | 8 | 290 | Download | Download |
| FG/WH/TOMB/RCTSLNP004 | TST/RT/250630-14 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | M16 | M16 | 630 | 14 | 125 | 4 | 8 | 440 | Download | Download |
| FG/WH/TOMB/RCT18NP001 | TST/RT/150400-18 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | M16 | M16 | 400 | 18 | 100 | 3 | 4 | 165 | Download | Download |
| FG/WH/TOMB/RCT18NP002 | TST/RT/150400-18 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | M16 | M16 | 400 | 18 | 100 | 3 | 4 | 210 | File Pneding | FILE Pending |
| FG/WH/TOMB/RCT18NP003 | TST/RT/200500-18 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | M16 | M16 | 500 | 18 | 100 | 4 | 8 | 280 | Download | Download |
| FG/WH/TOMB/RCT18NP004 | TST/RT/250630-18 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | M16 | M16 | 630 | 18 | 125 | 4 | 8 | 430 | Download | Download |
