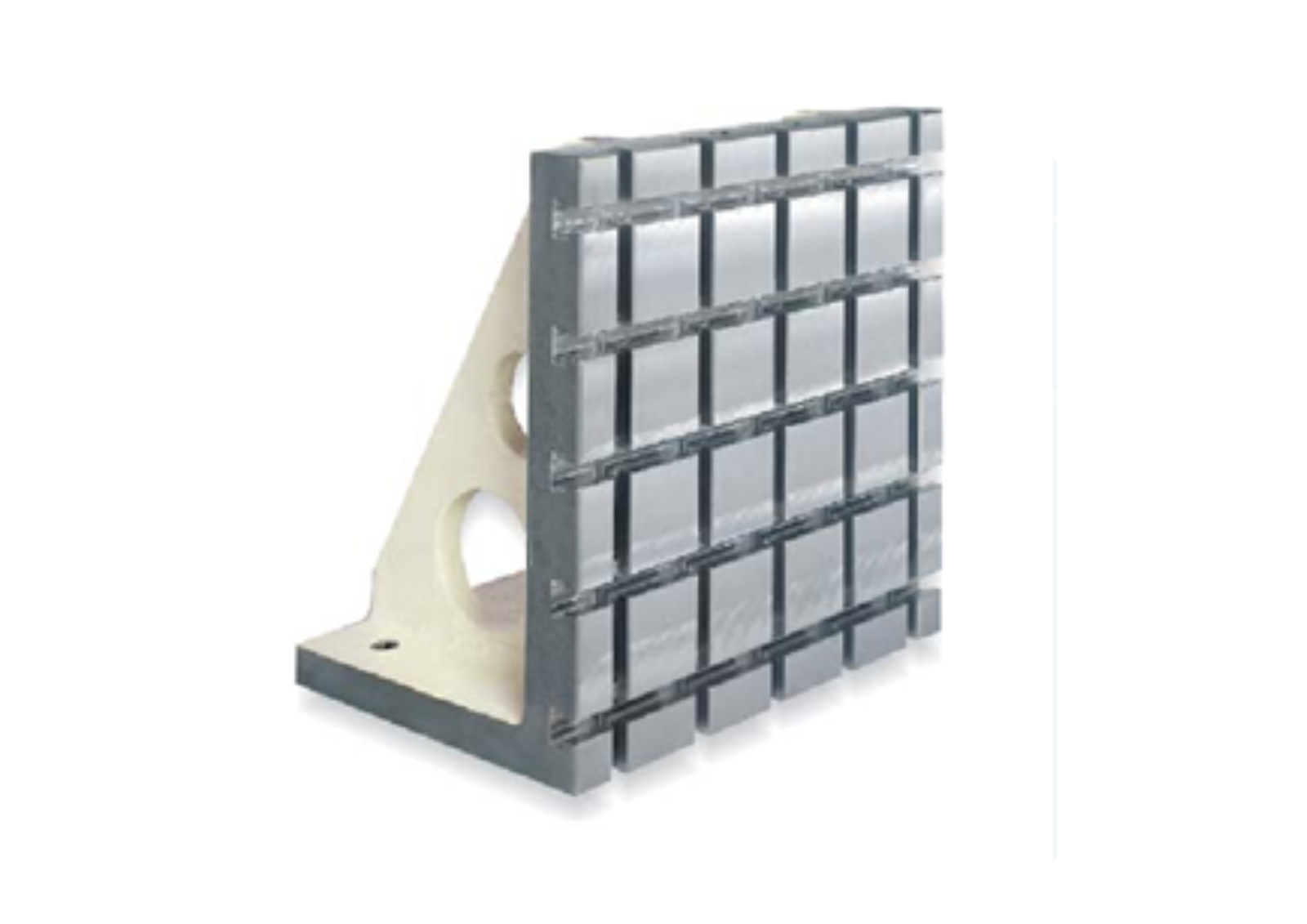

Angle Plate T-Slot
Scope of Application
- Horizontal machining canter.
Product Features
- Material: cast iron GG30(DIN)
- Heat Treated Normalized
- T-slot available in 14 & 18mm.
- T-slots running horizontally.
- Key-way running vertically.
- Easily adapts to standardized jig components.

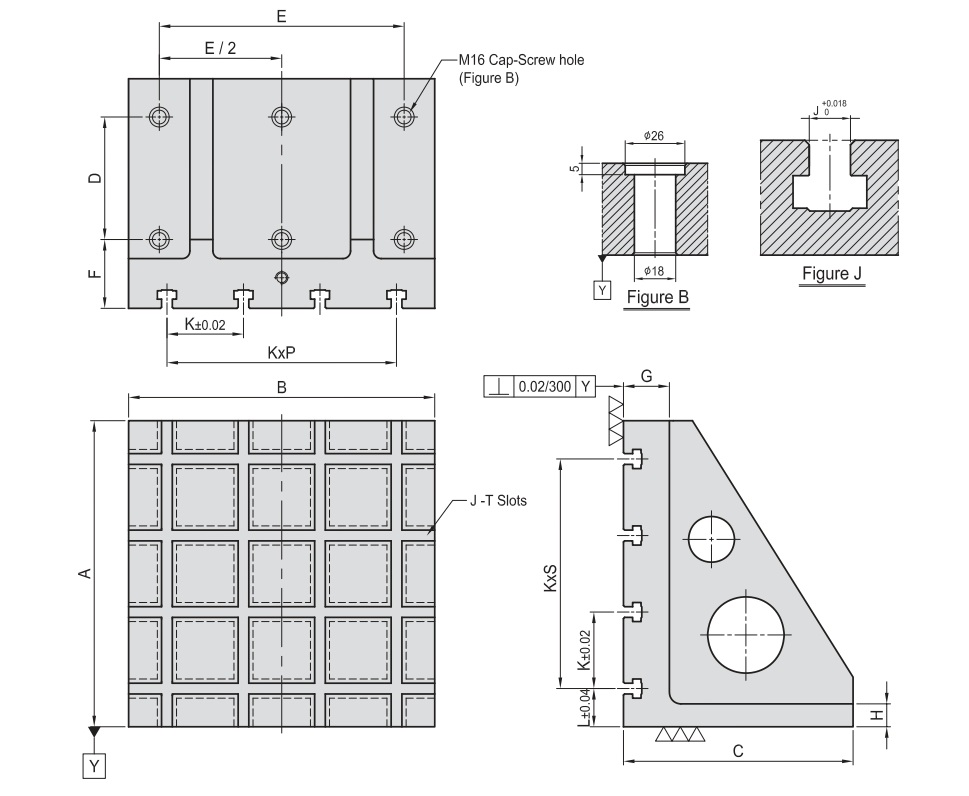

| Article No. | Model No. | A | B | C | D | E | F | G | H | J | K | L | P | S | Mounting Hole | WT.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/ANGPL/ANT14NP001 | APT/SQ/400400-14 | 400 | 400 | 300 | 160 | 320 | 90 | 40 | 30 | 14 | 100 | 50 | 3 | 3 | 6 | 101 | Download | Download |
| FG/WH/ANGPL/ANT14NP002 | APT/SQ/500500-14 | 500 | 500 | 350 | 200 | 400 | 90 | 50 | 35 | 14 | 100 | 50 | 4 | 4 | 6 | 170 | Download | Download |
| FG/WH/ANGPL/ANT14NP003 | APT/SQ/630630-14 | 630 | 630 | 450 | 250 | 500 | 100 | 50 | 40 | 14 | 125 | 65 | 4 | 4 | 6 | 295 | Download | Download |
| FG/WH/ANGPL/ANT14NP004 | APT/SQ/800800-14 | 800 | 800 | 550 | 320 | 640 | 115 | 50 | 45 | 14 | 150 | 100 | 4 | 4 | 6 | 566 | Download | Download |
| FG/WH/ANGPL/ANT18NP001 | APT/SQ/400400-18 | 400 | 400 | 300 | 160 | 320 | 90 | 40 | 30 | 18 | 100 | 50 | 3 | 3 | 6 | 96 | Download | Download |
| FG/WH/ANGPL/ANT18NP002 | APT/SQ/500500-18 | 500 | 500 | 350 | 200 | 400 | 90 | 50 | 35 | 18 | 100 | 50 | 4 | 4 | 6 | 162 | Download | Download |
| FG/WH/ANGPL/ANT18NP003 | APT/SQ/630630-18 | 630 | 630 | 450 | 250 | 500 | 100 | 50 | 40 | 18 | 125 | 65 | 4 | 4 | 6 | 285 | Download | Download |
| FG/WH/ANGPL/ANT18NP004 | APT/SQ/800800-18 | 800 | 800 | 550 | 320 | 640 | 115 | 50 | 45 | 18 | 150 | 100 | 4 | 4 | 6 | 550 | Download | Download |
