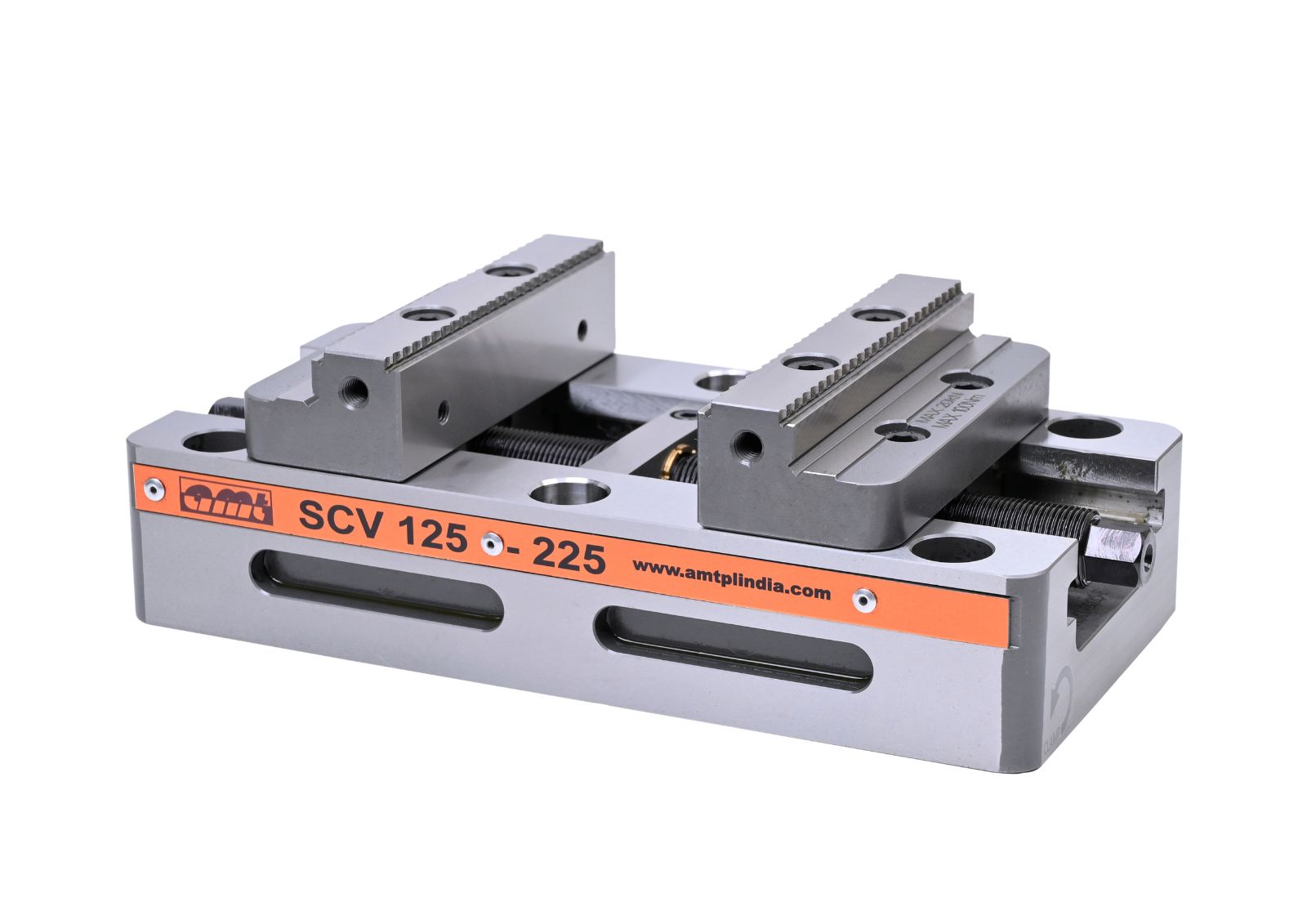

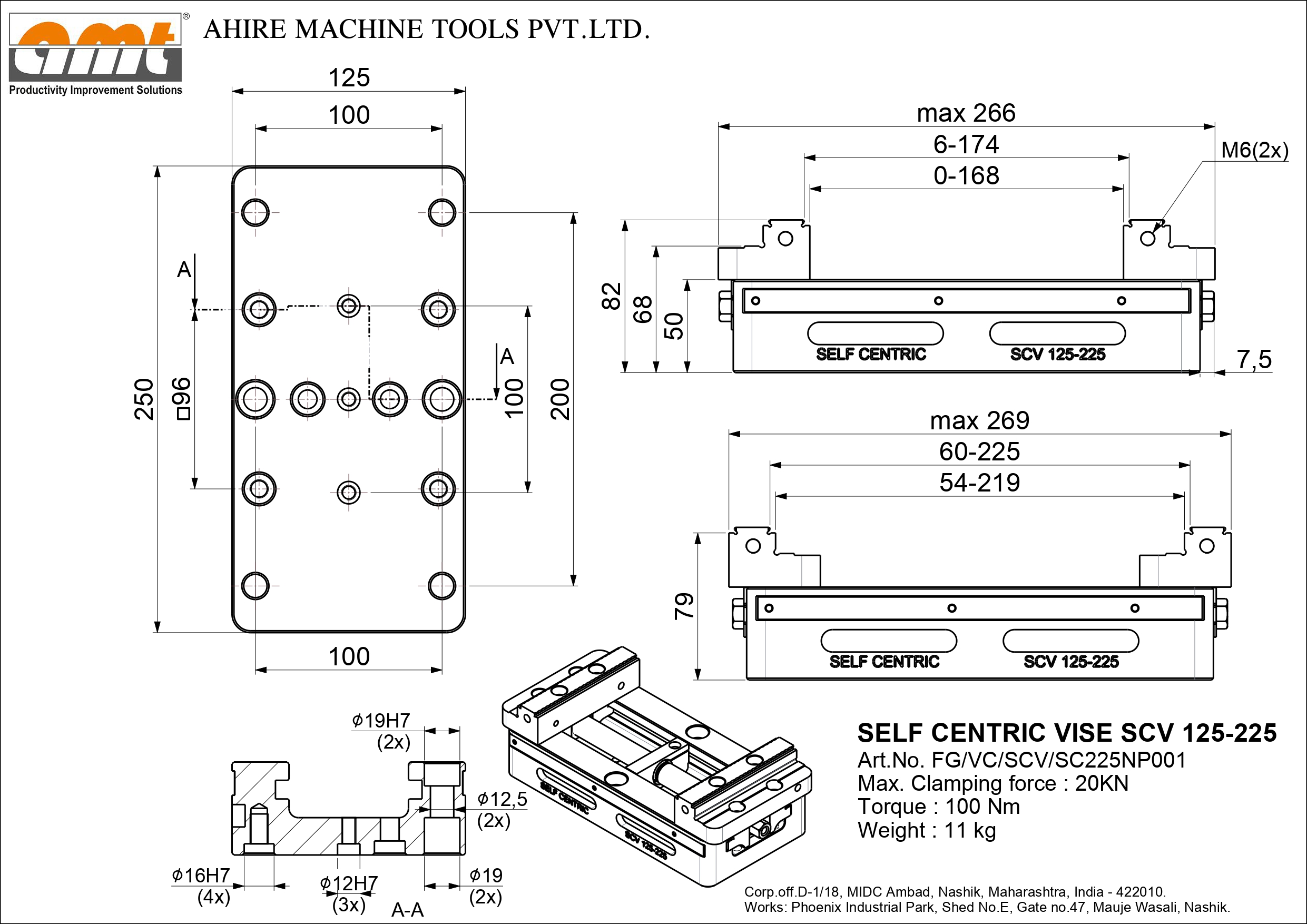

Self Centric Vise SCV 125-225
Article number:FG/VC/SCV/SC225NP001
Scope of Application
- Ideal for use on 3,4 & 5 axis machining centres due to its compact design.
- Horizontal installation –Suitable for Vertical Machining Centres.
- Vertical installation –Suitable for Horizontal Machining Centres.
Product Features
- Heavy duty high precise self-centric clamping vise with good repeatability.
- Compact design with best accessibility.
- Clamping force – 20 KN with 100Nm.
- Interface for ZPS clamping and mounting holes as standard.
- Spindle screw high hardness, wear, corrosion resistance.
- 4 Bolt jaw mounting for Increased Clamping Force.
- Provision of M6 holes for mounting additional Jaws.
- Serrated gripper teeth for superior bite with 45° Dovetail provision.
- Featuring a dowel pin for better accuracy in Jaws.
- High material savings due to minimal clamping edge requirements.
- 3mm gripp clamping is possible.
- Min. Clamping Range (Forward Jaw) – 0–168 mm
- Max. Clamping Range (Forward Jaw) – 6–174 mm
- Min. Clamping Range (Reversed Jaw) – 54–219 mm
- Max. Clamping Range (Reversed Jaw) – 60–225 mm
- Jaw Width – 125 mm
- Max. Torque – 100 Nm
- Max. Clamping Force – 20 kN
- Weight (Net) – 11 kg
- Self-Centric Vise 125-225 with Clamping Jaws – 1 Nos.
- Work Piece Stopper 125/160 – 1 Nos.
- Side Clamp 125/160 – 4 Nos.
- Ratchet with Socket – 1 Nos.
