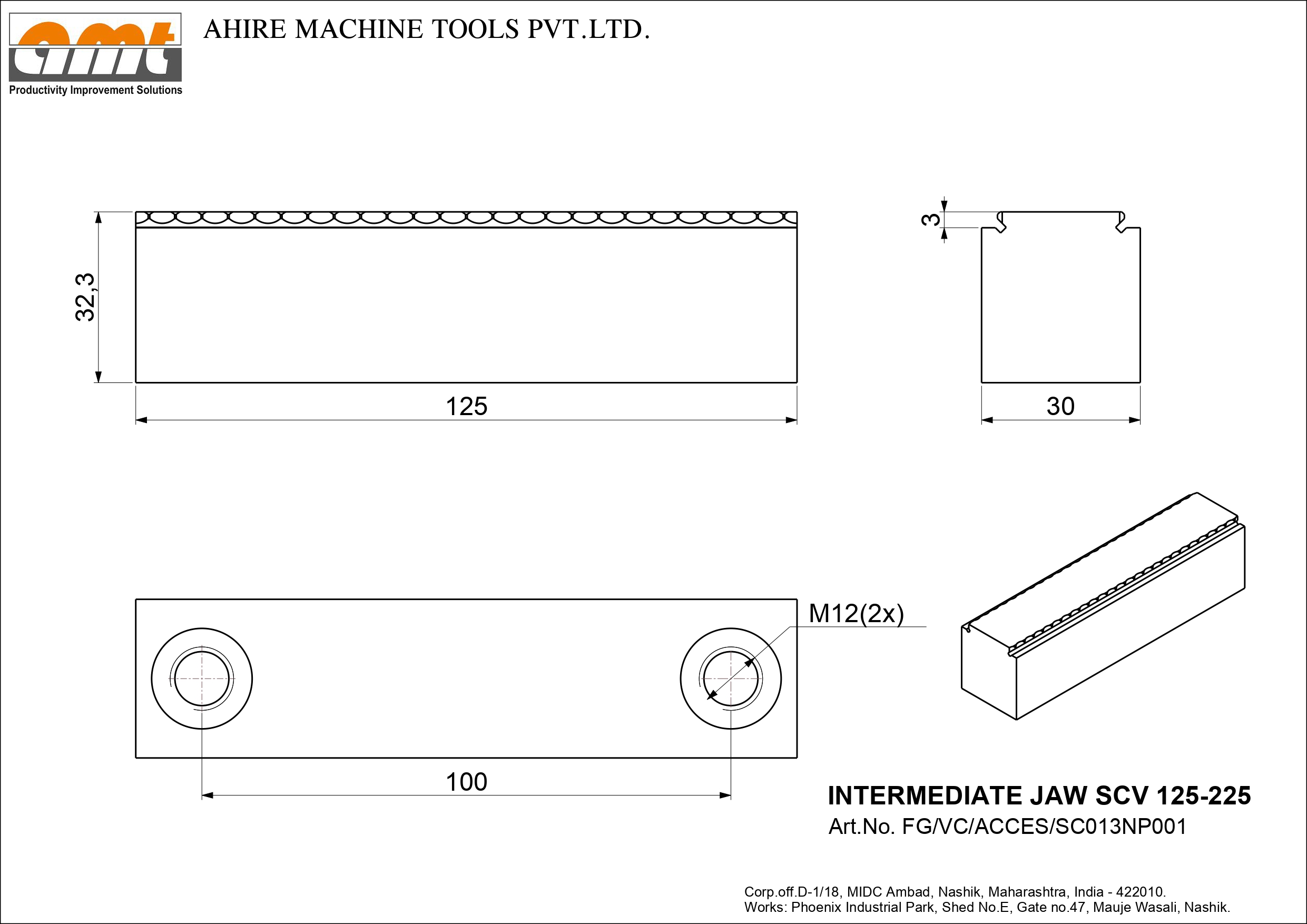

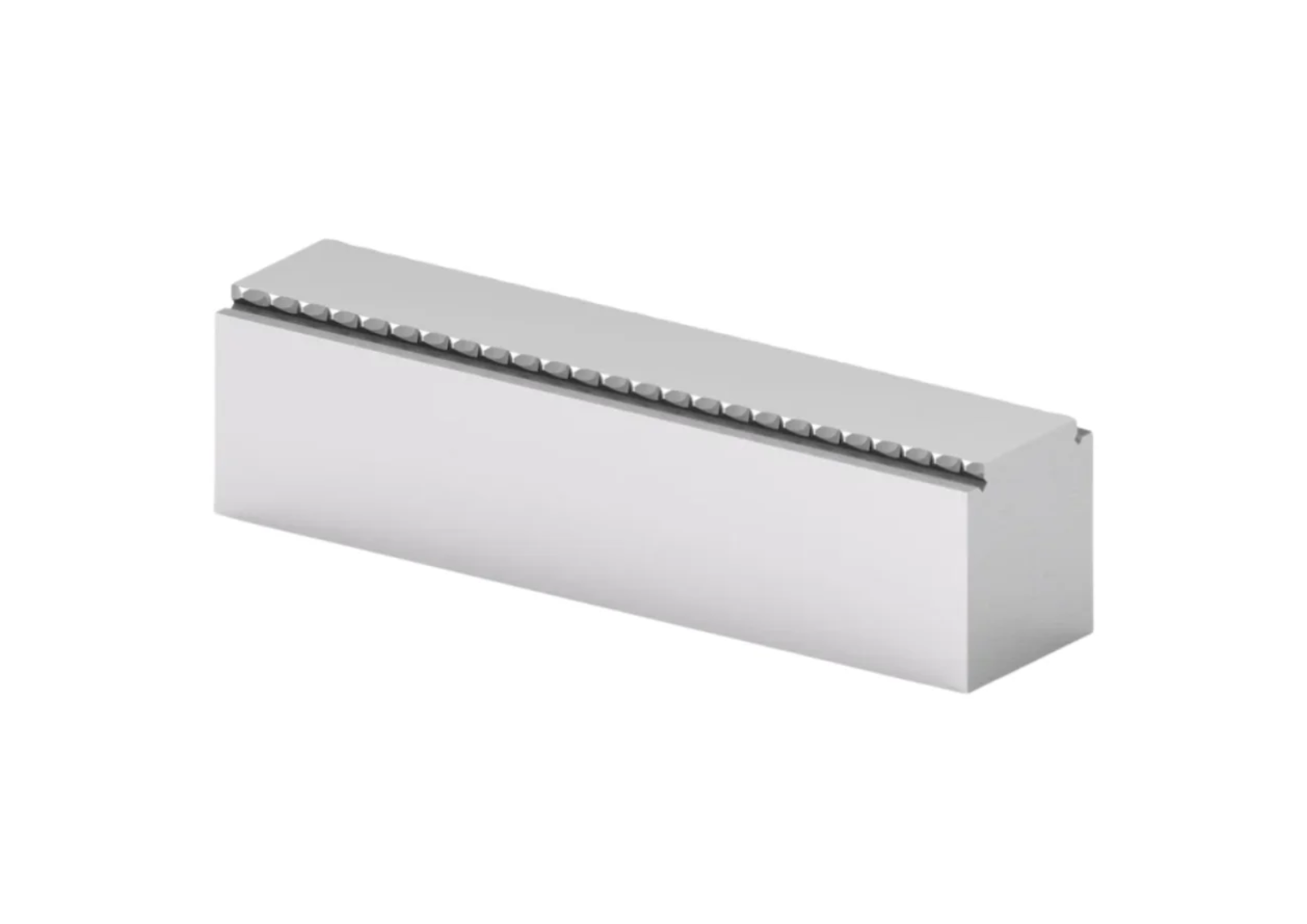

Intermediate Jaw SCV 125-225
Article number:FG/VC/ACCES/SC013NP001
- For clamping two work pieces simultaneously.
- Hardened ground and polished parallels.
- Case hardened 680 ± 50 HV30.
- Installation between both the jaws.
- Dimensions in mm – 125
- Dimensions in mm – 30
- Dimensions in mm – 32.3
- Intermediate Jaw SCV – 1 Nos
- Positioning Bush ∅19×28 mm – 2 Nos
- Allen Bolt M12x50 – 2 Nos
