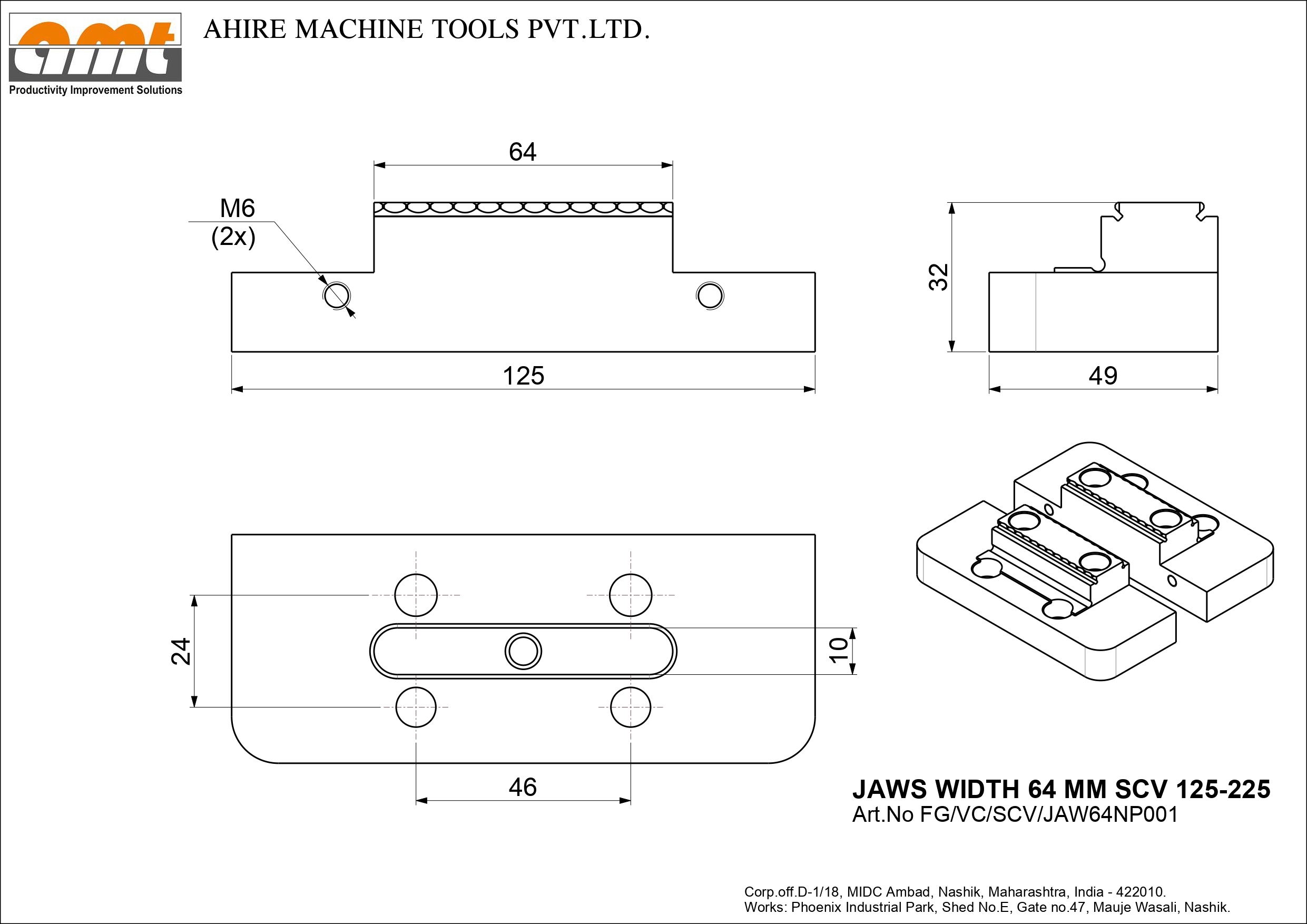

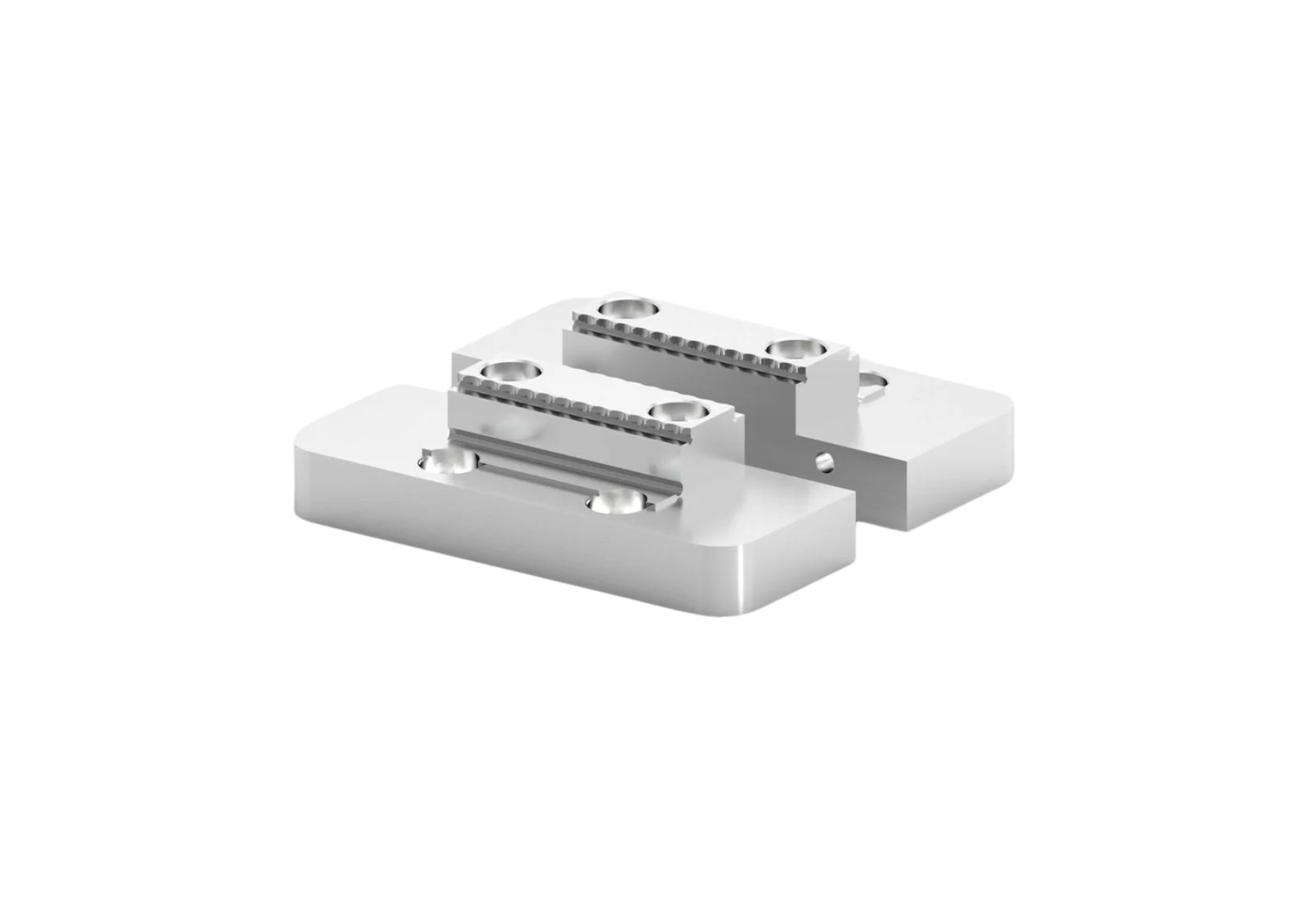

Jaws Width 64 MM SCV 125-225
Article number:FG/VC/SCV/JAW64NP001
- Material – Hardened Steel
- Hardened ground and polished parallels.
- Case Hardened 680 ± 50 HV30.
- Dimensions in mm – 125
- Dimensions in mm – 49
- Dimensions in mm – 64
- Jaws width 64 mm – 2 Nos
- Dowel Pin ∅6×10 mm – 2 Nos
- Allen Bolt M8x20 – 2 Nos
- Allen Bolt M8x35 – 2 Nos
- CAD
- Technical Information
- Operating Manual
