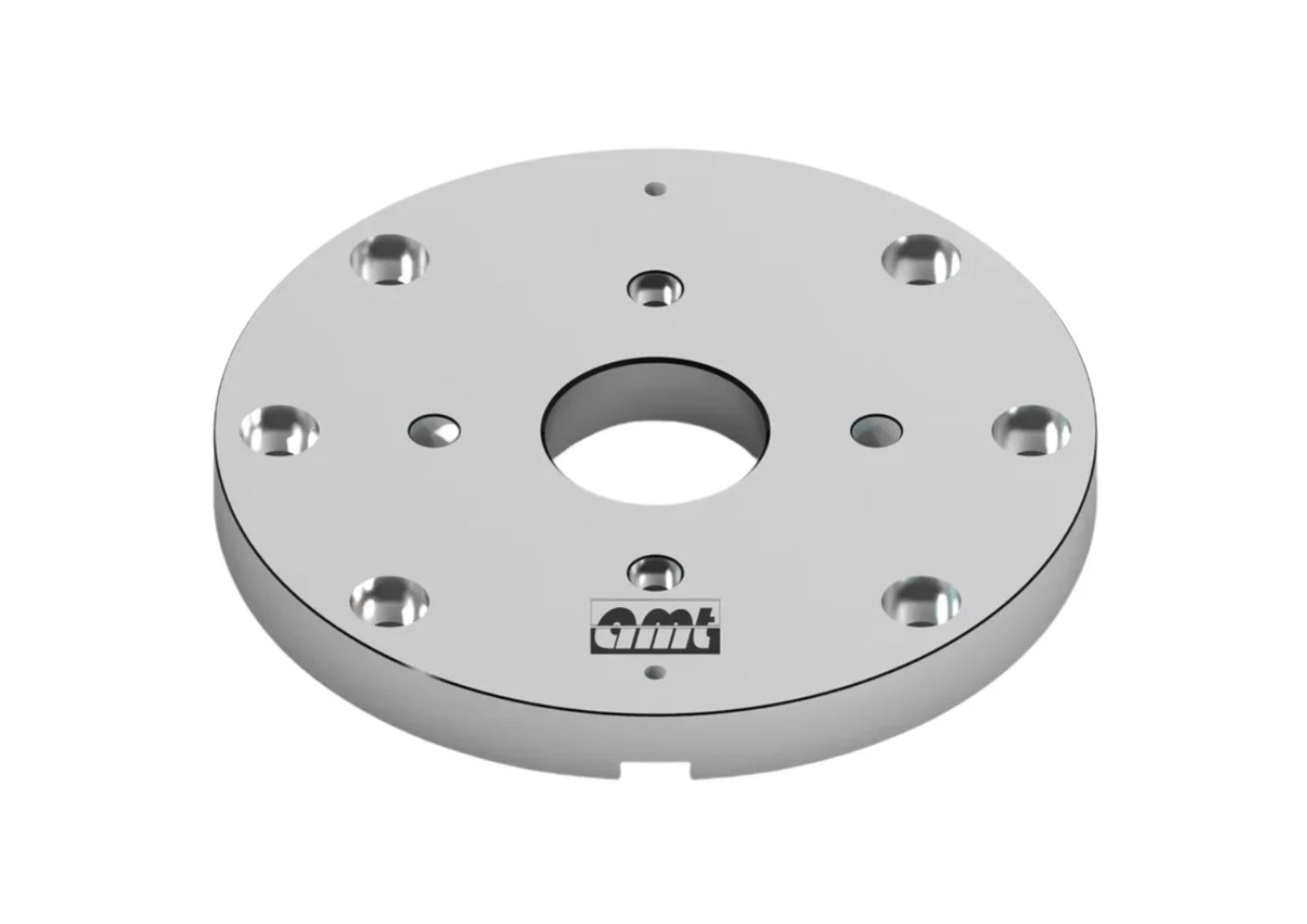

Adaptor Plate SCV 125-225
Article number:FG/VC/ACCES/AP225NP001
- Adaptor plate for 4th and 5th rotating axis – Diameter 160 mm and 200 mm.
- Hardened ground and polished parallels.
- Hardened 30–35 HRC.

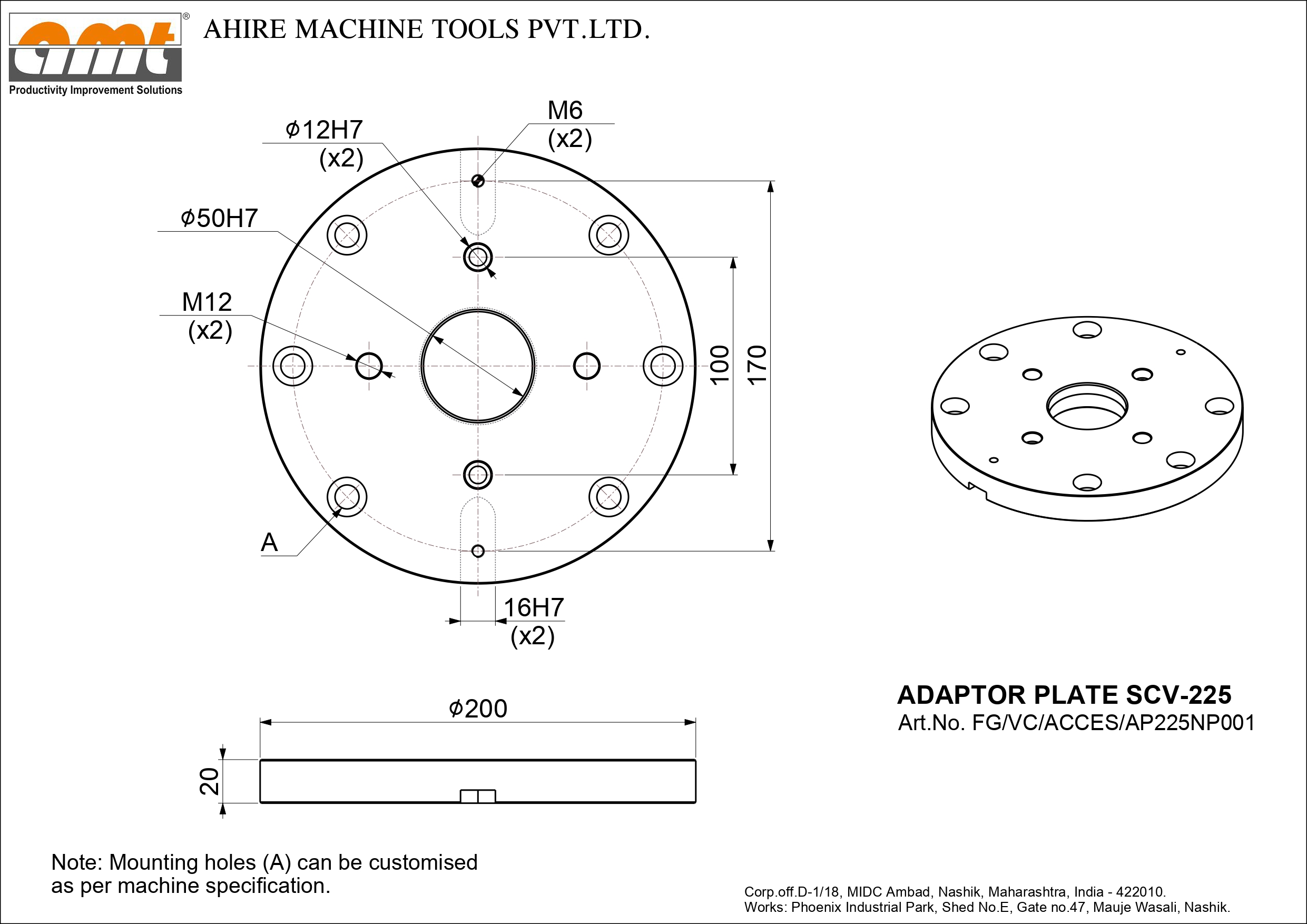

- Note: Mounting holes (A) can be customised as per machine specification.
- Dimensions in mm – ∅ 200
- Dimensions in mm – 20
- Adaptor Plate SCV 225 – 1 Nos
- Positioning Bush ∅12×12 mm – 1 Nos
- Tenon 20×16 – 2 Nos
- Allen Bolt M6x10 – 2 Nos
