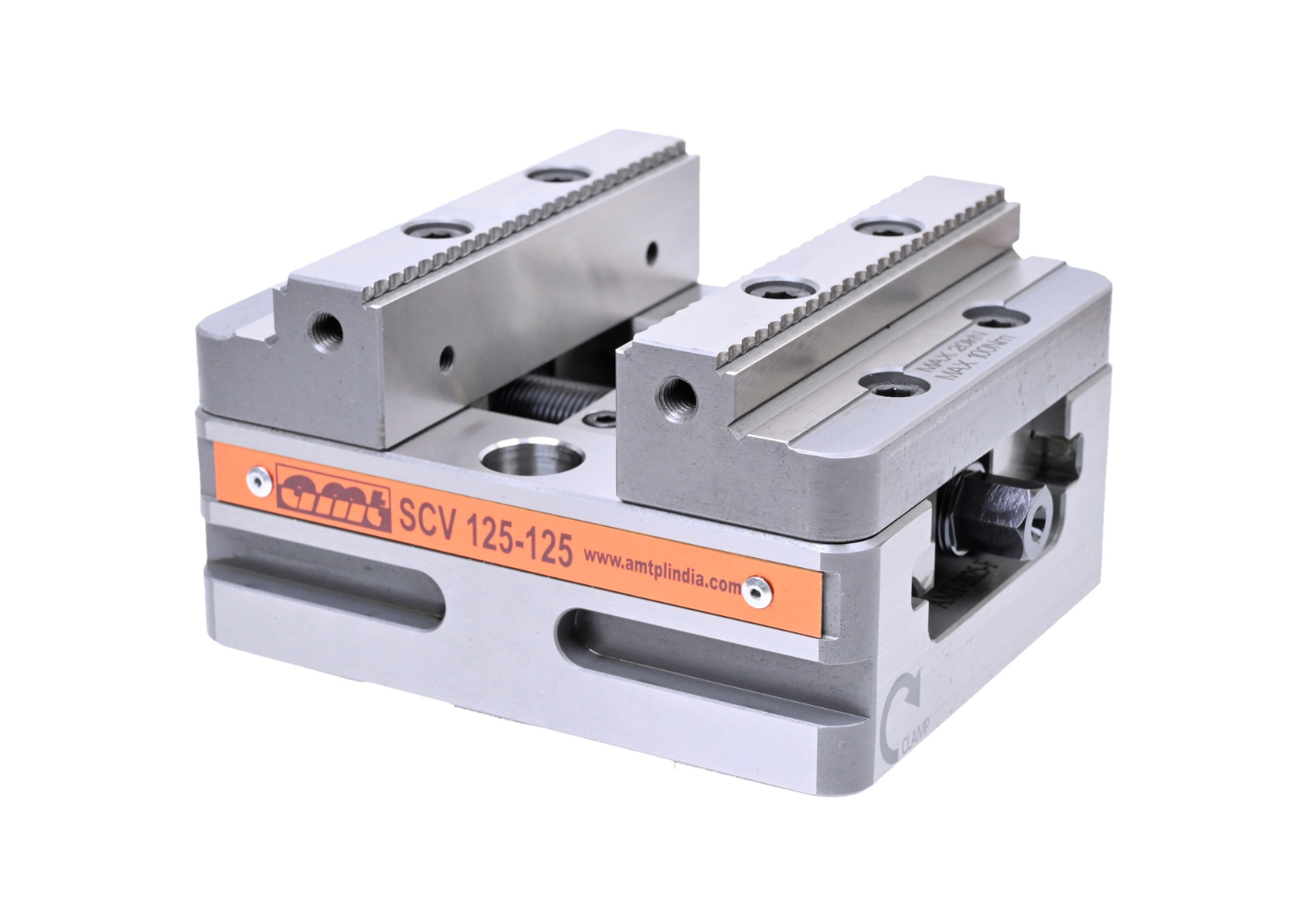

Self Centric Vise SCV 125-125
Article number:FG/VC/SCV/SC125NP001
Scope of Application
- Ideal for use on 3,4 & 5 axis machining centres due to its compact design.
- Horizontal installation –Suitable for Vertical Machining Centres.
- Vertical installation –Suitable for Horizontal Machining Centres.
Product Features
- Heavy duty high precise self-centric clamping vise with good repeatability.
- Compact design with best accessibility.
- Clamping force – 20 KN with 100 Nm.
- Interface for ZPS clamping and mounting holes as standard.
- Spindle screw high hardness, wear and corrosion resistance.
- 4 bolt jaw mounting for increased clamping force.
- Provision of M6 holes for mounting additional jaws.
- Serrated gripper teeth for superior bite with 45° dovetail provision.
- Featuring a dowel pin for better accuracy in jaws.
- High material savings due to minimal clamping edge requirements.
- 3 mm grip clamping is possible.
- Min. clamping range (Forward Jaw) in mm – 0-69
- Max. clamping range (Forward Jaw) in mm – 6-75
- Min. clamping range (Reversed Jaw) in mm – 54-119
- Max. clamping range (Reversed Jaw) in mm – 60-125
- Jaw width in mm – 125
- Max. torque in Nm – 100
- Max. clamping force in kN – 20
- Weight (net) in kg – 8
- Self-Centric vise 125-125 with Clamping Jaws – 1 Nos.
- Work Piece Stopper 125/160 – 1 Nos.
- Side Clamp 125/160 – 4 Nos.
- Ratchet with socket – 1 Nos.
- CAD

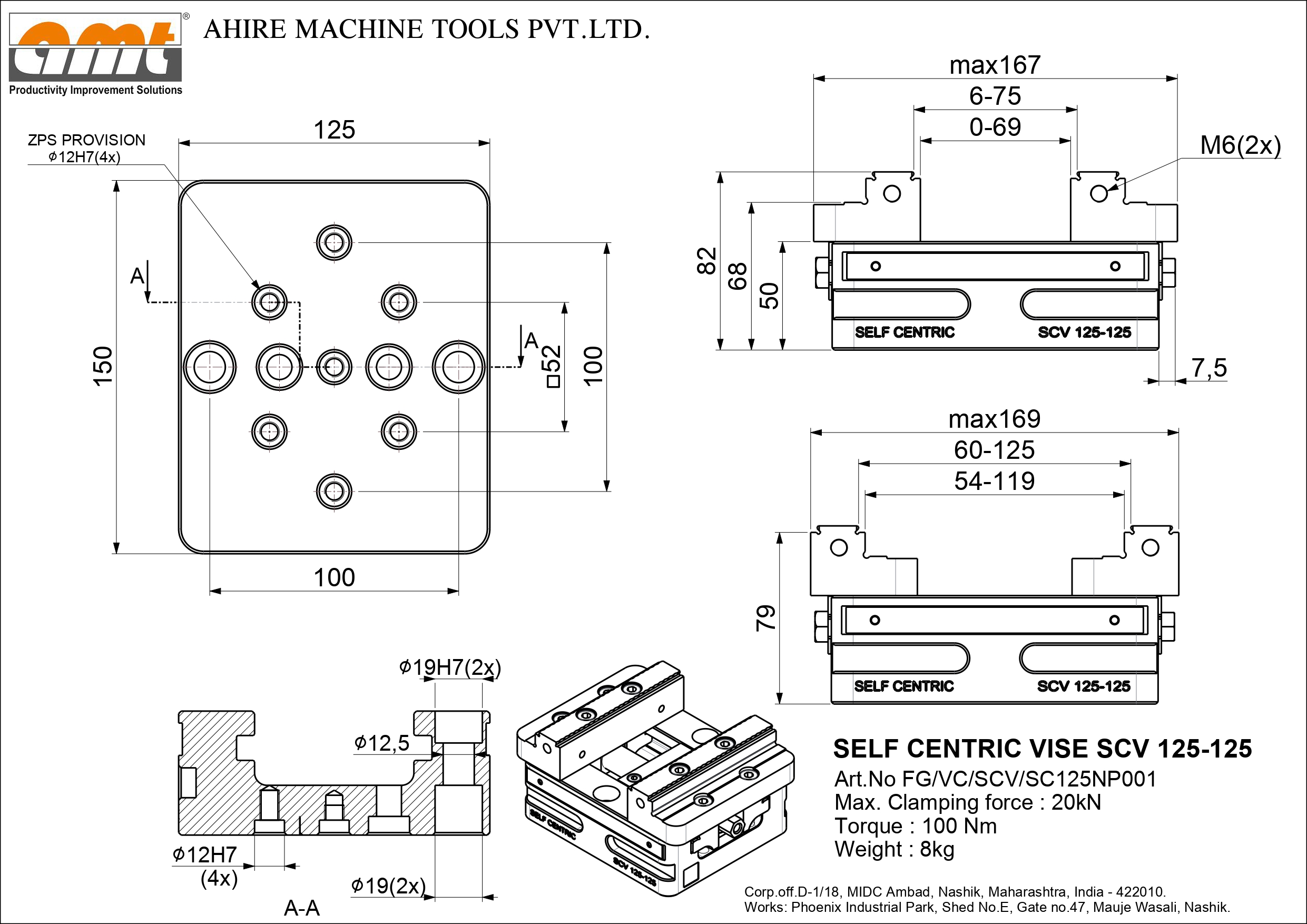

- Technical Information
