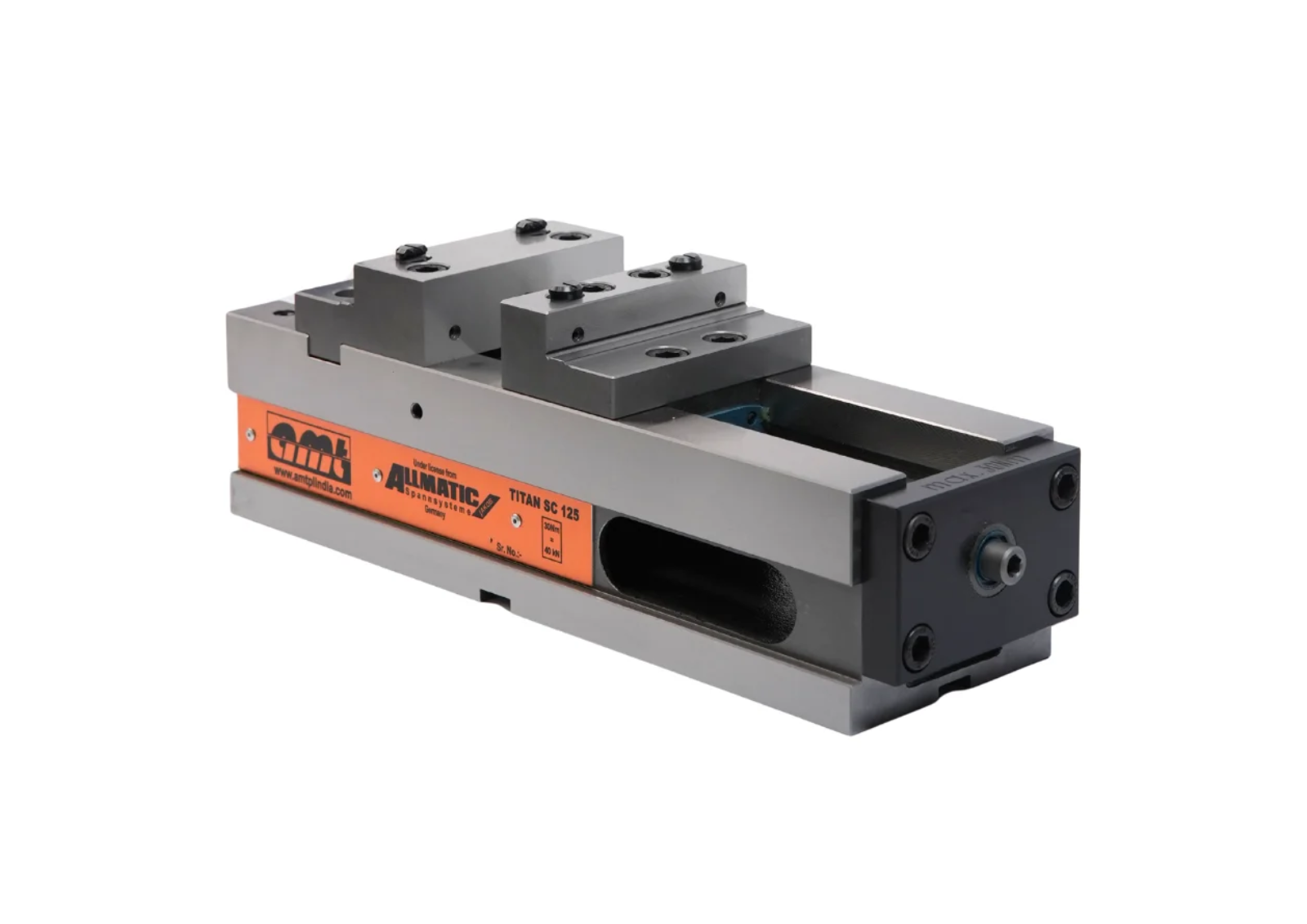

Gripp Mechanical Titan SC 125
Article number:FG/VC/HIPR/SC125NP001
Scope of Application
- The classical, universal clamp, for vertical 3 axis machining centres.
- Conventional clamping & grip clamping possible.
- Clamping of raw parts, burn and saw cuts by penetrating hardened and interchangeable grip elements into the work piece.
Product Features
- Alloy steel body & case hardened.
- With grounded jaws, the TITAN SC 125 has the precision which is necessary for machining work pieces.
- Fully enclosed gripp spindle for clamping and forming raw material.
- The high-pressure spindle allows you to, with a mechanical force amplifier (using the torque wrench), to work and clamp to a table.
- Stable GGG 60 body, grounded top and bottom.
- Double-sided M8 thread for work piece stoppage.
- Precise tracks in the grounded surface of the soles for optimum alignment on the machining table.
- Click-quick-change system for attaching jaws and click parallels.

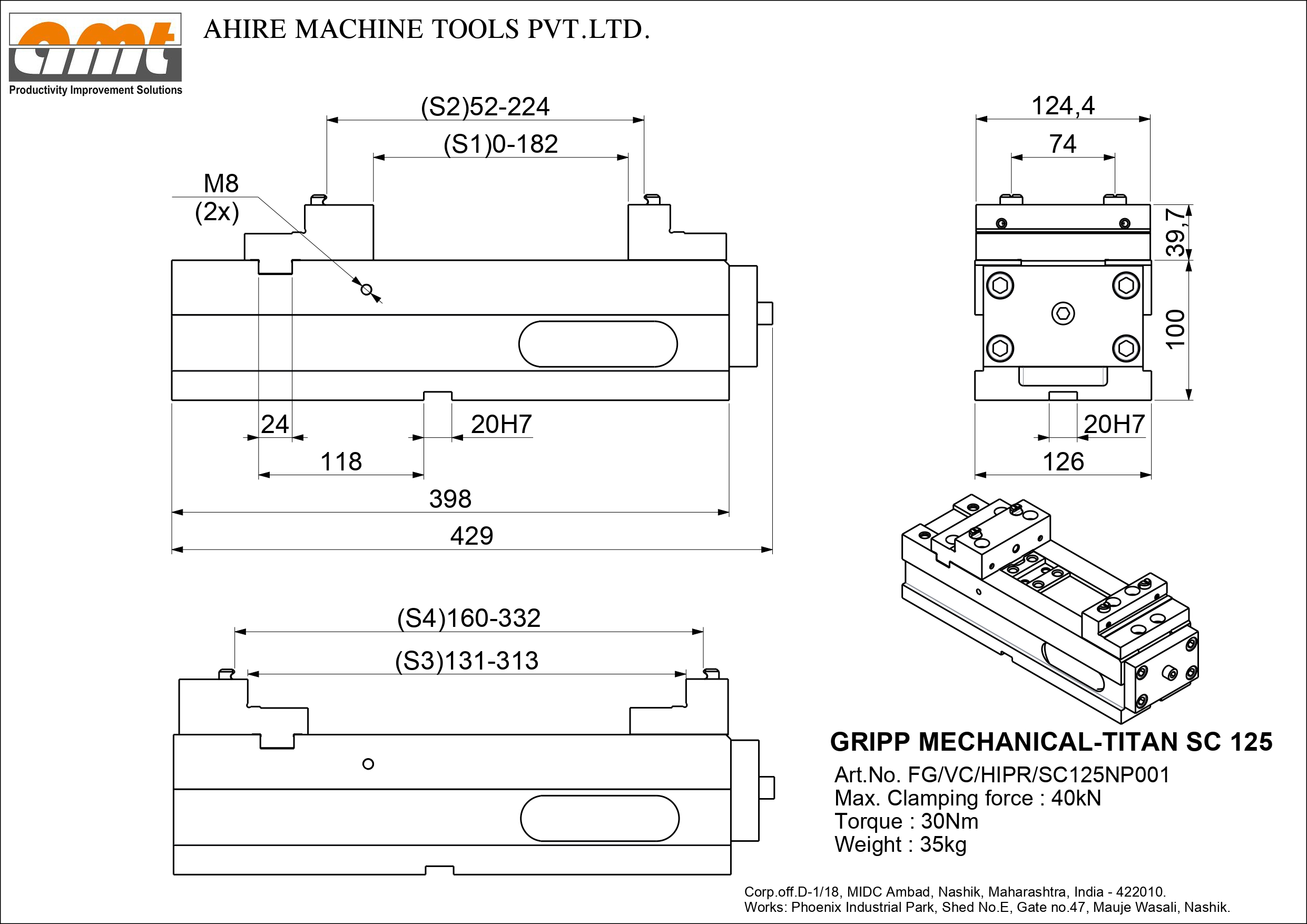

- Min. clamping range S1 in mm – 0-182
- Max. clamping range S2 in mm – 52-224
- Min. clamping range S2 round work piece in mm – ∅88-220
- Max. clamping range S3 in mm – 131-313
- Max. clamping range S4 in mm – 160-332
- Jaw width in mm – 125
- Max. torque in Nm – 30
- Max. clamping force in kN – 40
- Weight (net) in kg – 35
