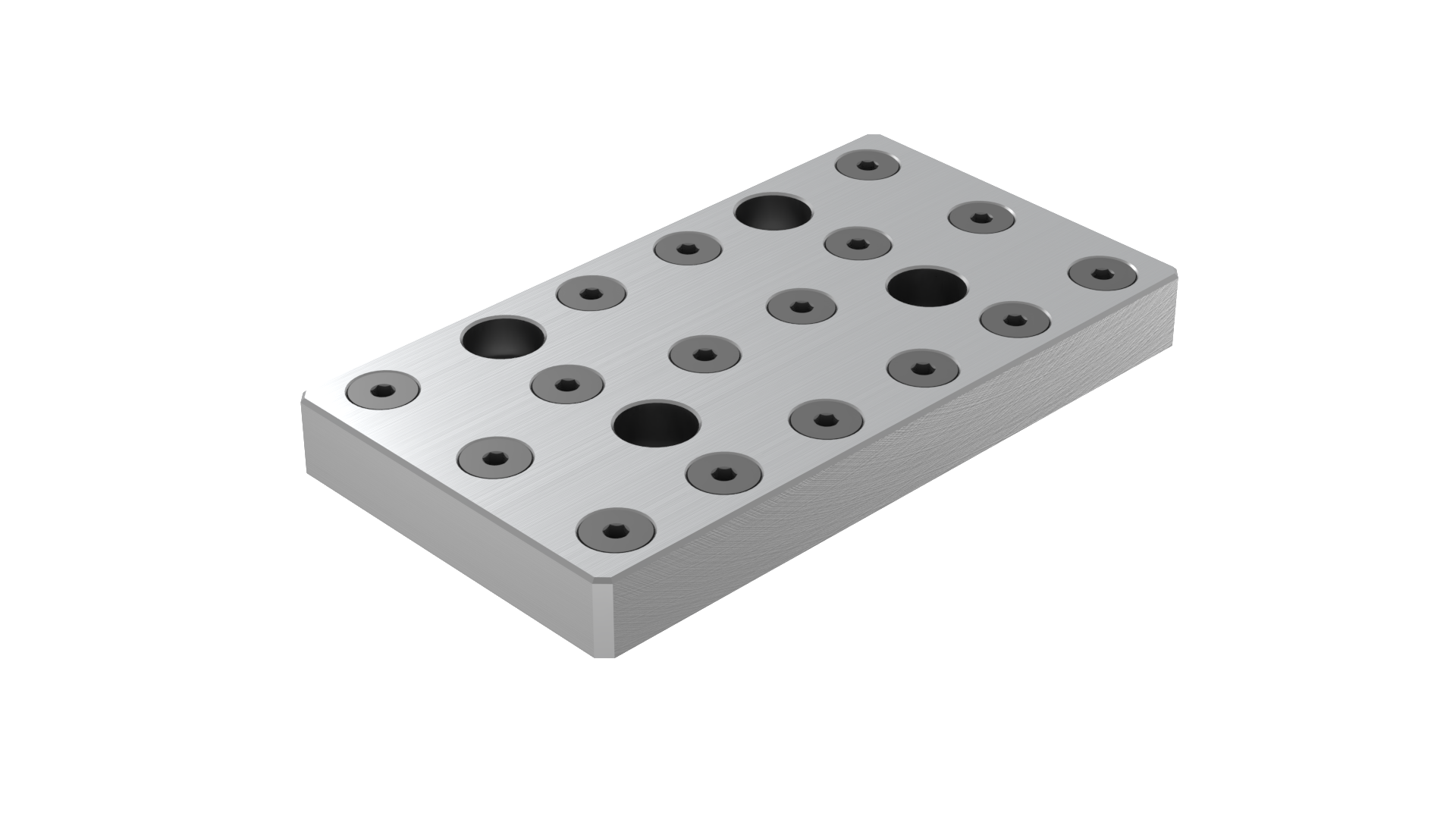

Basic Support Jaw Fixed
Article number:69121734005642
- Material hardened steel.
- Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2.
- Allows unhindered access to the work piece, even with short tools.
- For clamping small to medium-sized work pieces.
- Suitable for screw-in gripp-studs.
- First and second clamping steps are possible without changing jaws.
- Click system on the high side.

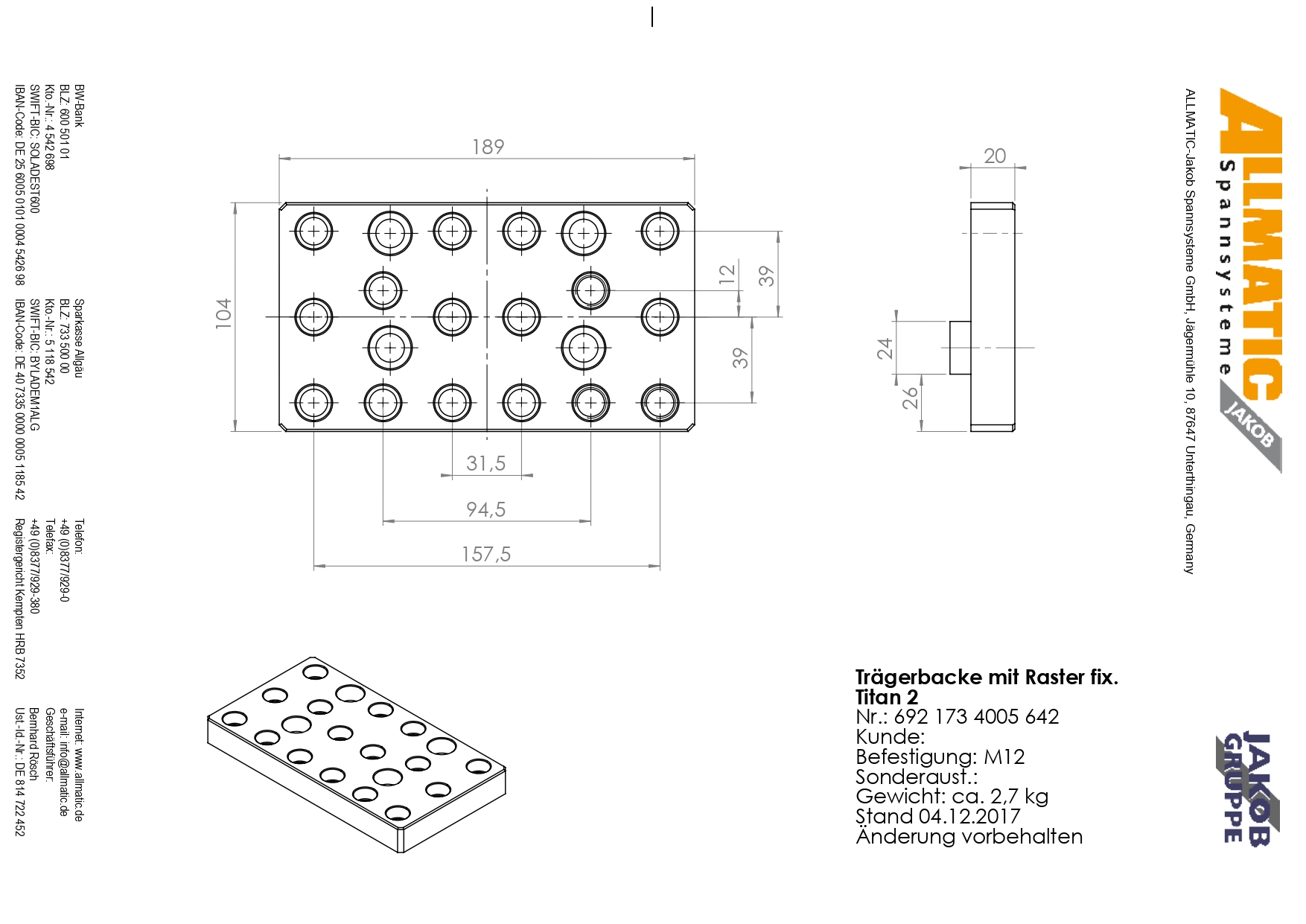

- CAD
- Technical Information
- Operating Manual
