Basic Support Jaw Movable Pivot
Article number:6921734072642
• Material hardened steel.
• Case-hardened and tempered 600 + 50 HV10; hardening depth = 0,2.
• Allows unhindered access to the work piece, even with short tools.
• For clamping small to medium-sized work pieces.
• Suitable for screw-in gripp-studs.
• First and second clamping steps are possible without changing jaws.
• Click system on the high side.

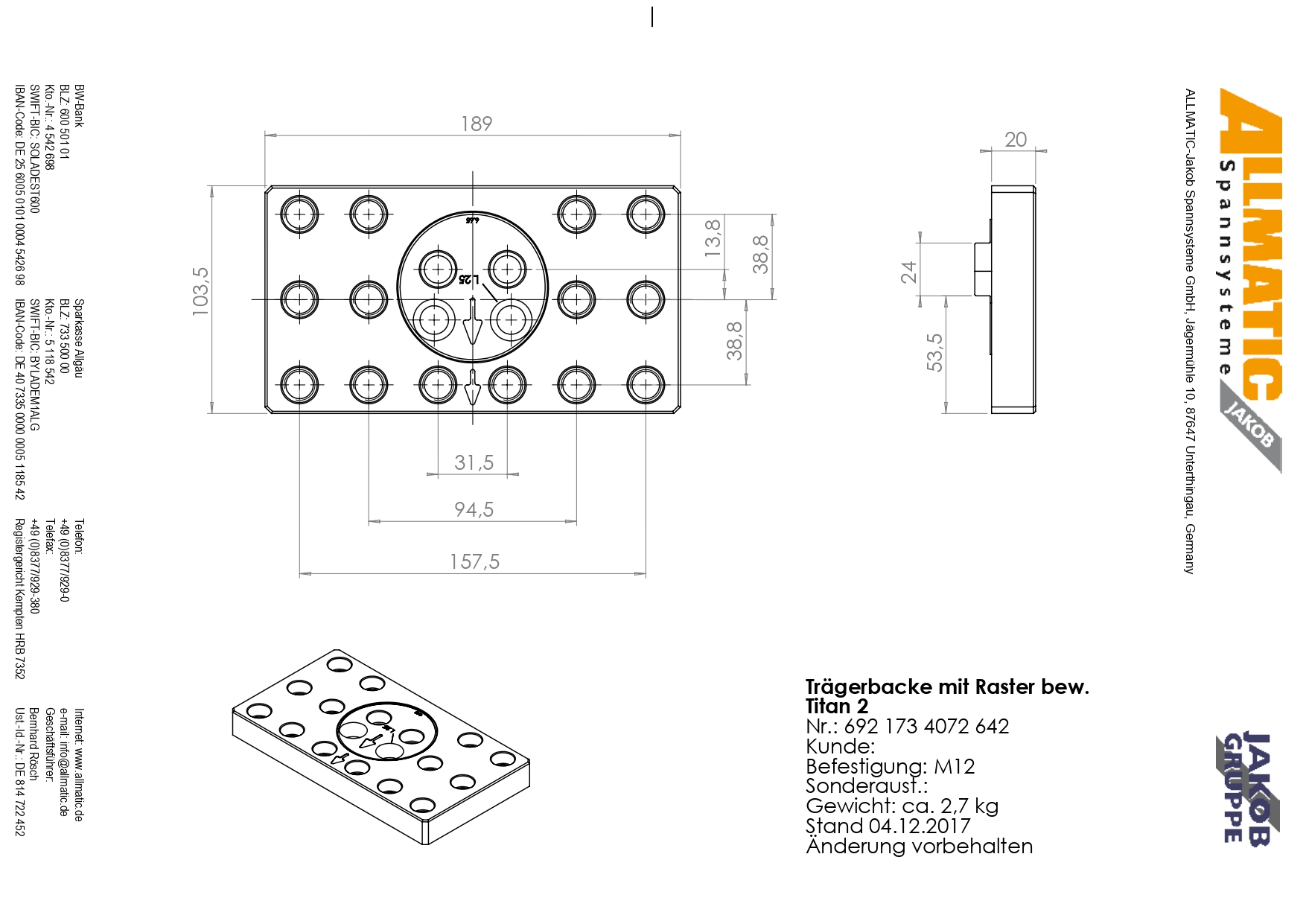

- CAD
- Technical Information
- Operating Manual
