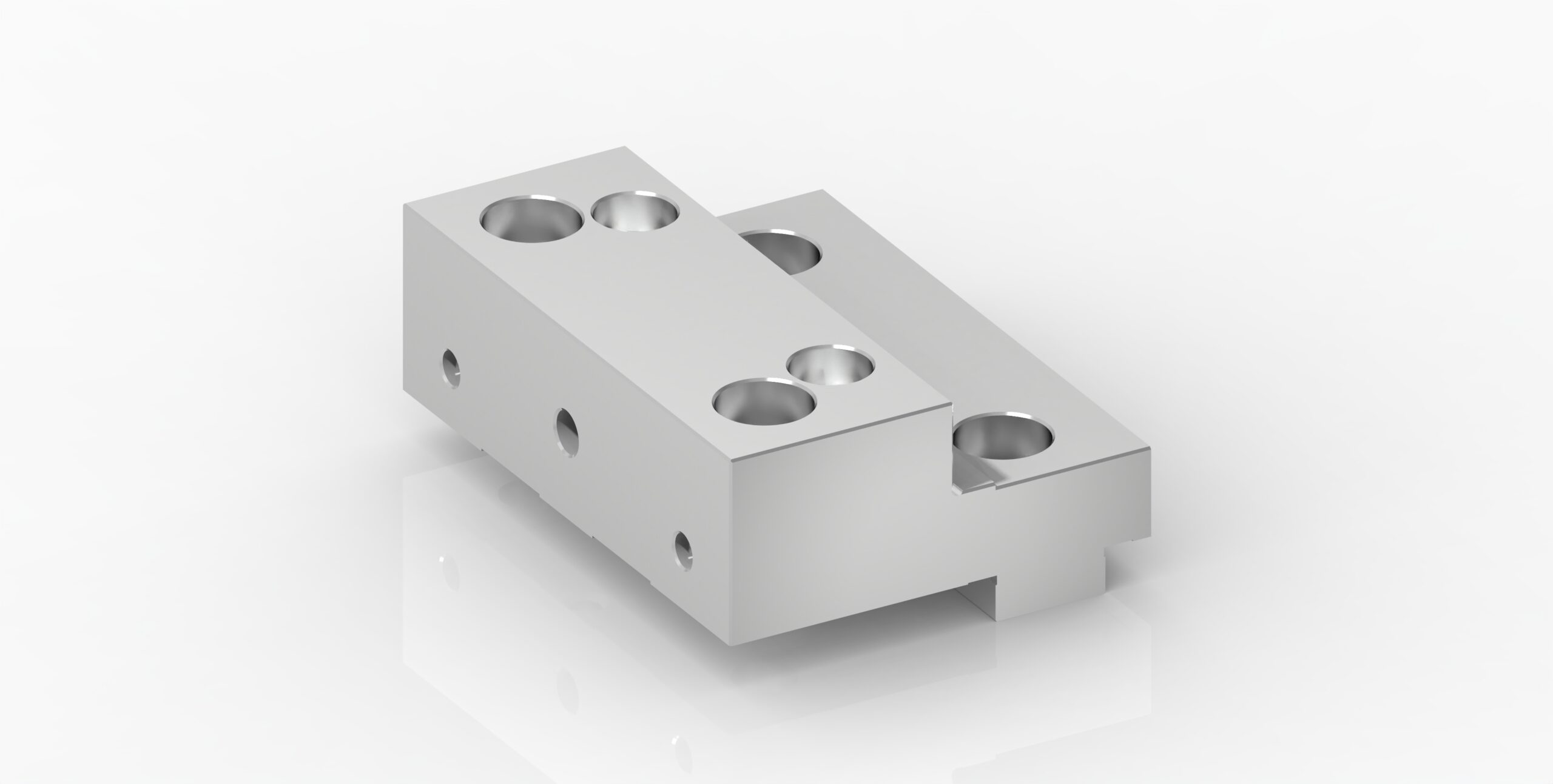

Step Jaw Fixed

Article number:FG/VC/HIPR/C0063NP001
  • Material hardened steel.
  • Case-hardened and tempered 680 + 80 HV30, Case depth 0.5 +0.3.
  • High and step sides with thread for parallels.
  • Ground and polished clamping surfaces.
  • Click system on the high side.
Send Enquiry
Download Catalogue

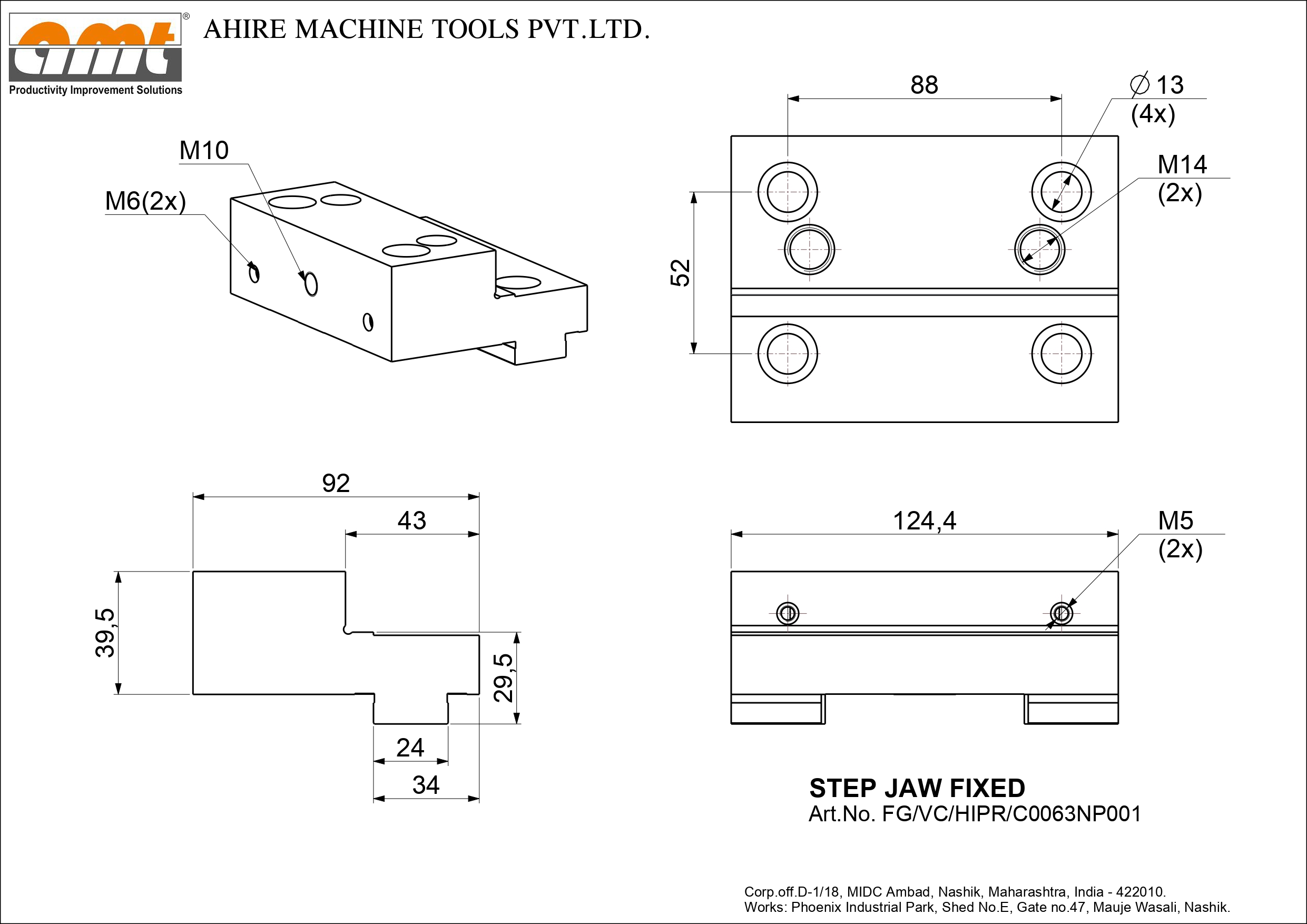

  • Dimensions in mm -124.4
  • Dimensions in mm –92
  • Dimensions in mm – 39.5
  • Step Jaw Fixed – 1 Nos
  • Allen Bolt M12x25 – 2 Nos
  • Allen Bolt M12x45 – 2 Nos
