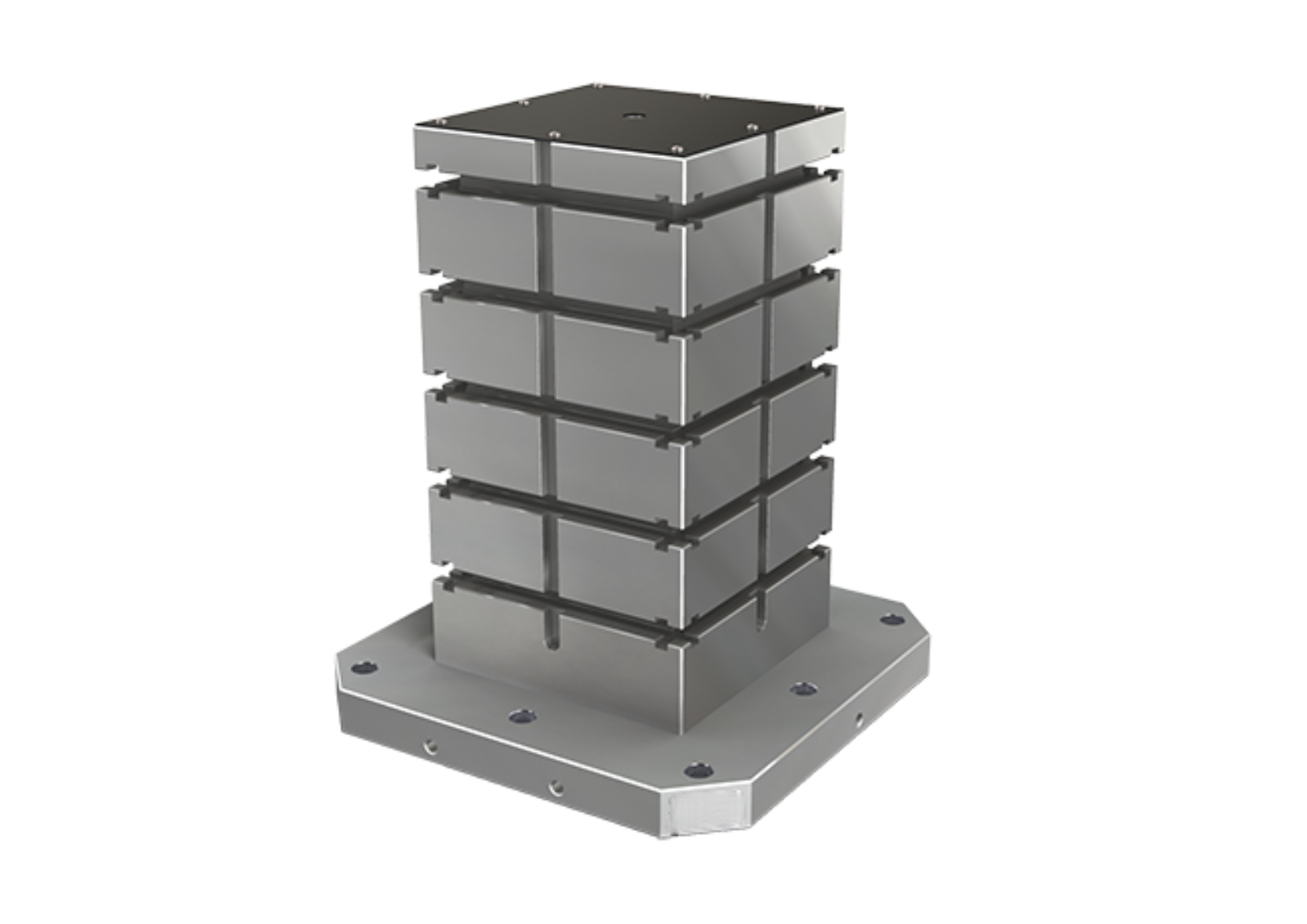

Square Clamping Column – T-Slot
Scope of Application
- Horizontal Machining Centre.
Product Features
- Material: Cast iron GG30(DIN)/C45
- Heat Treated Normalized
- T-slot available in 14 & 18mm.
- T-slot running horizontally.
- key-way running vertically.
- Easily adapts to standardized jig components.
- Eye bolt & top cover included.

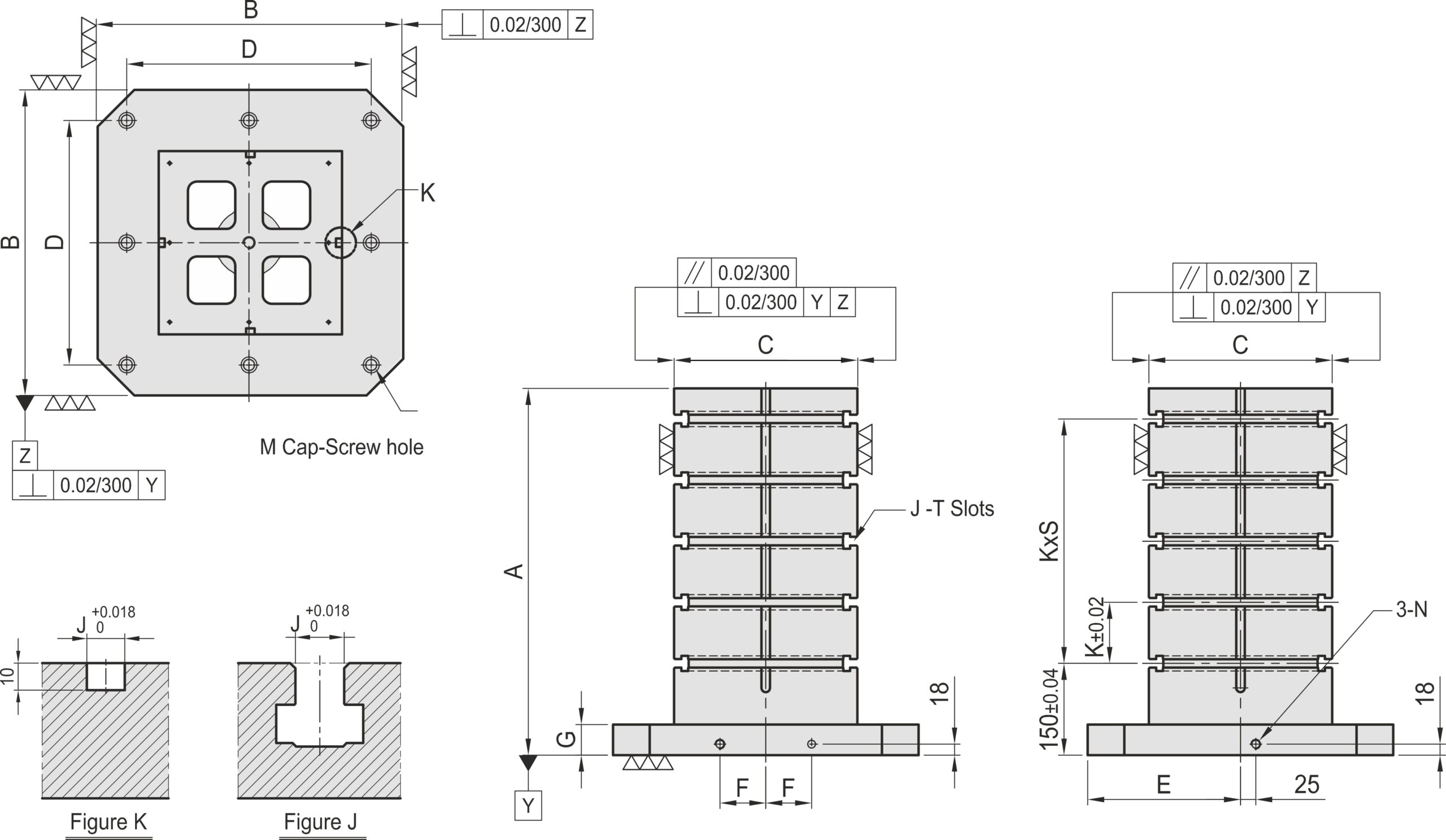

| Article No. | Model | A | B | C | D | E | F | G | N | M | K | S | J | Mounting Hole | Wt.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/TOMB/SQTSLNP001 | TST/SQ/250-14 | 500 | 400 | 250 | 320 | 200 | 55 | 50 | M16 | M16 | 100 | 3 | 14 | 4 | 160 | Download | Download |
| FG/WH/TOMB/SQTSLNP002 | TST/SQ/250-14 | 650 | 400 | 250 | 320 | 200 | 55 | 50 | M16 | M16 | 100 | 3 | 14 | 4 | 200 | Download | Download |
| FG/WH/TOMB/SQTSLNP003 | TST/SQ/300-14 | 600 | 500 | 300 | 400 | 250 | 75 | 50 | M16 | M16 | 100 | 4 | 14 | 8 | 270 | Download | Download |
| FG/WH/TOMB/SQTSLNP004 | TST/SQ/350-14 | 700 | 630 | 350 | 500 | 315 | 100 | 50 | M16 | M16 | 125 | 4 | 14 | 8 | 375 | Download | Download |
| FG/WH/TOMB/SQT18NP001 | TST/SQ/250-18 | 500 | 400 | 250 | 320 | 200 | 55 | 50 | M16 | M16 | 100 | 3 | 18 | 4 | 155 | Download | Download |
| FG/WH/TOMB/SQT18NP002 | TST/SQ/250-18 | 650 | 400 | 250 | 320 | 200 | 55 | 50 | M16 | M16 | 100 | 3 | 18 | 4 | 190 | Download | Download |
| FG/WH/TOMB/SQT18NP003 | TST/SQ/300-18 | 600 | 500 | 300 | 400 | 250 | 75 | 50 | M16 | M16 | 100 | 4 | 18 | 8 | 265 | Download | Download |
| FG/WH/TOMB/SQT18NP004 | TST/SQ/350-18 | 700 | 630 | 350 | 500 | 315 | 100 | 50 | M16 | M16 | 125 | 4 | 18 | 8 | 365 | Download | Download |
