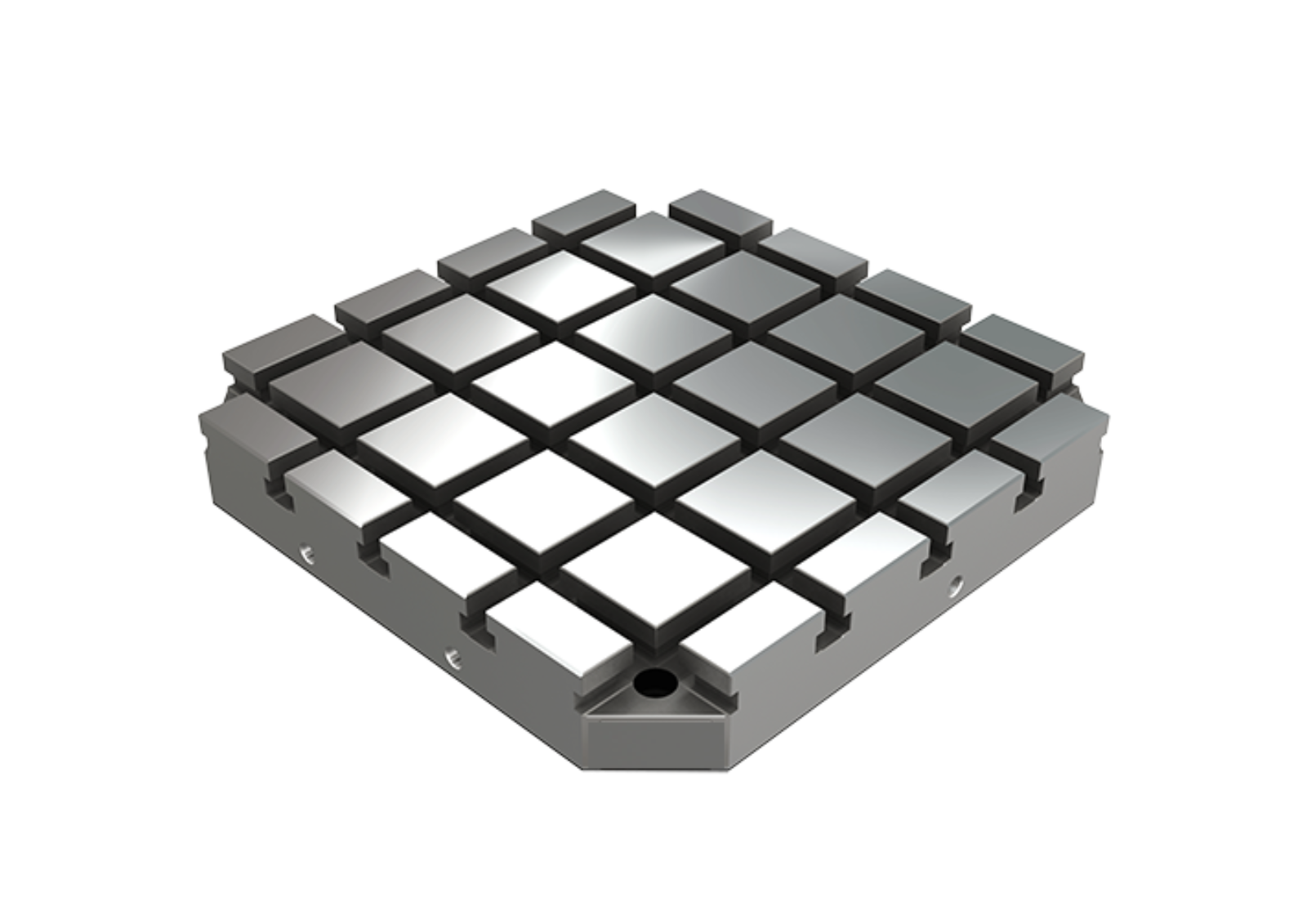

Square Base Plate T-Slot
Scope of Application
- Horizontal Machining Centre.
Product Features
- Material: Cast iron GG30(DIN)/C45
- Heat Treated Normalized
- T-slot available in 14 & 18mm.
- T-slot running in 2 directions.
- Easily adapts to standardized jig components.

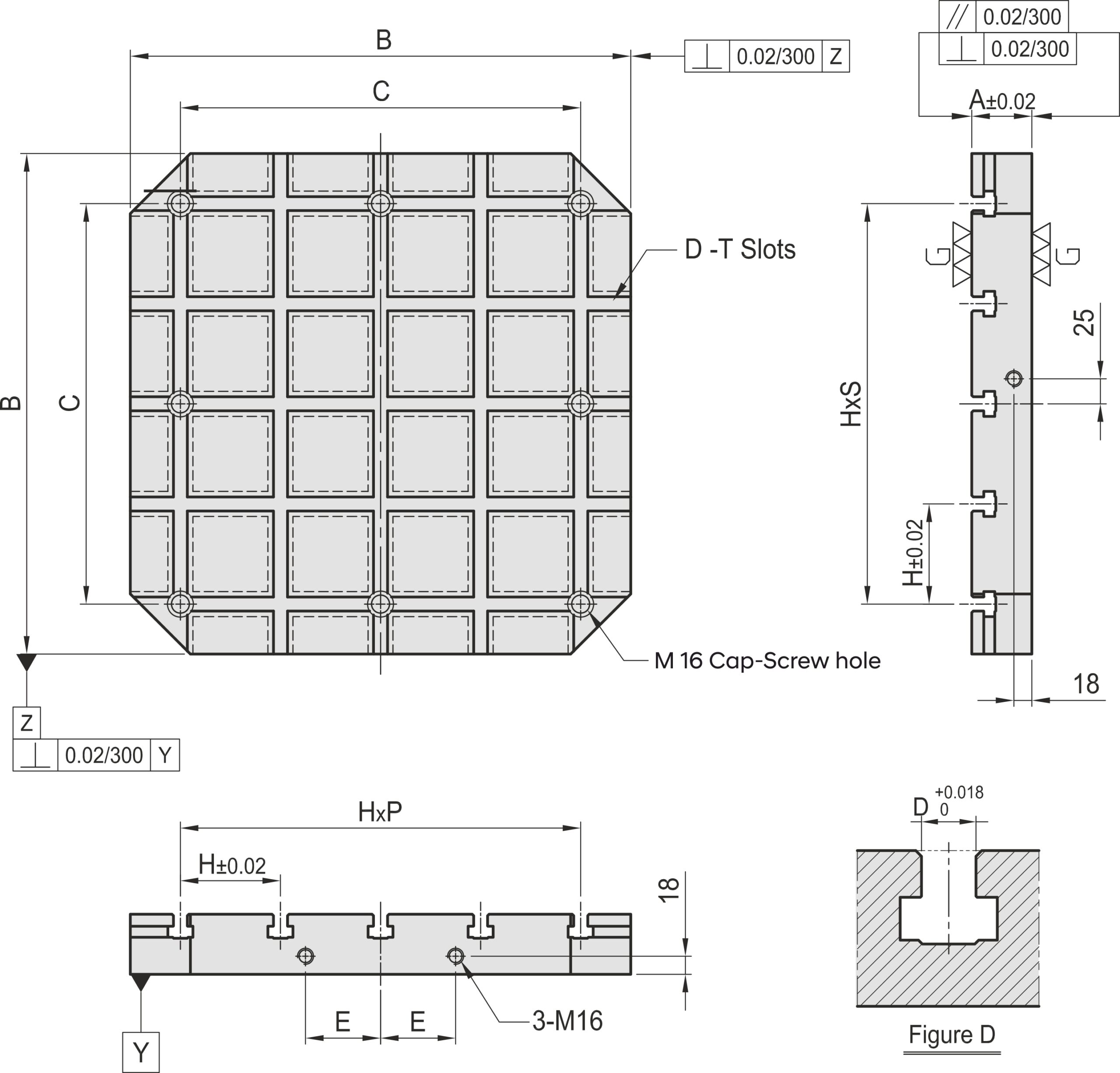

| Article number | MODEL | A | B | C | D | E | H | P | S | Mounting Hole | Wt.KG | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/SQTSLNP001 | BPT/SQ/400-14 | 60 | 400 | 320 | 14 | 55 | 80 | 4 | 4 | 4 | 56 | Download | Download |
| FG/WH/BASPL/SQTSLNP002 | BPT/SQ/500-14 | 60 | 500 | 400 | 14 | 75 | 100 | 4 | 4 | 8 | 90 | Download | Download |
| FG/WH/BASPL/SQTSLNP003 | BPT/SQ/630-14 | 60 | 630 | 500 | 14 | 100 | 125 | 4 | 4 | 8 | 150 | Download | Download |
| FG/WH/BASPL/SQTSLNP004 | BPT/SQ/800-14 | 60 | 800 | 640 | 14 | 135 | 160 | 4 | 4 | 8 | 230 | Download | Download |
| FG/WH/BASPL/SQT18NP001 | BPT/SQ/400-18 | 75 | 400 | 320 | 18 | 55 | 80 | 4 | 4 | 4 | 68 | Download | Download |
| FG/WH/BASPL/SQT18NP002 | BPT/SQ/500-18 | 75 | 500 | 400 | 18 | 75 | 100 | 4 | 4 | 8 | 108 | Download | Download |
| FG/WH/BASPL/SQT18NP003 | BPT/SQ/630-18 | 75 | 630 | 500 | 18 | 100 | 125 | 4 | 4 | 8 | 180 | Download | Download |
| FG/WH/BASPL/SQT18NP004 | BPT/SQ/800-18 | 75 | 800 | 640 | 18 | 135 | 160 | 4 | 4 | 8 | 295 | Download | Download |
