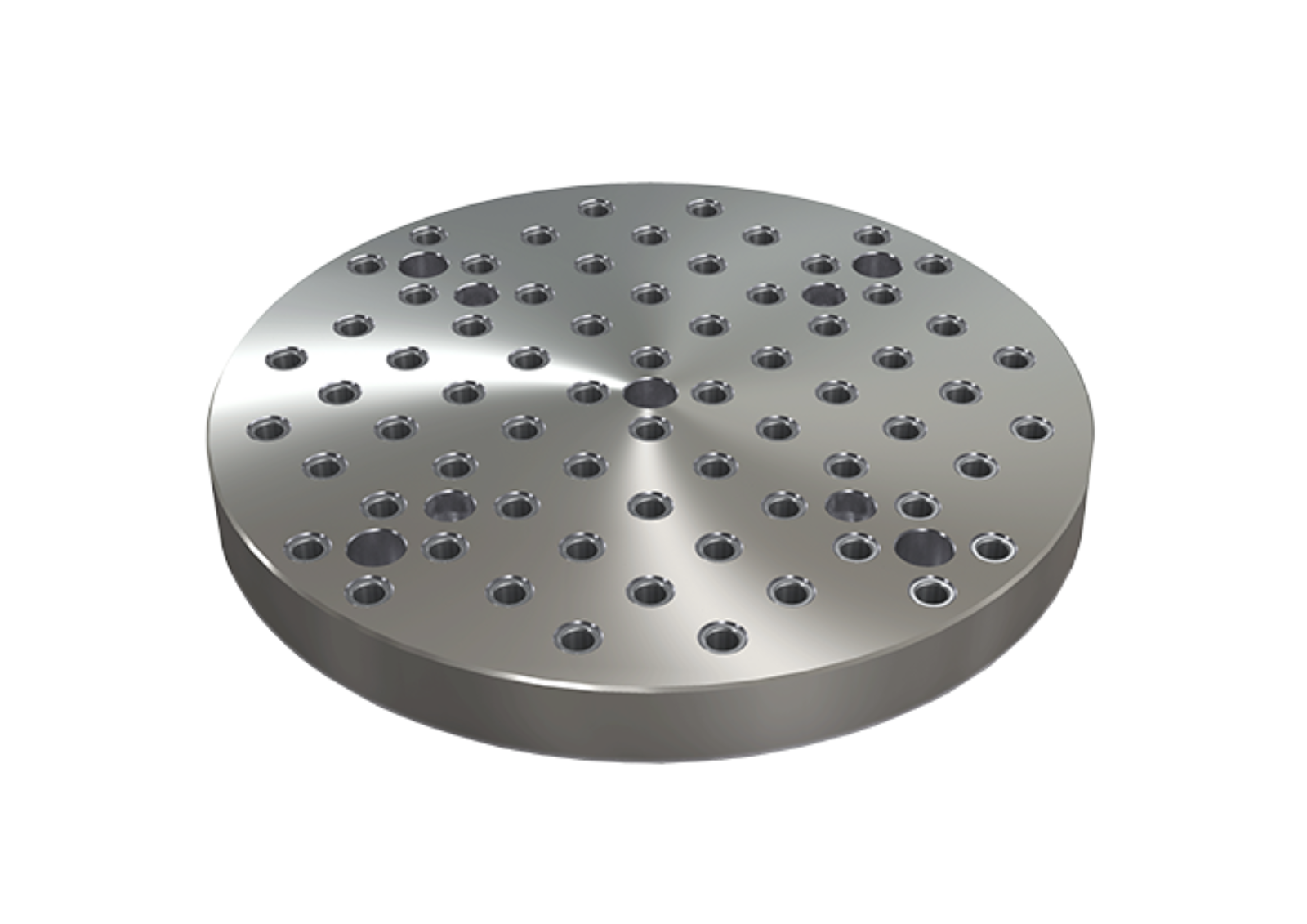

Round Base Plate – Grid Hole
Scope of Application
- NC rotary table or Indexer
Product Features
- Material: cast iron GG30(DIN)/C45
- Heat Treated Normalized
- Alignment bushing.
- Threaded insert.
- MTP hole spacing:50+0.02.
- Grid holes available in M12 & M16.
- Easily adapts to standardized jig components.

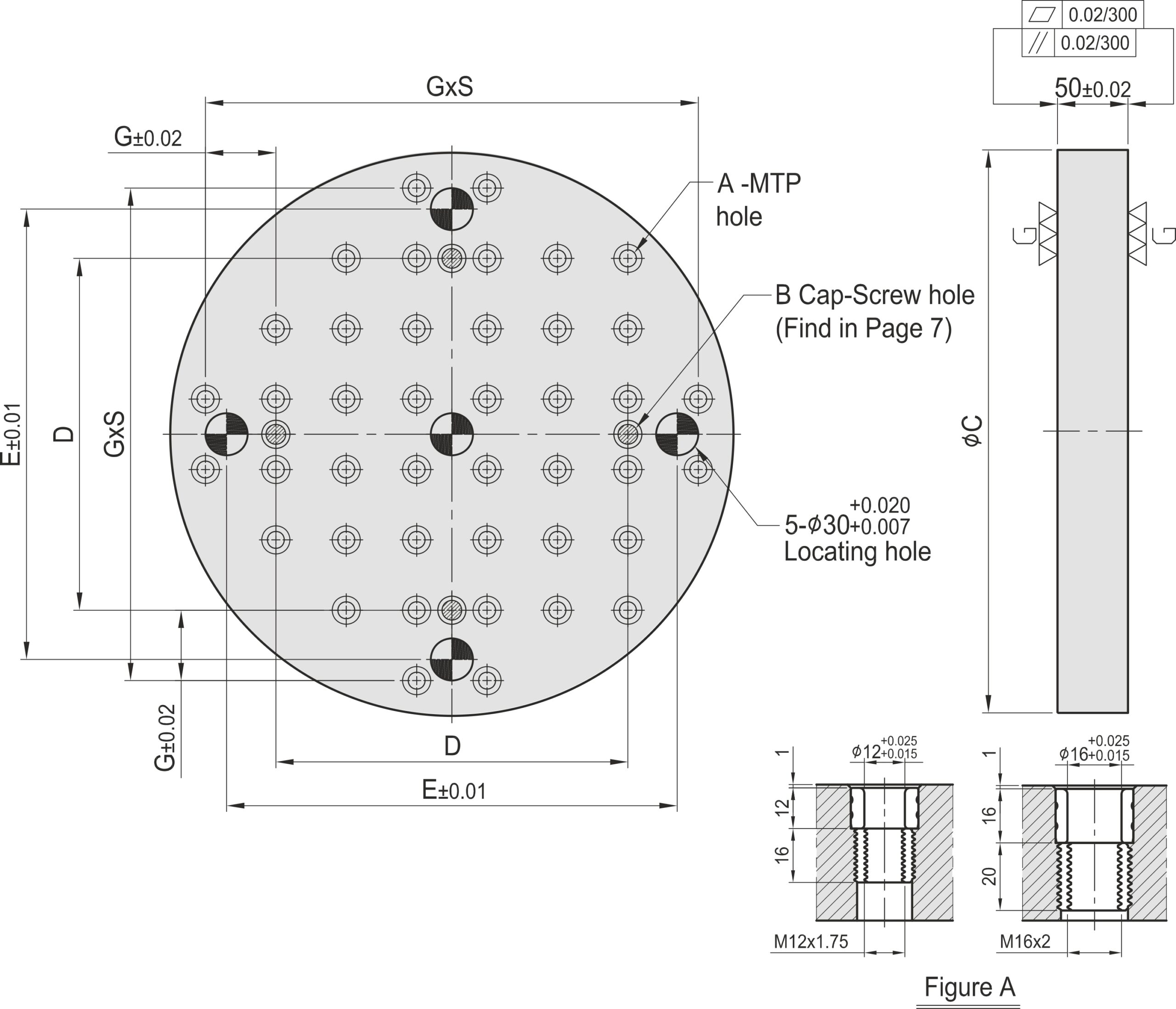

| Article No. | Model No. | A | A | B | C | D | E | G | S | MTP | Wt.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/RDGRDNP001 | BPG/R/D300-12 | ∅12 | M12 | M12 | 300 | 150 | 220 | 50 | 5 | 24 | 23 | Download | Download |
| FG/WH/BASPL/RDGRDNP002 | BPG/R/D400-12 | ∅12 | M12 | M12 | 400 | 250 | 320 | 50 | 7 | 44 | 42 | Download | Download |
| FG/WH/BASPL/RDGRDNP003 | BPG/R/D500-12 | ∅12 | M12 | M16 | 500 | 300 | 400 | 50 | 9 | 68 | 70 | ||
| FG/WH/BASPL/RDGRDNP004 | BPG/R/D600-12 | ∅12 | M12 | M16 | 600 | 400 | 500 | 50 | 11 | 96 | 98 | Download | Download |
| FG/WH/BASPL/RDGRDNP005 | BPG/R/D500-16 | ∅16 | M16 | M16 | 500 | 300 | 400 | 50 | 9 | 68 | 68 | ||
| FG/WH/BASPL/RDGRDNP006 | BPG/R/D600-16 | ∅16 | M16 | M16 | 600 | 400 | 500 | 50 | 11 | 96 | 95 |
