PRODUCTS

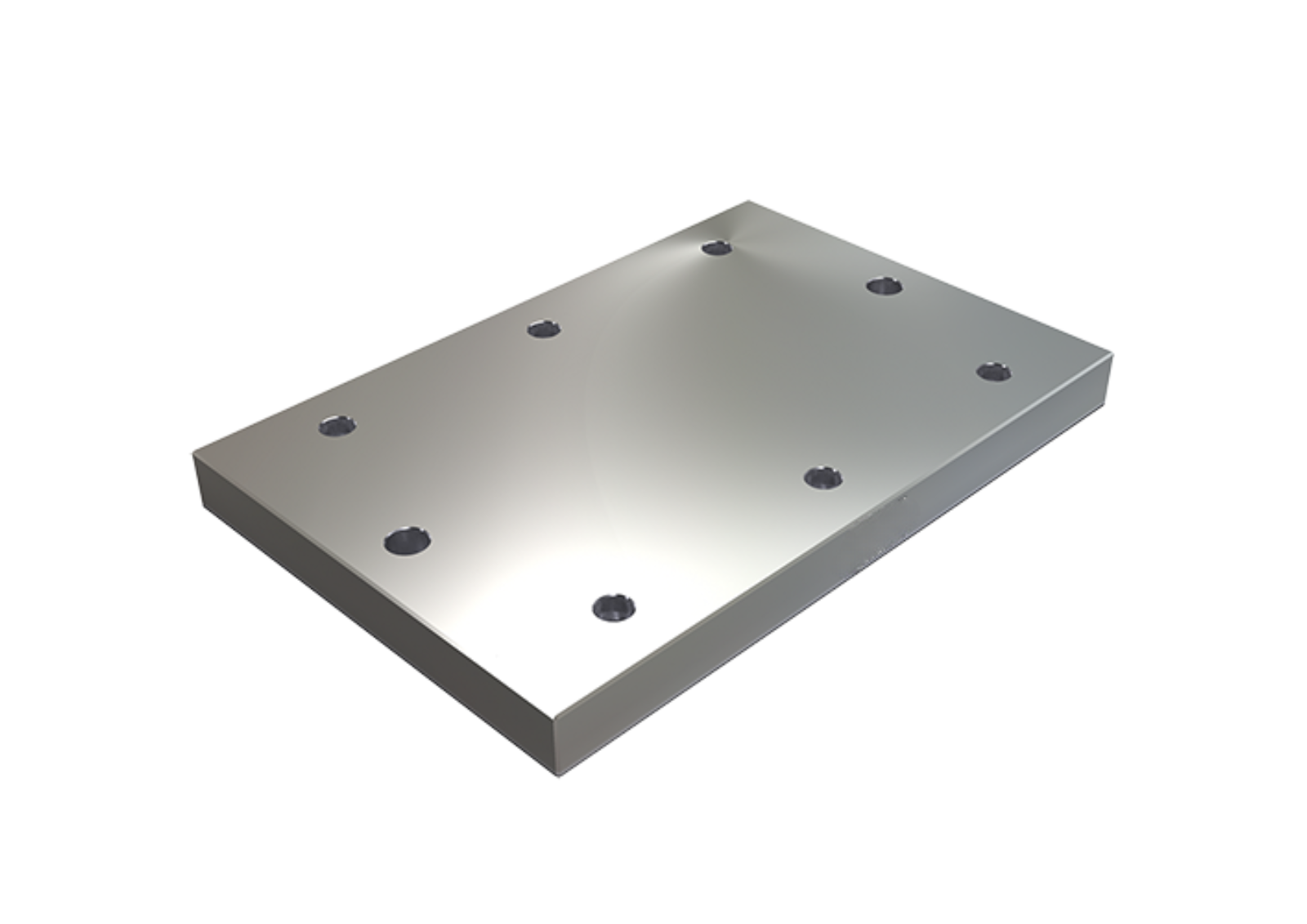

Rectangular Base Plate – Plain
Scope of Application
- Application: vertical machining centres.
Product Features
- Material: cast iron GG30(DIN)/C45
- Heat Treated Normalized
- Can be special ordered with any size
- Thickness available from 35mm to 50mm.

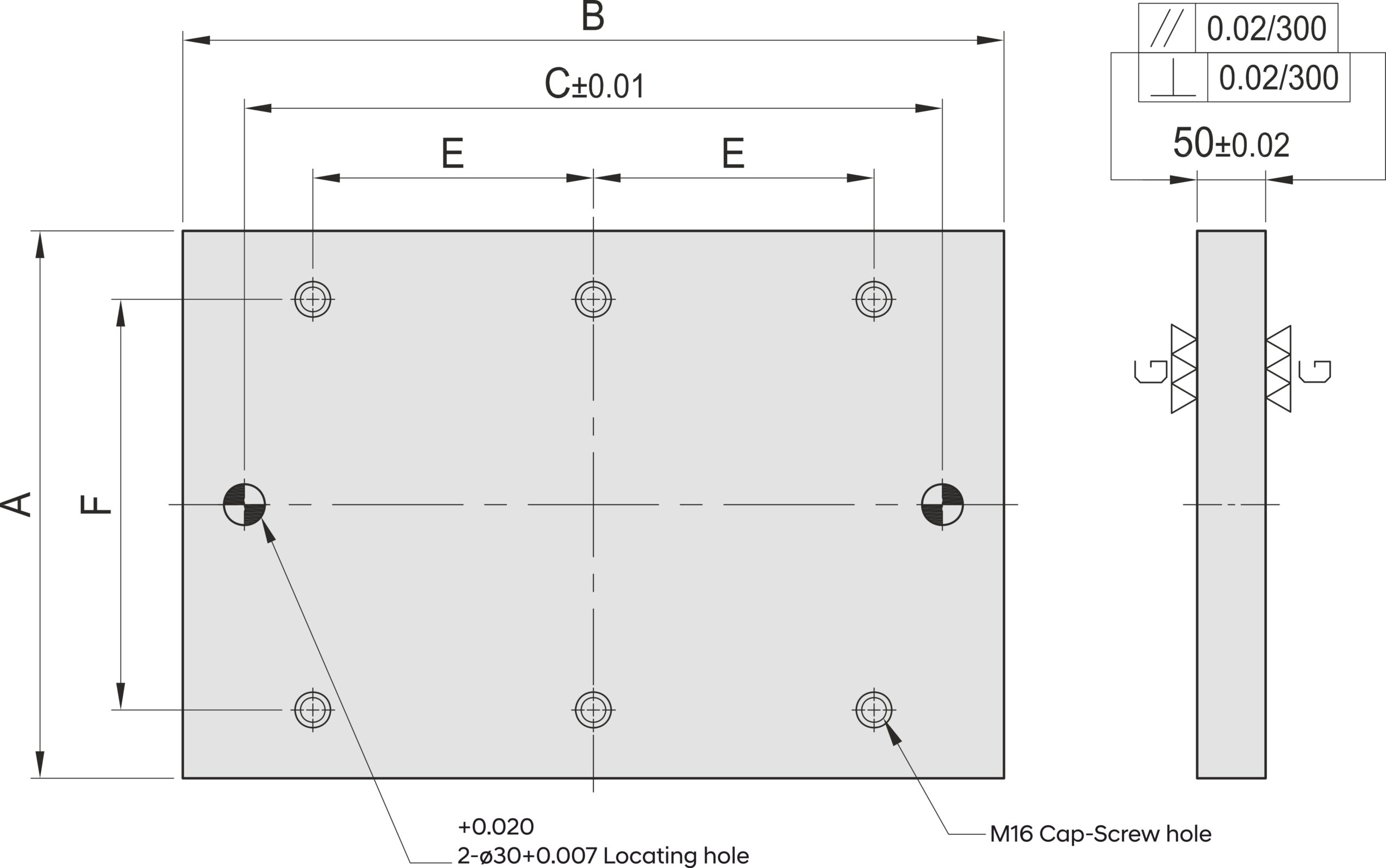

| Article No. | Model No. | A | B | C | D | E | WT.Kg | 2D (PDF) | 3D (Step) |
|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/RCPLNNP001 | BPP/RT/400600 | 400 | 600 | As Required | As Required | As Required | 88 | Download | Download |
| FG/WH/BASPL/RCPLNNP002 | BPP/RT/500600 | 500 | 600 | As Required | As Required | As Required | 106 | Download | Download |
| FG/WH/BASPL/RCPLNNP003 | BPP/RT/400800 | 400 | 800 | As Required | As Required | As Required | 113 | Download | Download |
| FG/WH/BASPL/RCPLNNP004 | BPP/RT/450900 | 450 | 900 | As Required | As Required | As Required | 142 | Download | Download |
| FG/WH/BASPL/RCPLNNP005 | BPP/RT/5001000 | 500 | 1000 | As Required | As Required | As Required | 176 | Download | Download |
