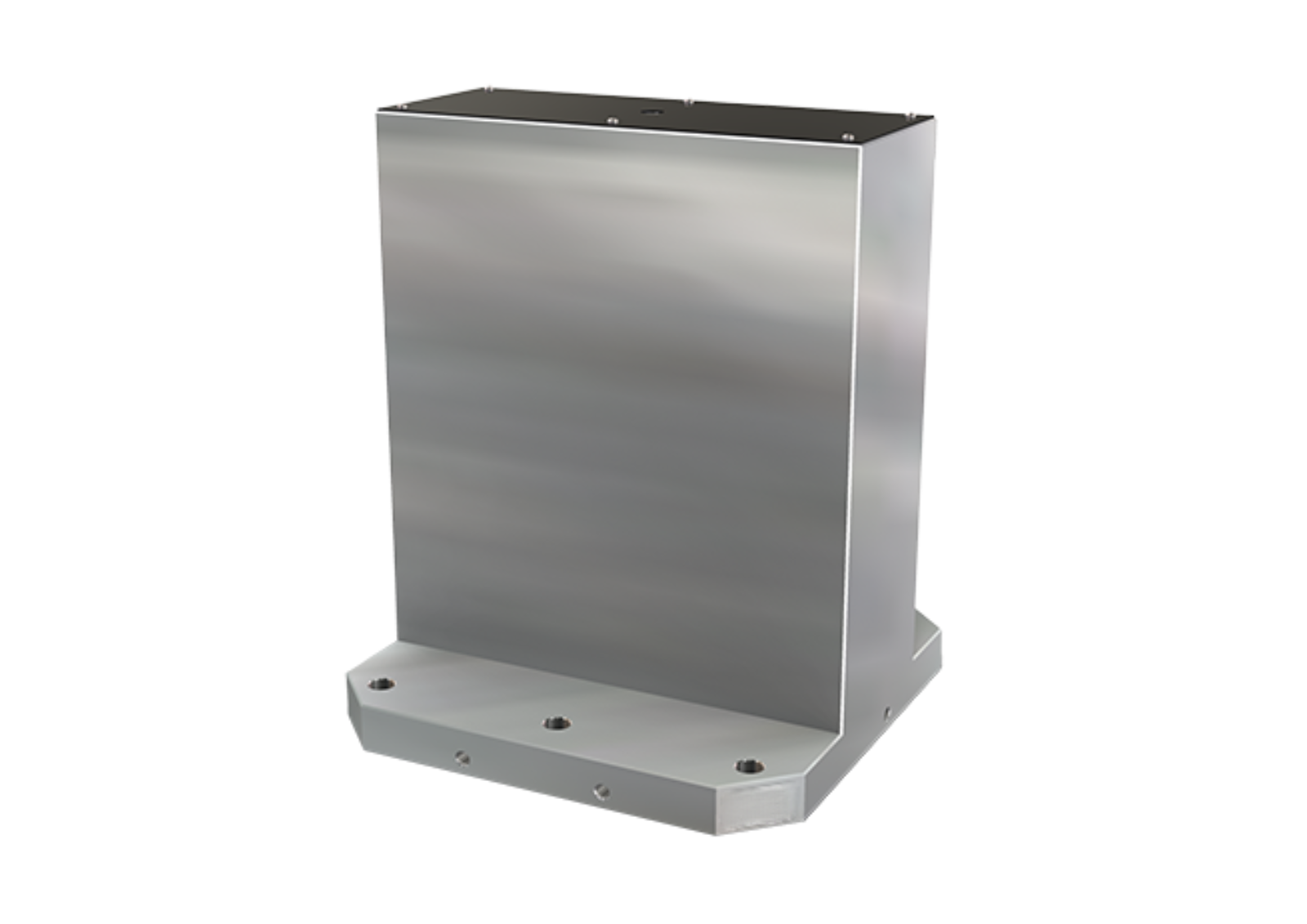

Double Sided Clamping Column – Plain
Scope of Application
- Horizontal Machining Centre.
Product Features
- Material: Cast iron GG30(DIN)
- Heat Treated Normalized
- Fully machined on all sides.
- Side edge locating holes on base.
- Top cover to keep out chips and coolant.
- Eye bolt for lifting.

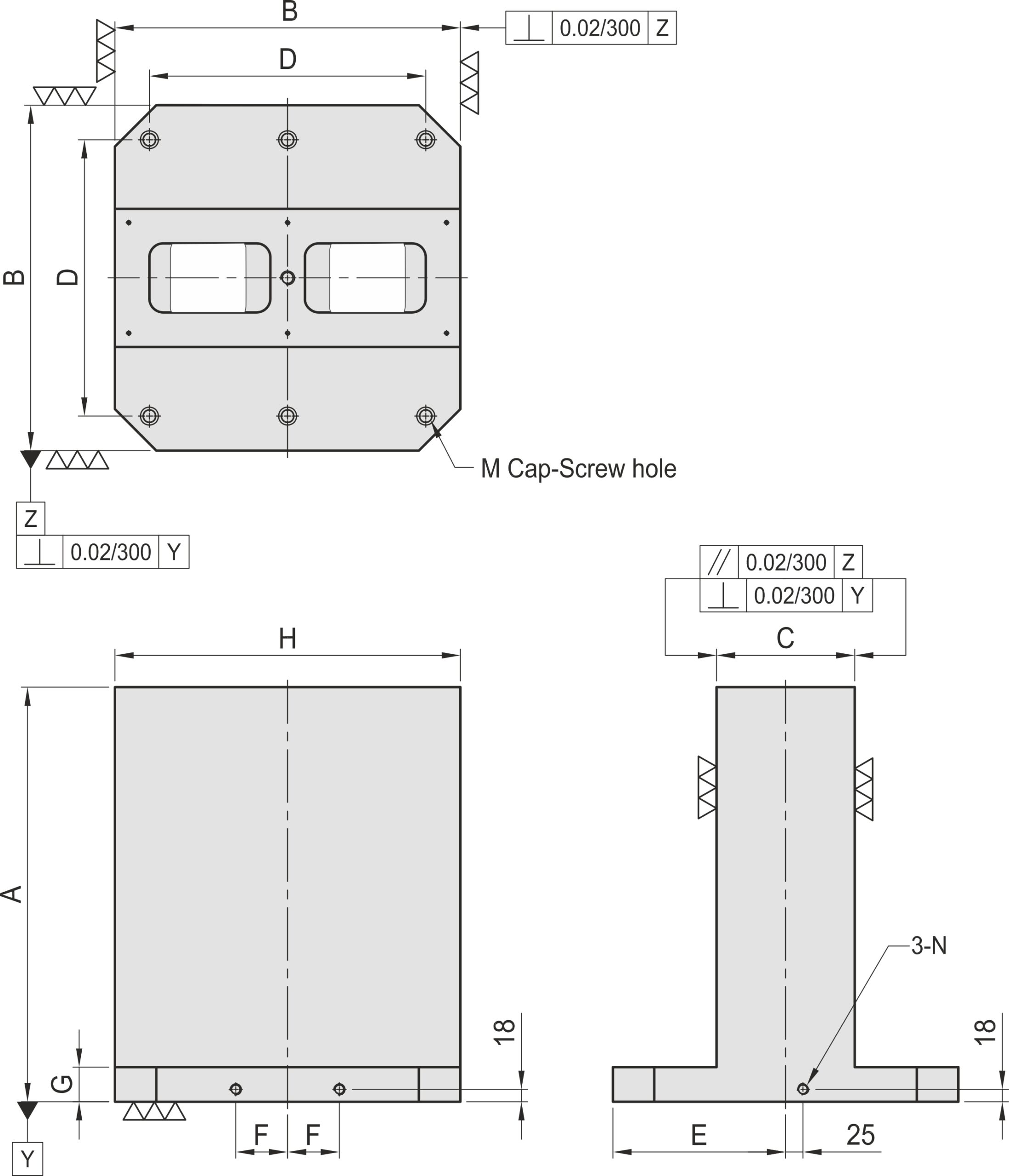

| Article No. | Model No. | A | B | C | D | E | F | G | H | M | N | Mounting Hole | Wt.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/TOMB/RCPLNNP001 | TSP/RT/80300 | 500 | 300 | 80 | 250 | 150 | 40 | 50 | 300 | M12 | M12 | 4 | 115 | Download | Download |
| FG/WH/TOMB/RCPLNNP002 | TSP/RT/150400 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 4 | 170 | Download | Download |
| FG/WH/TOMB/RCPLNNP003 | TSP/RT/150400 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 4 | 215 | ||
| FG/WH/TOMB/RCPLNNP004 | TSP/RT/200500 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 8 | 270 | Download | Download |
| FG/WH/TOMB/RCPLNNP005 | TSP/RT/250630 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 8 | 445 | Download | Download |
