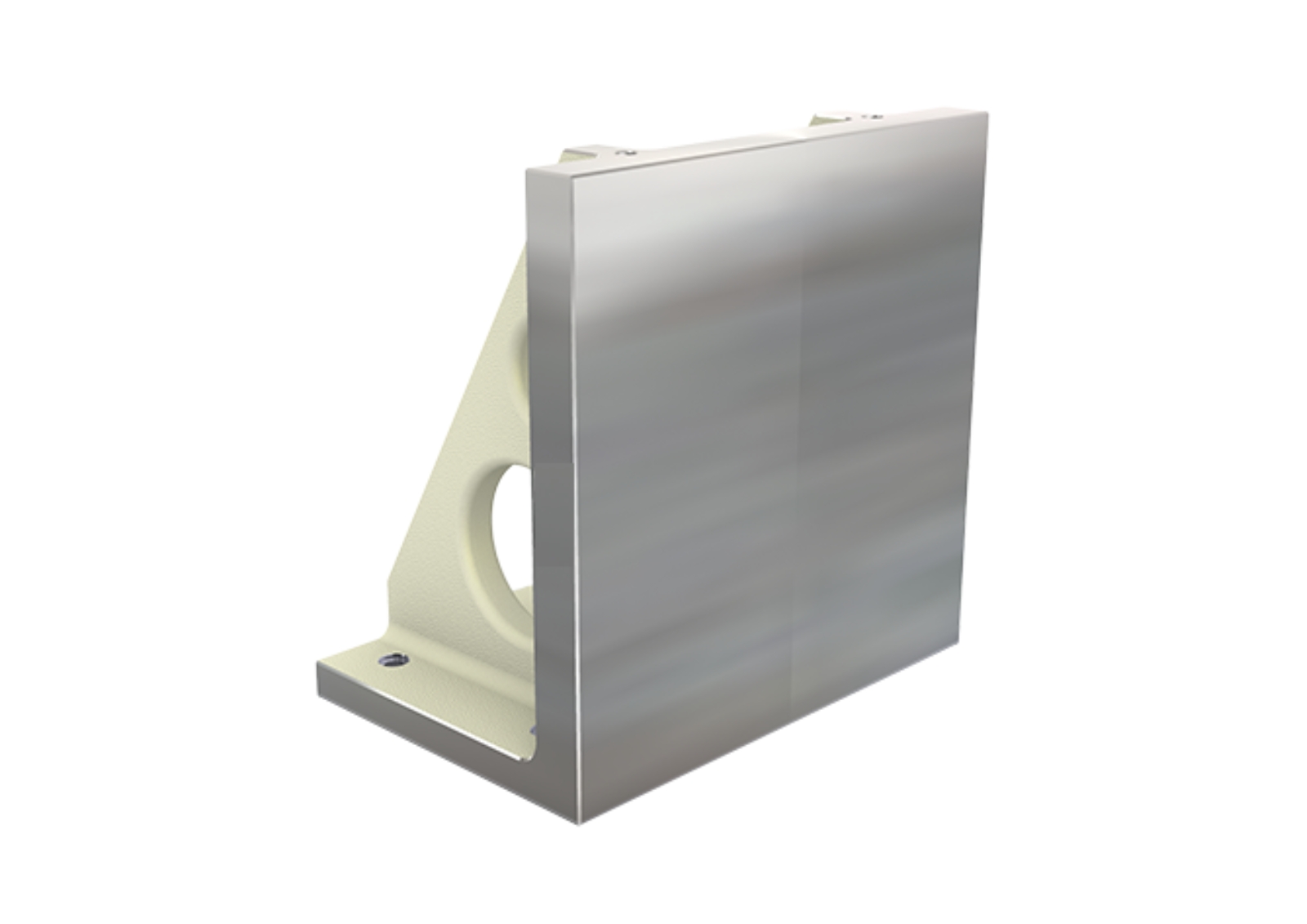

Angle Plate – Plain
Scope of Application
- Horizontal machining canter.
Product Features
- Material: Cast iron GG30(DIN)
- Heat Treated Normalized
- MTP Hole
- Can be special ordered with any size.

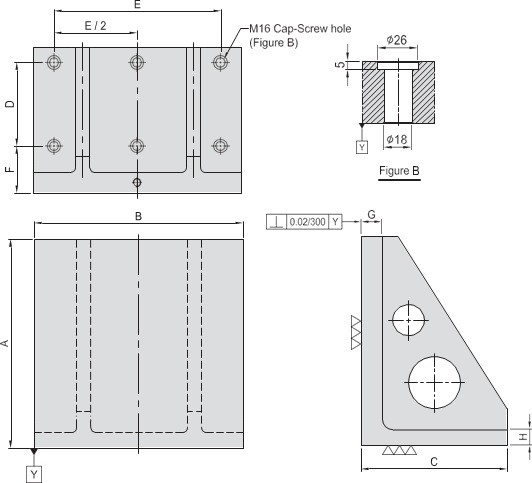

| Article No. | Model No. | A | B | C | D | E | F | G | H | Mounting Hole | WT.Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/ANGPL/ANPLNNP001 | APP/SQ/400400 | 400 | 400 | 280 | 160 | 320 | 90 | 40 | 30 | 6 | 90 | Download | Download |
| FG/WH/ANGPL/ANPLNNP002 | APP/SQ/500500 | 500 | 500 | 340 | 200 | 400 | 90 | 50 | 35 | 6 | 165 | Download | Download |
| FG/WH/ANGPL/ANPLNNP003 | APP/SQ/630630 | 630 | 630 | 435 | 250 | 500 | 100 | 50 | 40 | 6 | 275 | Download | Download |
| FG/WH/ANGPL/ANPLNNP004 | APP/SQ/800800 | 800 | 800 | 525 | 320 | 640 | 115 | 50 | 45 | 6 | 475 | Download | Download |
