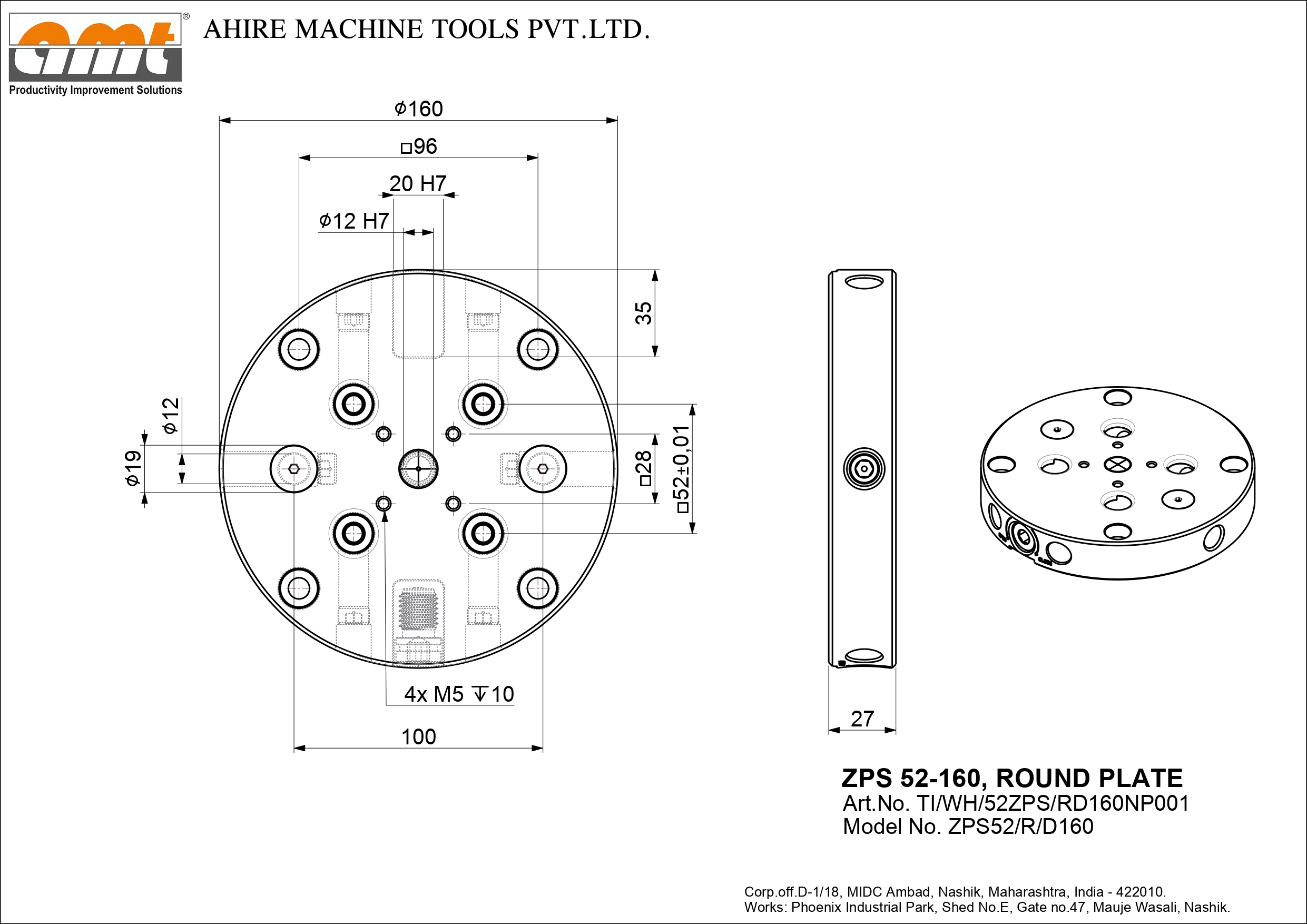

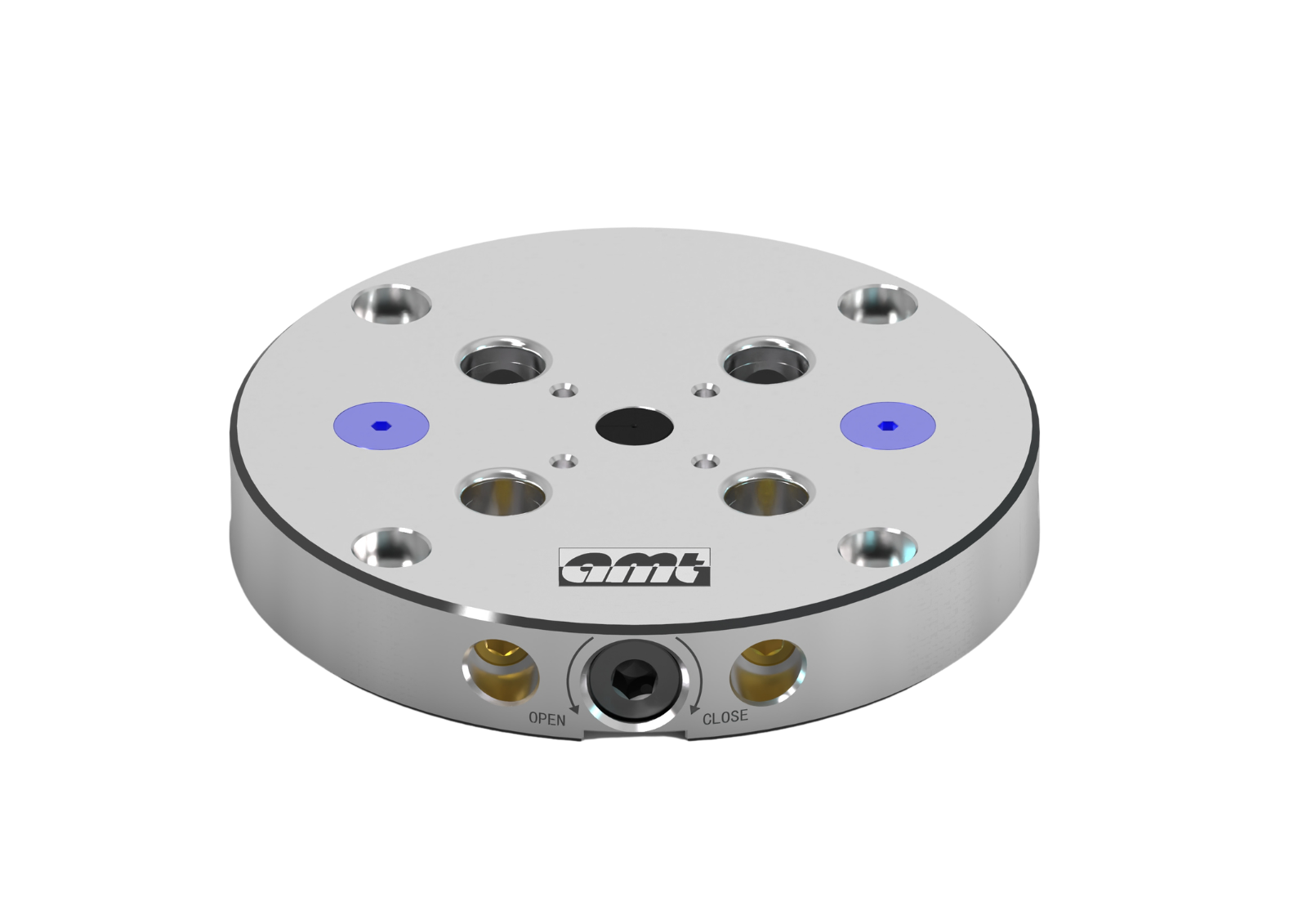

ZPS 52-160, Round Plate
Article number:TI/WH/52ZPS/RD160NP001
Scope of Application
- Vertical and horizontal milling machine.
- 3-Axis / 5-Axis table, automation pallets.
- Rotary tables.
- Single and multiple clamping.
Product Features
- Repetition accuracy is within 0.005mm.
- Reduce fixture replacement and adjustment time by more than 80%.
- Base body made of case hardened, Ground steel.
- Zero-point grid 52mm.
- Mechanical clamping.
- Integrated alignment slots and fitting holes.
- Mounting holes suitable for all standard machine table.
