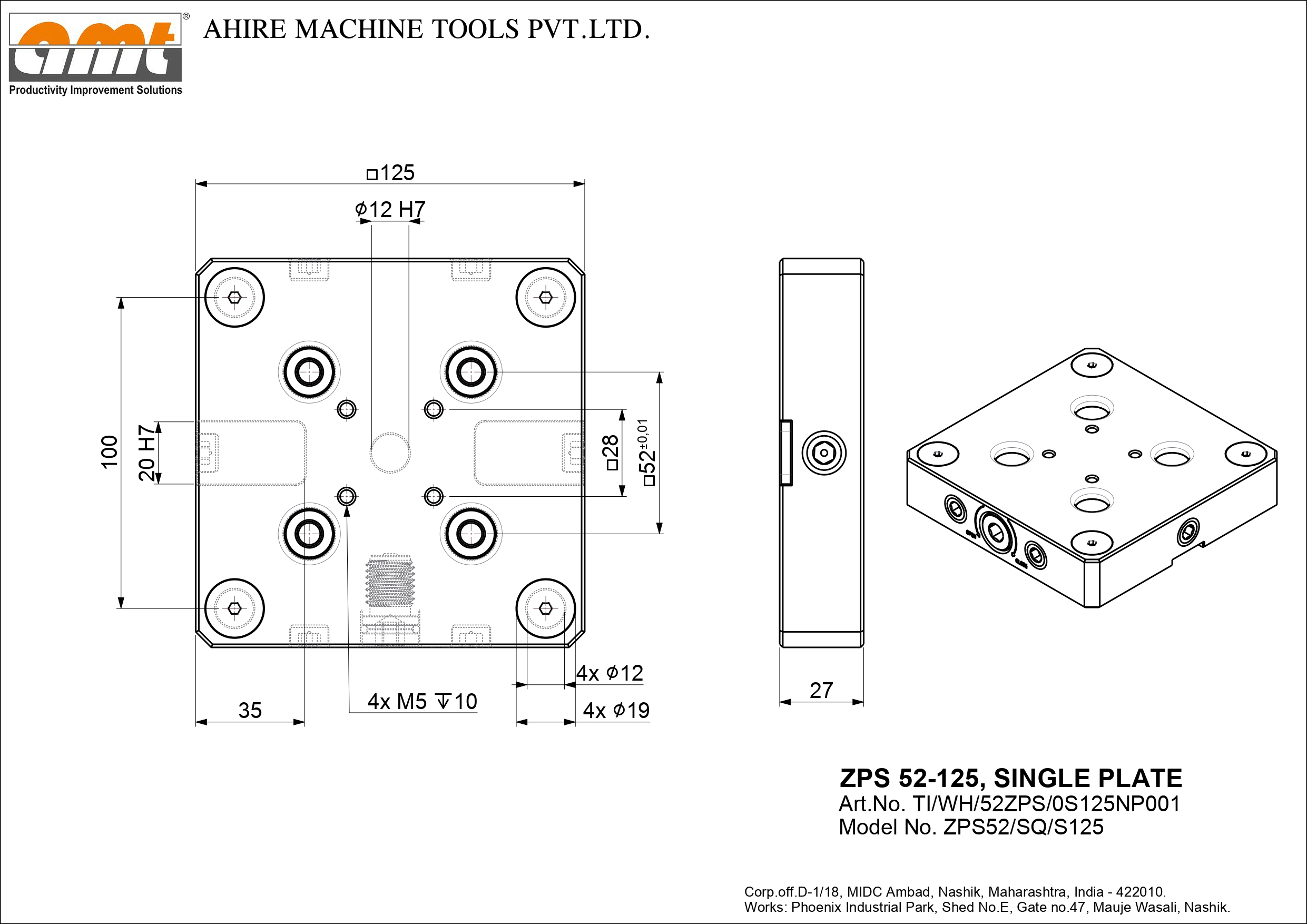

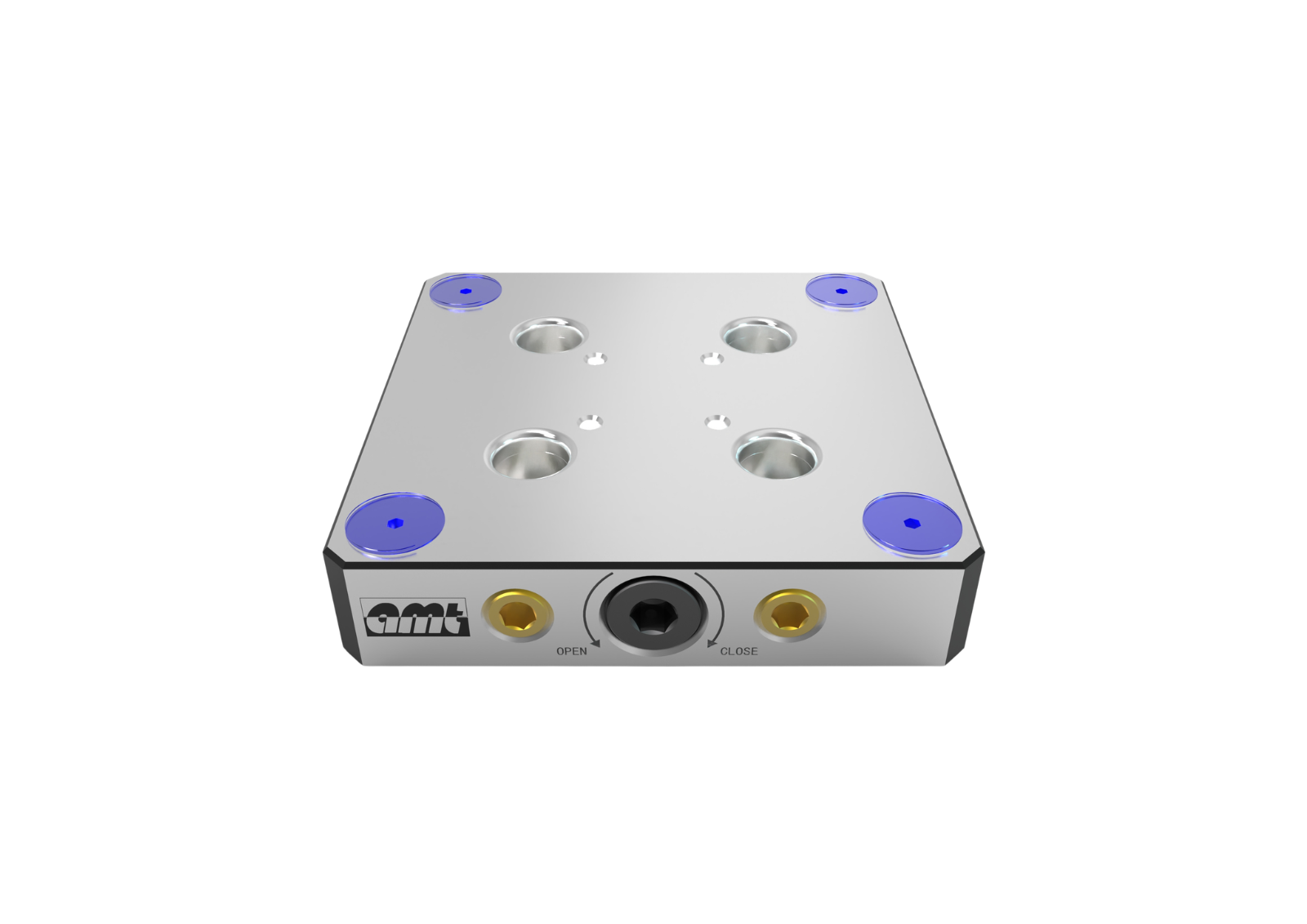

ZPS 52-125, Single Plate
Article number:TI/WH/52ZPS/0S125NP001
Scope of Application
- Vertical and horizontal milling machine.
- 3-Axis / 5-Axis table, automation pallets.
- Rotary tables.
- Single and multiple clamping.
Product Features
- Repetition accuracy is within 0.005mm.
- Reduce fixture replacement and adjustment time by more than 80%.
- Base body made of case hardened, Ground steel.
- Zero point grid 52mm.
- Mechanical clamping.
- Integrated alignment slots and fitting holes.
- Mounting holes suitable for all standard machine table.
- Dimensions in mm -125
- Dimensions in mm – 125
- Dimensions in mm – 27
- Mounting Hole in mm – 96×96
- Clamping force in kN – 20
- Weight in Kg – 2.8
- CAD
- Technical Information
- Operating Manual
