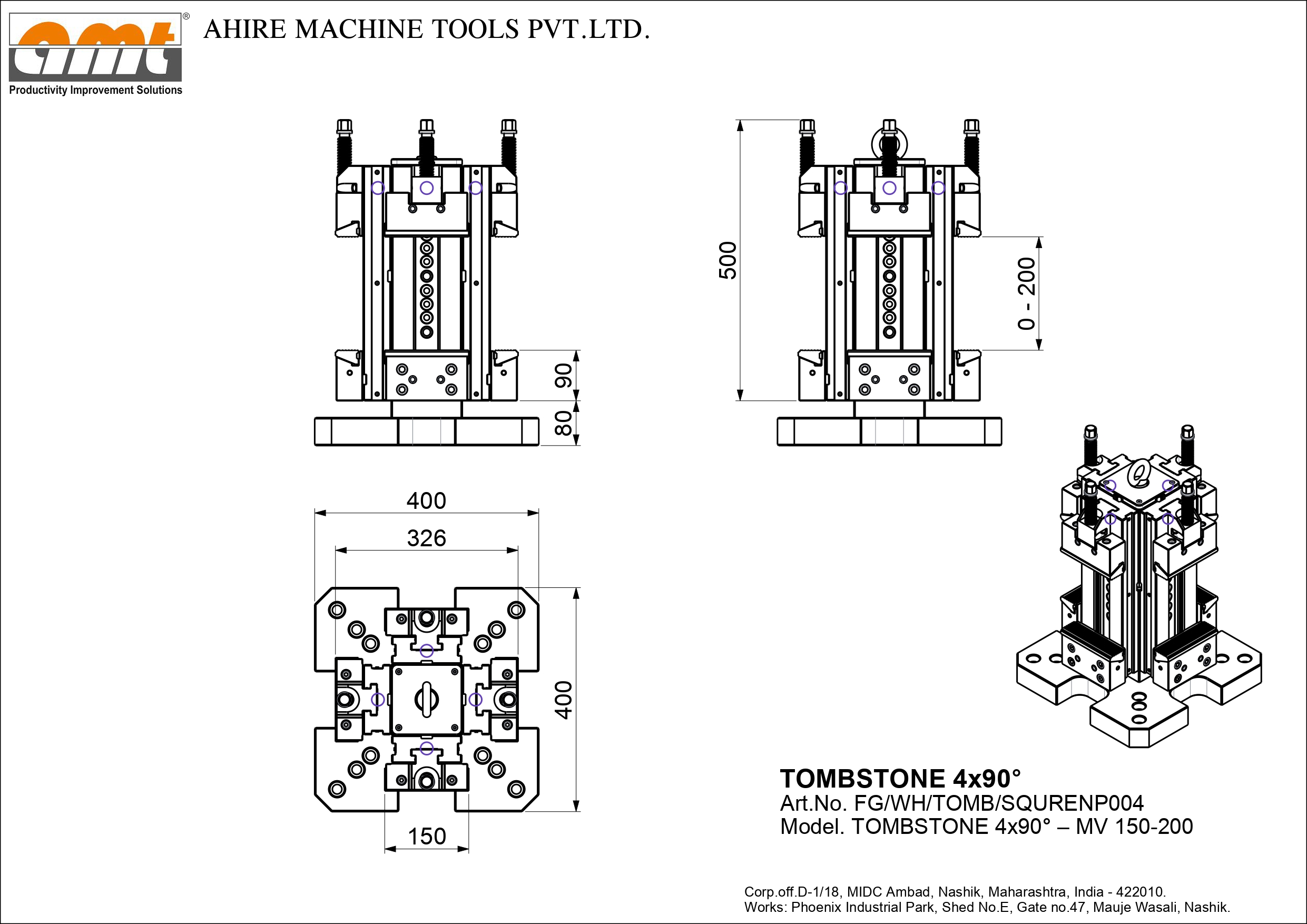

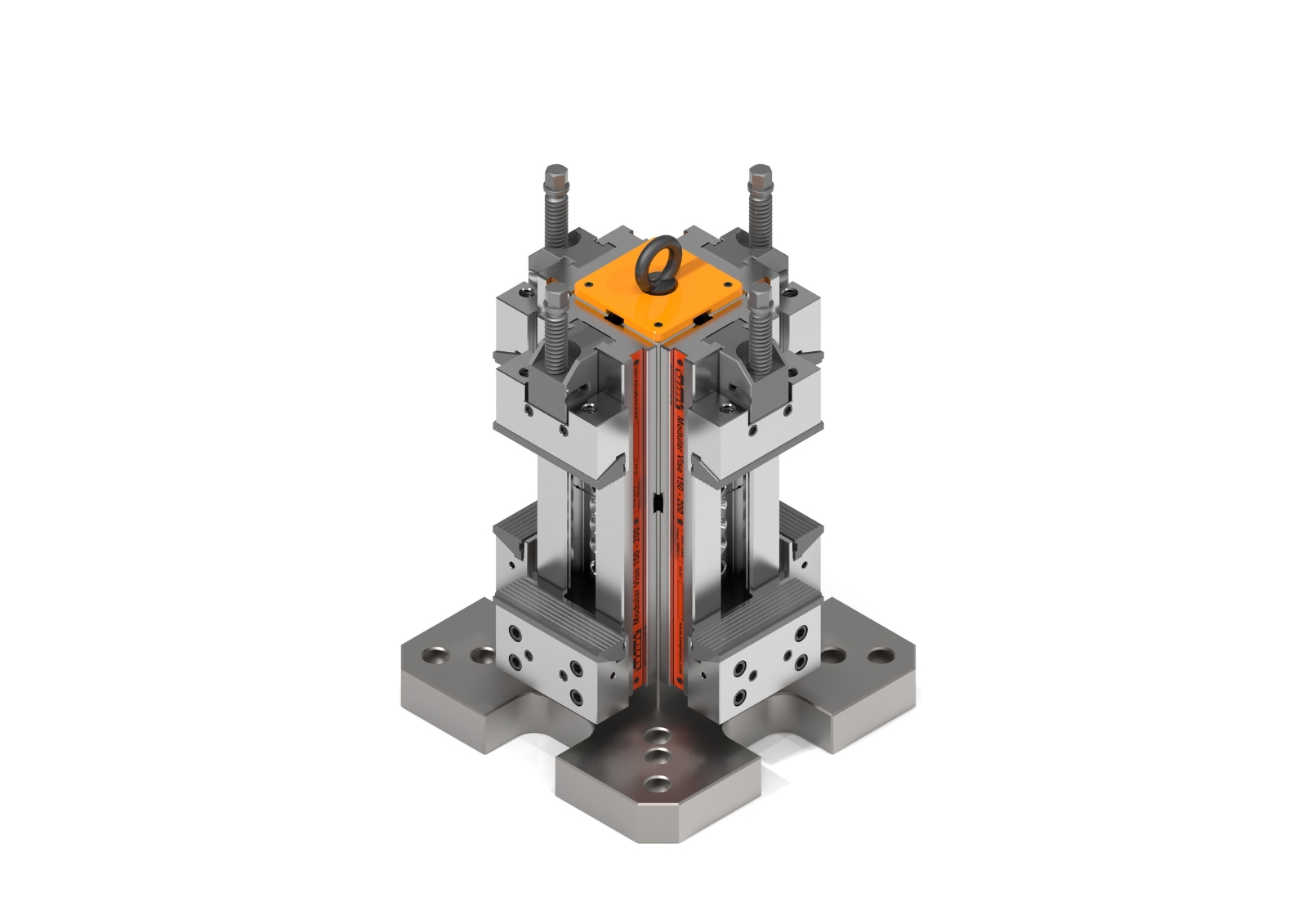

TOMBSTONE 4×90° – MV 150-200
Article number:FG/WH/TOMB/SQURENP004
Scope of Application:
- Modular clamping system for horizontal machining centre.
Clamping Column Features:
- Cast Iron GG 30.
- Heat Treated Normalized
- Alloy steel body and case hardened at 60 HRC with rigid construction and exclusion of vibration
- Parallelism of body is within 0.02 mm vise with pull-down jaws.
- Since the work piece is clamped by pulling down, floating up is prevented in spite of the powerful clamping force.
- Reproducible clamping force are achieved using a torque wrench.
- 4 extra tapped holes over the jaws for special stack type jaw application.
- Clamping range S1 in mm –200
- Max. torque in Nm -100
- Max. clamping force in kN -30
- Weight in kg -227
- Tombstone 4X90° MV 150-200 – 1 Nos.
- MV 150-200 Vise – 4 Nos.
- Allen Key 6mm – 1 Nos
- L-Spanner 21mm – 1 Nos.
- T-type Allen Key-6mm – 1 Nos.
- Tenon 20×16 – 8 Nos.
