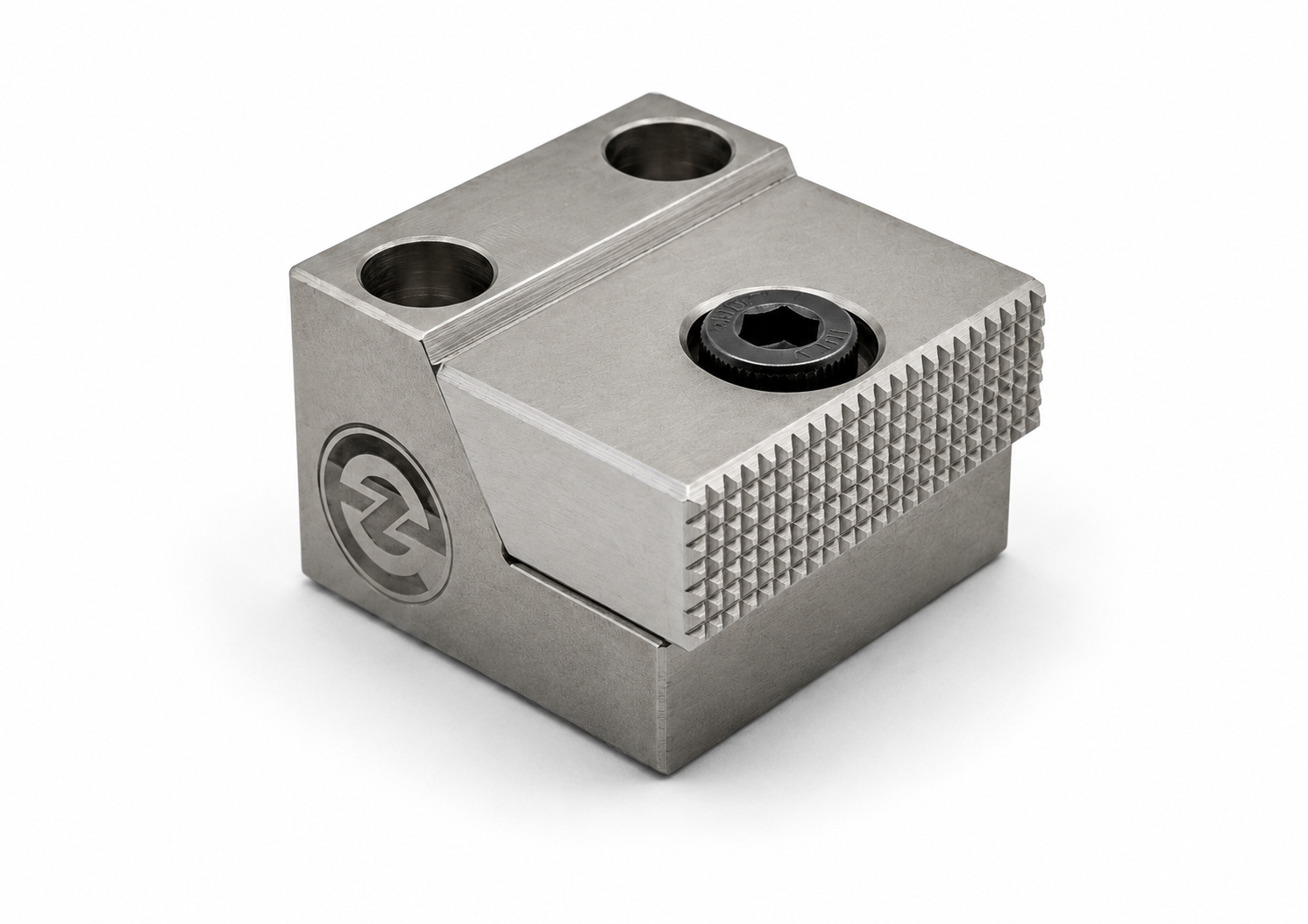

Single Side Wedge Clamp Serrated
Manufacturing and promoted by AMT
Manufacturing and promoted by AMT
Scope of Application
- Easy, fast, and uniform clamping without requiring exact positioning.
- Dedicated fixturing for VMC, HMC & 5 axis machines.
Product Feature
- Designed to clamp securely from one side, making for tight or limited-access areas.
- Tool grade steel body.
- Hardened and Electro Less Nickel Plating.
- Precision-engineered teeth or grip surface prevents slipping during use, ensuring safety and stability.
- Wedge mechanism allows fast tightening and loosening using simple Allen key.
| Article No. | Model No. | A | B | C | D | F | P | S | H | I | WT Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/RCTSLNP001 | BPT/RT/400600-14 | 400 | 600 | 75 | 14 | 100 | 5 | 3 | - | - | 92 | Download | Download |
| FG/WH/BASPL/RCTSLNP003 | BPT/RT/400800-14 | 400 | 800 | 75 | 14 | 100 | 7 | 3 | - | - | 117 | Download | Download |
| FG/WH/BASPL/RCTSLNP004 | BPT/RT/450900-14 | 450 | 900 | 75 | 14 | 100 | 8 | 3 | - | - | 168 | Download | Download |
| FG/WH/BASPL/RCTSLNP002 | BPT/RT/500600-14 | 500 | 600 | 75 | 14 | 100 | 5 | 4 | - | - | 115 | Download | Download |
| FG/WH/BASPL/RCTSLNP005 | BPT/RT/5001000-14 | 500 | 1000 | 75 | 14 | 100 | 9 | 4 | - | - | 198 | Download | Download |
