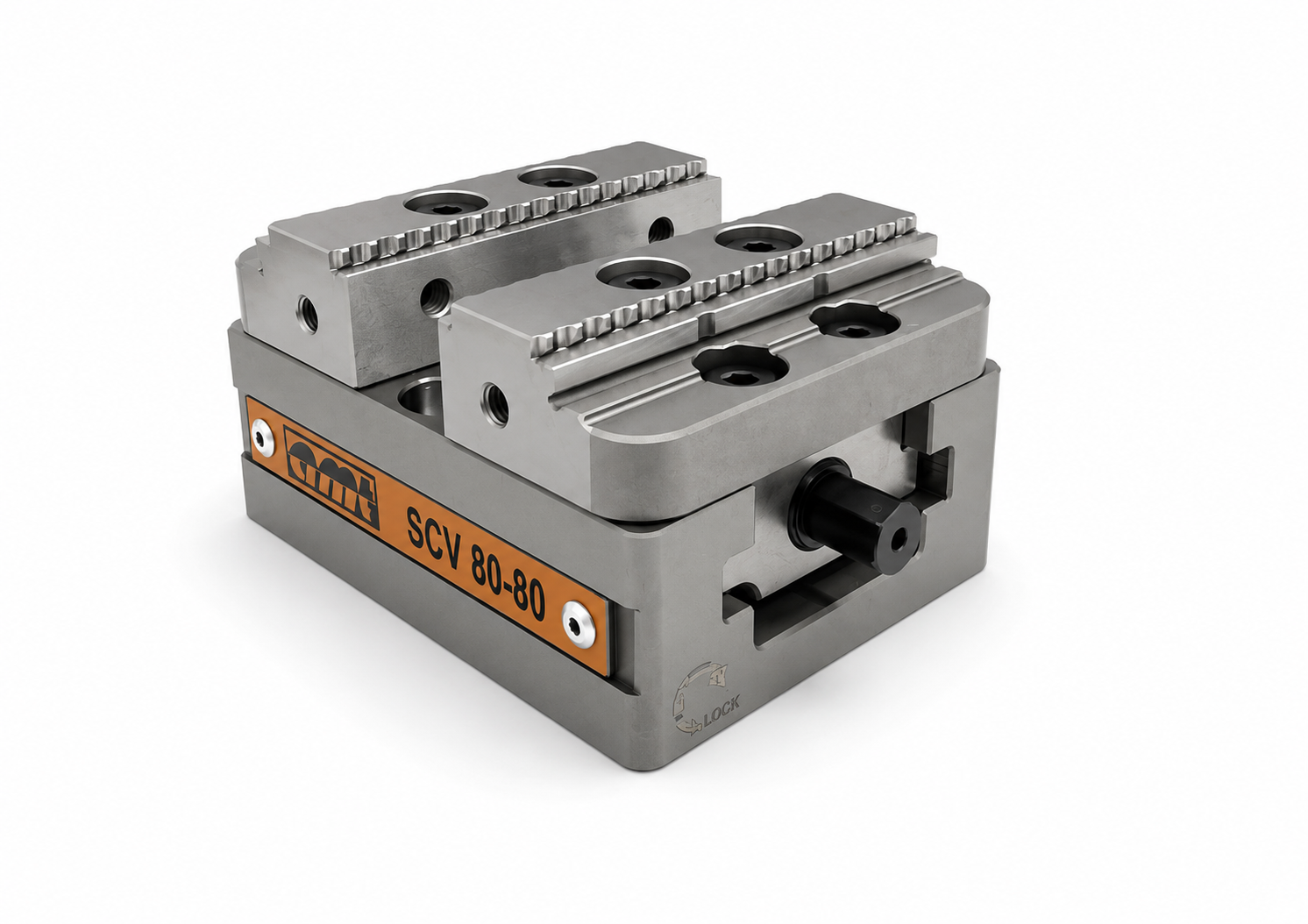

Self Centric Vise SCV 80-80
Article number:FG/VC/SCV/SCV80NP001
Scope of Application
- Ideal for use on 3,4 & 5 axis machining centres due to its compact design.
- Horizontal installation–Suitable for Vertical Machining Centres.
- Vertical installation –Suitable for Horizontal Machining Centres.
Product Features
- Heavy duty high precise self-centric clamping vise with good repeatability.
- Compact design with best accessibility.
- Clamping force – 15 KN with 50 Nm.
- Interface for ZPS clamping and mounting holes as standard.
- Spindle screw high hardness, wear and corrosion resistance.
- 4 bolt jaw mounting for increased clamping force.
- Provision of M6 holes for mounting additional jaws.
- Serrated gripper teeth for superior bite with 45° dovetail provision.
- Featuring a dowel pin for better accuracy in jaws.
- High material savings due to minimal clamping edge requirements.
- 3 mm grip clamping is possible.
- Min. clamping range (Forward Jaw) in mm – 0-36
- Max. clamping range (Forward Jaw) in mm – 6-42
- Min. clamping range (Reversed Jaw) in mm – 38-70
- Max. clamping range (Reversed Jaw) in mm – 44-76
- Jaw width in mm – 80
- Max. torque in Nm – 50
- Max. clamping force in kN – 15
- Weight (net) in kg – 2.5
- Self-Centric vise 80-80 with Clamping Jaws – 1 Nos.
- Work Piece Stopper 125/160 – 1 Nos.
- Ratchet with socket – 1 Nos.
- CAD

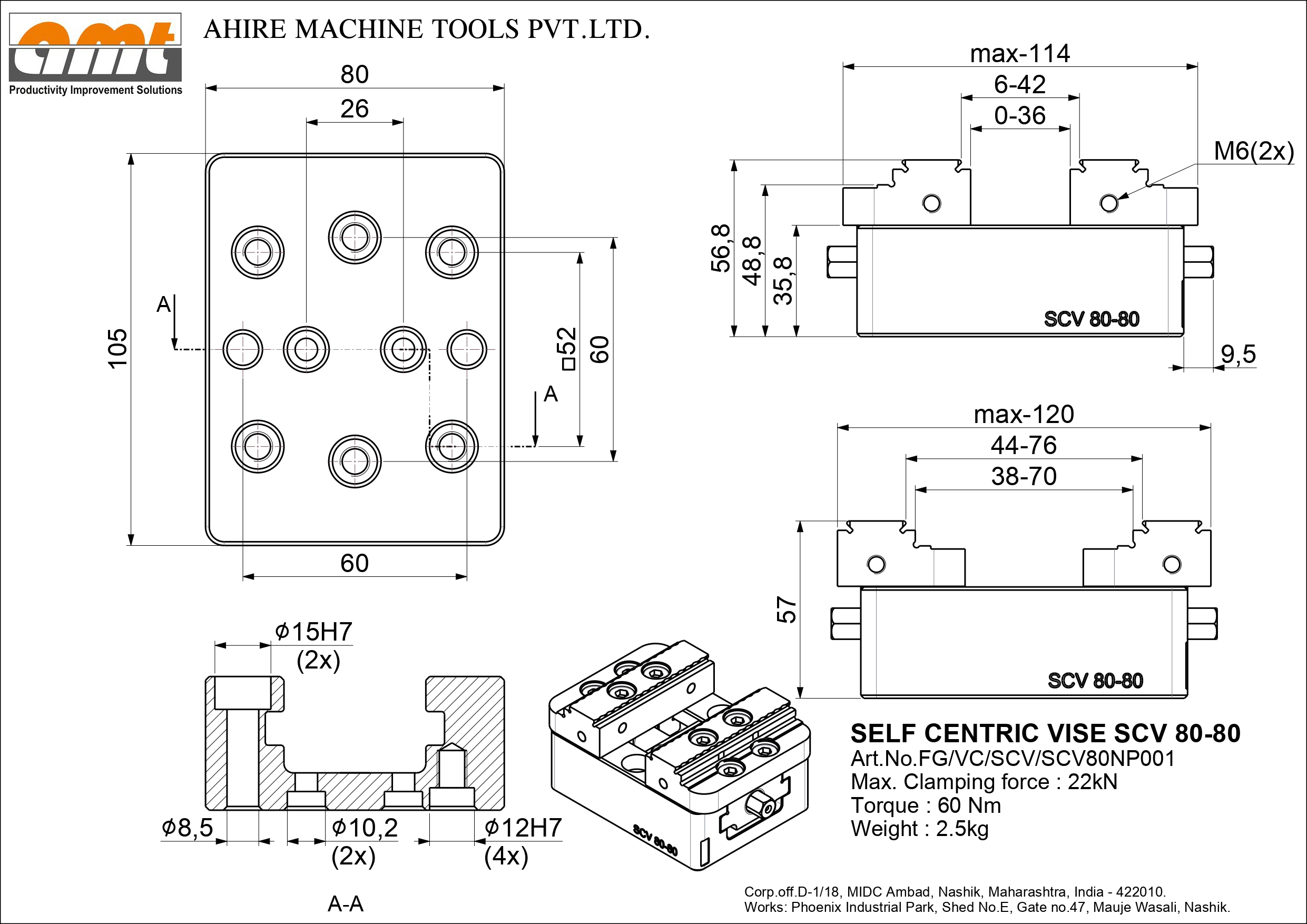

- Technical Information
- Operating Manual
