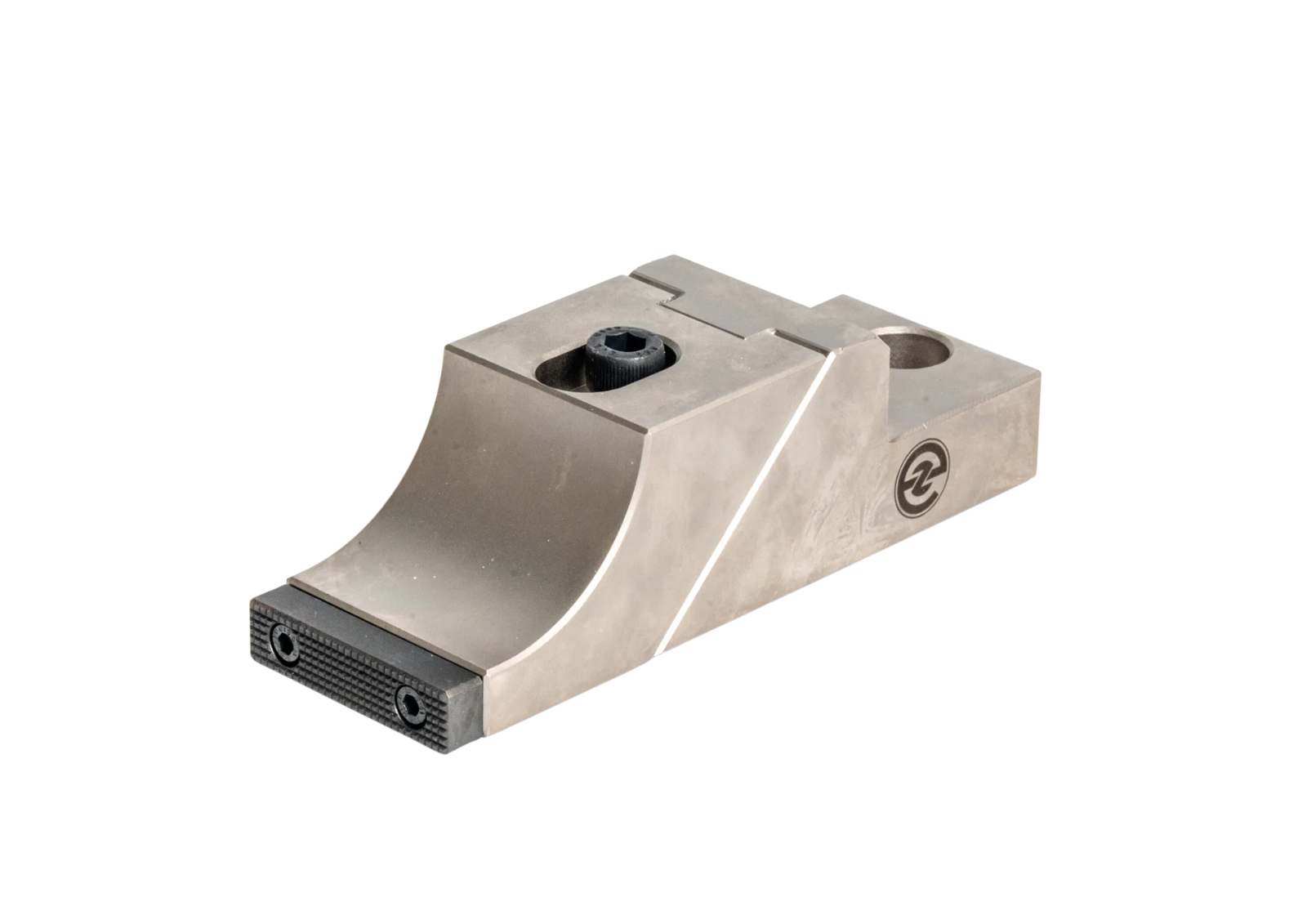

Low Profile Lateral Clamp
Manufacturing and promoted by AMT
Manufacturing and promoted by AMT
Scope of Application
- A low-profile lateral clamp is used in jigs, fixtures, to hold work pieces securely without obstructing the top surface.
- Ideal for precision machining, CNC setups, milling tables, or modular fixturing systems
Product Feature
- Alloy steel clamps and toughened body.
- Jaw plates case-hardened.
- Easily used and clamping element.
- Fast adjustment.
- The jaws are reversible, smooth side for machined parts, serrated side for rough surfaces. We recommend using two bolts to mount the clamp to the machine table.
| Article No. | Model No. | A | B | C | D | F | P | S | H | I | WT Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/RCTSLNP001 | BPT/RT/400600-14 | 400 | 600 | 75 | 14 | 100 | 5 | 3 | - | - | 92 | Download | Download |
| FG/WH/BASPL/RCTSLNP003 | BPT/RT/400800-14 | 400 | 800 | 75 | 14 | 100 | 7 | 3 | - | - | 117 | Download | Download |
| FG/WH/BASPL/RCTSLNP004 | BPT/RT/450900-14 | 450 | 900 | 75 | 14 | 100 | 8 | 3 | - | - | 168 | Download | Download |
| FG/WH/BASPL/RCTSLNP002 | BPT/RT/500600-14 | 500 | 600 | 75 | 14 | 100 | 5 | 4 | - | - | 115 | Download | Download |
| FG/WH/BASPL/RCTSLNP005 | BPT/RT/5001000-14 | 500 | 1000 | 75 | 14 | 100 | 9 | 4 | - | - | 198 | Download | Download |
