PRODUCTS

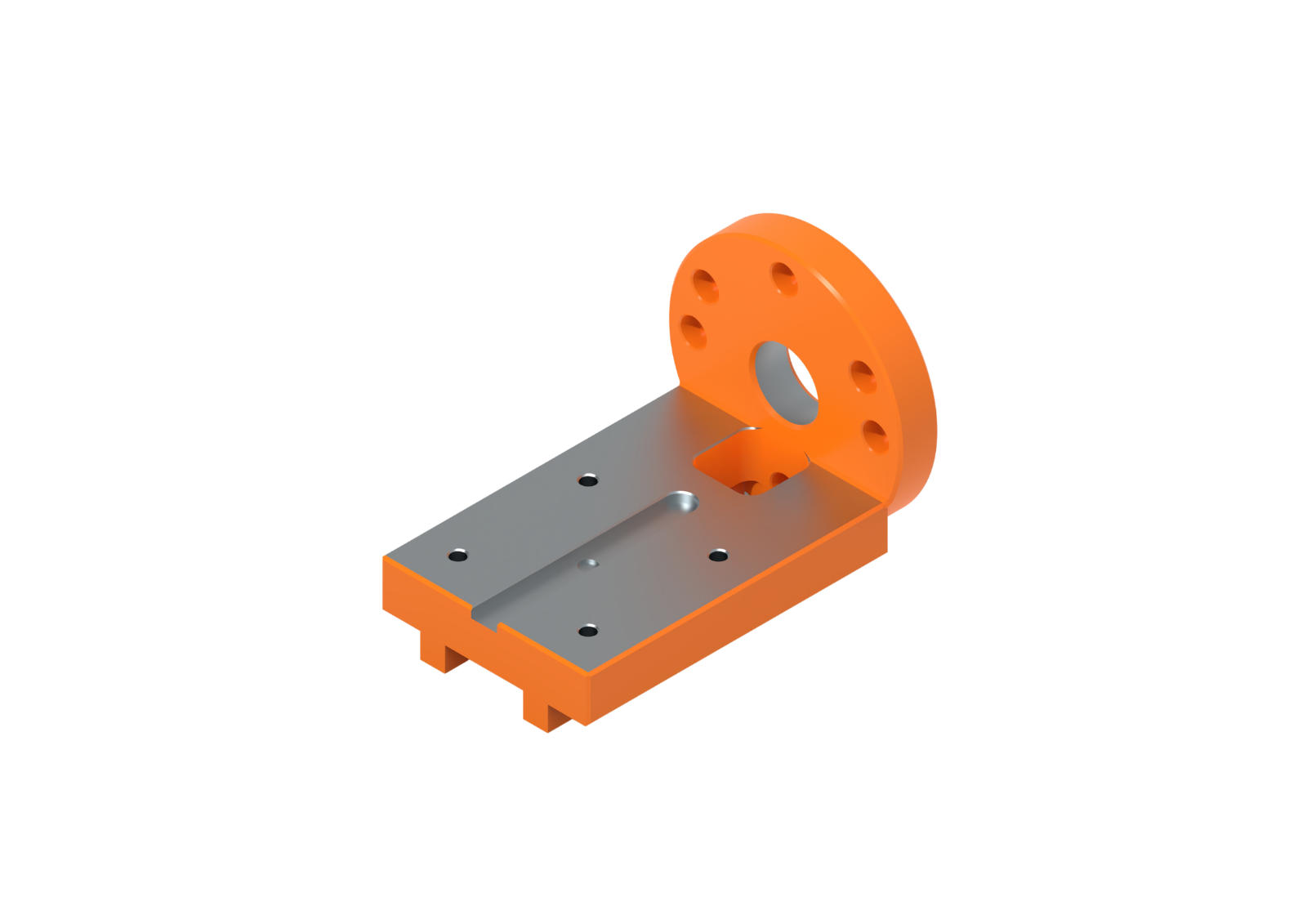

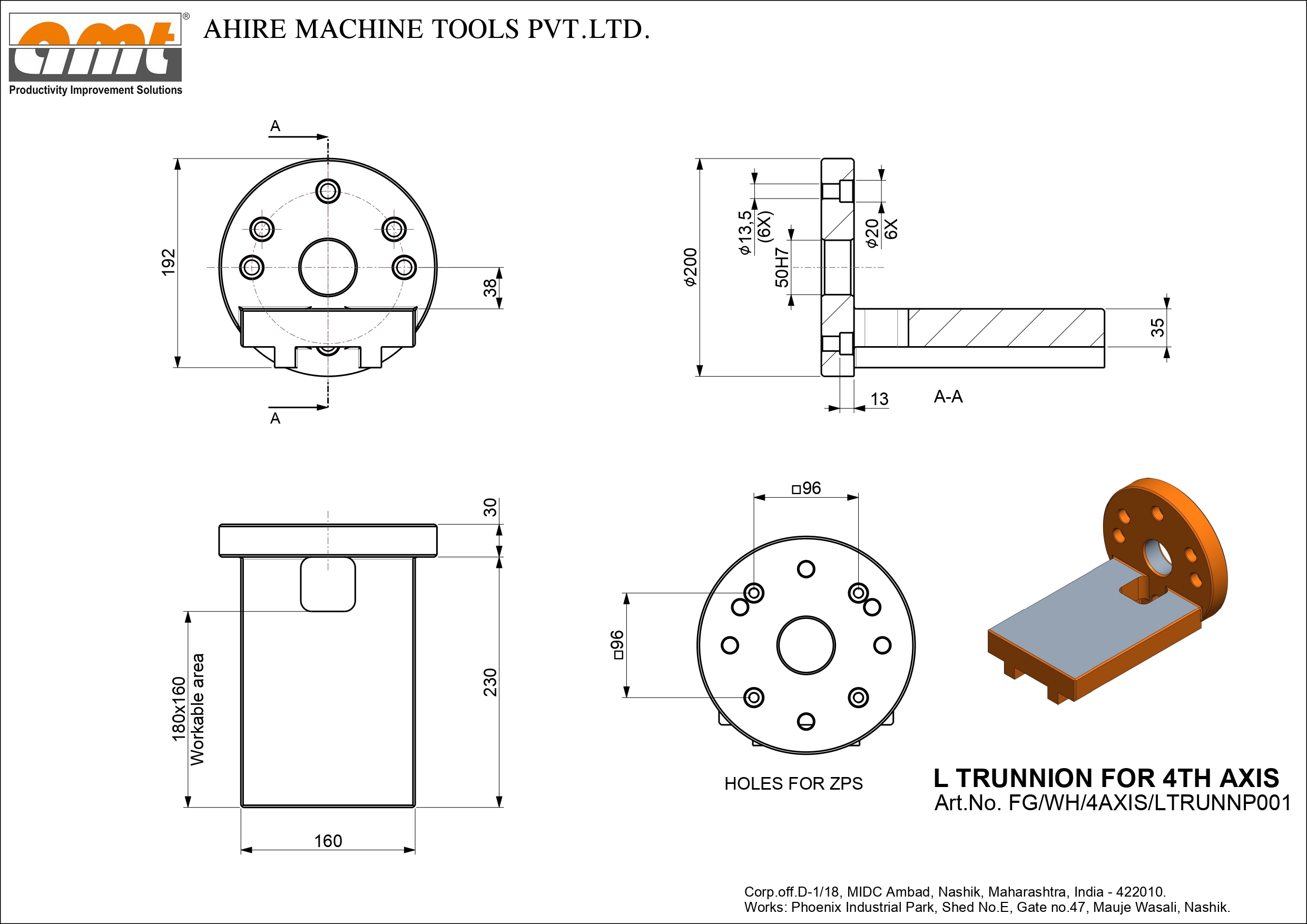

L-Trunnion for 4th Axis
Article number:FG/WH/4AXIS/LTRUNNP001
Scope of Application:
- Used on vertical machining centers (VMC) to enable rotary 4th axis machining.
Product Features
- Material: Cast iron (GG30).
- Heat Treated (Normalized).
- Squareness is within 0.020 mm.
- Flatness is within 0.020 mm.
- Working surface 180×160 mm.
- Compatibility most standard rotary tables.
- Compatibility to ZPS with 96 mm Centre Distance.
- Enables multi-side machining in a single setup.
- Minimizes deflection and improves rigidity during machining.
- Tilting range typically up to ±90°.
- Improves machining efficiency and throughput.
- Weight- 14 Kg
