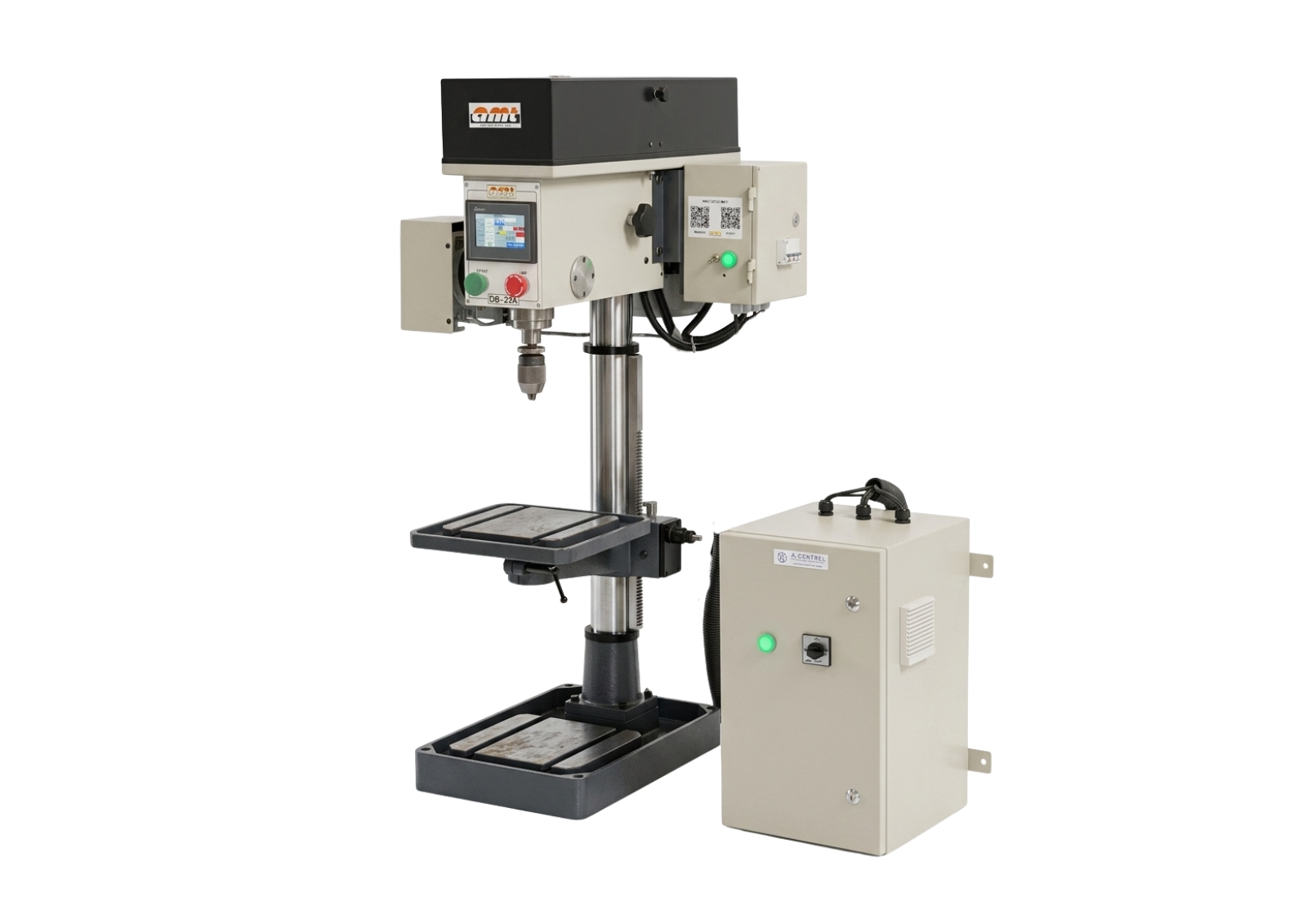

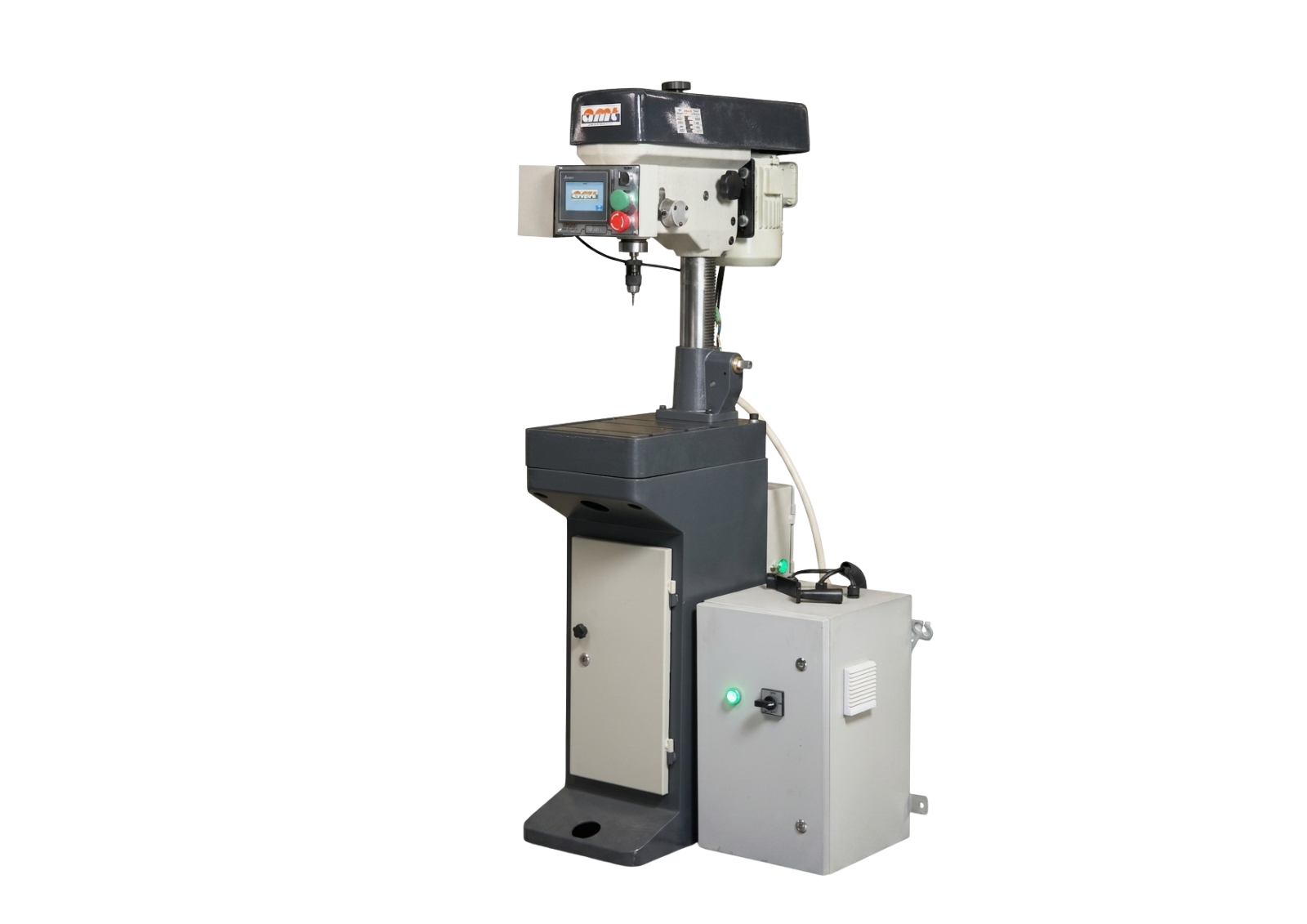

Drilling Machine with Auto feed (A)

Product Feature

High Precision spindle made from alloy steel, hardened & precision ground.
Delta make PLC with HMI
Provision for drilling single & continuous cycle
Helical gear box with stepper motor for Z axis feed
Peck drilling cycle available
Standard drilling programming cycles.
Sensitive precision drilling machine with very high concentricity, especially for electronic & precision engineering
Spindle run out accuracy maintained within 20 microns at spindle nose
Storage capacity of 10 programs.
Dynamically balanced V-belt pulleys guarantee of secure power transmission even in the lower rotation speeds.

Accessories

1. Keyless Drill Chuck
2. Anti-Vibration Mounts
3. Cabinet Box
4. Clamping Vise
5. External Coolant System
6. Cross Table
7. DRO
8. Safety Guard

Type	Type	Bench Drilling Machine	Bench Drilling Machine	Bench Drilling Machine	Column Drilling Machine	Column Drilling Machine
Article No.	Article No.	FG/DM/HISPD/BT-6ANP001	FG/DM/HISPD/DB23ANP001	FG/DM/HISPD/DB28ANP001	FG/DM/HISPD/DC23ANP001	FG/DM/HISPD/DC28ANP001
Description	Units	BT-6A	Model: DB-23A	Model: DB-28A	Model: DC-23A	Model:DC-28A
Drilling capacity in steel (MS)	mm	∅ 0.7-6	∅ 4-15	∅ 4-20	∅ 4-15	∅ 4-20
Tapping capacity in steel (MS)	mm	NA	NA	NA	NA	NA
Spindle Taper	MT	B12	MT2	MT3	MT2	MT3
Spindle Travel for Drilling	mm	50	120	120	120	120
Spindle Travel for Tapping	mm	NA	NA	NA	NA	NA
No. of Spindle Speed	Nos.	8	8	8	8	8
Spindle Speed	RPM	1000-12000	112-2800	112-2800	112-2800	112-2800
Mode of spindle feed for drilling	Auto/ Manual	Auto	Auto	Auto	Auto	Auto
Mode of spindle feed for tapping	Auto / NA	NA	NA	NA	NA	NA
Column Diameter	mm	75	80	80	80	80
Spindle to Column	mm	180	240	240	240	240
Spindle face to work Table	mm	135/380	290	285	590	585
T Slot on Work Table(Size x Qty.)	mm X Nos	12 x 2 Nos (M10)	12 x 2 Nos (M10)	12 x 2 Nos (M10)	12 x 2 Nos (M10)	12 x 2 Nos (M10)
Center Table Working area	mm	255 X 225	235 x 235	235 x 235	235 x 235	235 x 235
Spindle face to base Table	mm	135/380	590	580	1160	1150
T Slot on Base Table(Size x Qty.)	mm X Nos	NA	14 x 2 Nos (M12)	14 x 2 Nos (M12)	14 x 2 Nos (M12)	14 x 2 Nos (M12)
Base Table Size	mm	NA	265 x250	265 x250	265 x250	265 x250
Base Table Working Area	mm	220-285	240 x 240	240 x 240	240 x 240	240 x 240
Motor Power	HP	0.5/0.75	1	2	1	2
Net weight (Approx.)	Kgs.	75	165	165	180	180
Dimensions (W x D x H)	mm	290x620x1560	380x700x1130 480x740x1700	380x700x1130 480x740x1700	380x700x1130 480x740x1700	380x700x1130 480x740x1700
