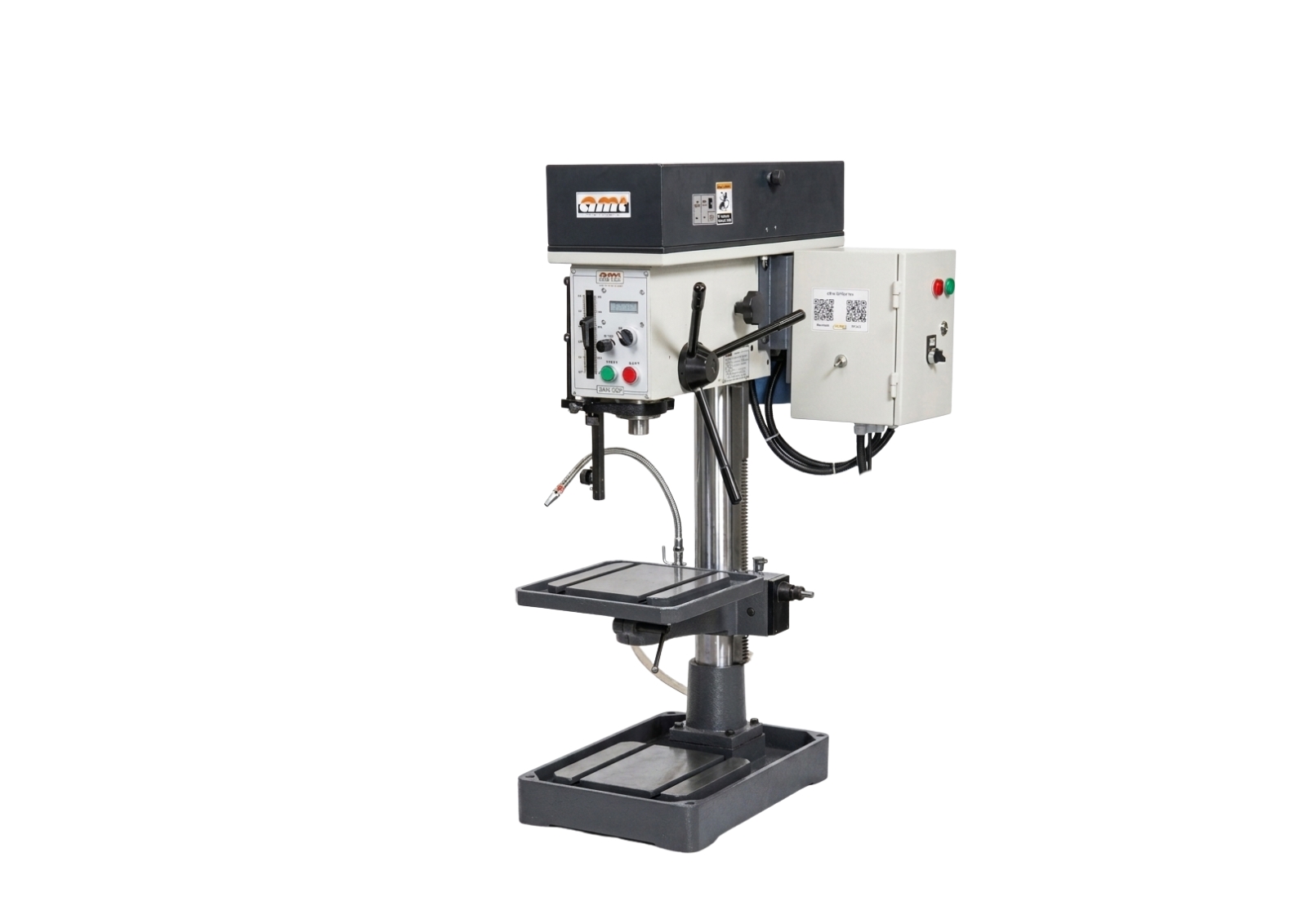

Drilling and Tapping Machine (M4-M16)

Product Feature

High Precision spindle made from alloy steel, hardened & precision ground.
Graded casting and Alloy steel gears.
Robust construction.
Motor with electrical fitments is a standard feature.
Machine has Provision for electric lamp.
Spindle run-out accuracy is within 20 microns.
Easy belt changing through rack and pinion mechanism.
Machine is recommended for Thermal Drilling Operation.
Can be supplied with X Y table and DRO
Spindle Auto-Reversal facility to enable tapping operation.

Accessories

1. Keyless Drill Chuck
2. Anti-Vibration Mounts
3. Cabinet Box
4. Clamping Vise
5. External Coolant System
6. Cross Table
7. DRO
8. Safety Guard

Type	Type	Bench Drilling Machine	Bench Drilling Machine	Column Drilling Machine	Column Drilling Machine
Article No.		FG/DM/REGUL/TDB23NP001	FG/DM/REGUL/TDB28NP001	FG/DM/REGUL/TDC23NP001	FG/DM/REGUL/TDC28NP001
Description	Units	Model: TDB-23	Model: TDB-28	Model: TDC-23	Model: TDC-28
Drilling capacity in steel (MS)	mm	∅ 4-23	∅ 4-28	∅ 4-23	∅ 4-28
Tapping capacity in steel (MS)	mm	M4-M14	M4-M16	M4-M14	M4-M16
Spindle Taper	MT	MT2	MT3	MT2	MT3
Spindle Travel for Drilling	mm	120	120	120	120
Spindle Travel for Tapping	mm	100	100	100	100
No. of Spindle Speed	Nos.	8	8	8	8
Spindle Speed	RPM	56-1400	56-1400	56-1400	56-1400
Mode of spindle feed for drilling	Auto/ Manual	Manual	Manual	Manual	Manual
Mode of spindle feed for tapping	Auto / NA	Manual with Auto Reversal	Manual with Auto Reversal	Manual with Auto Reversal	Manual with Auto Reversal
Column Diameter	mm	80	80	80	80
Spindle to Column	mm	240	240	240	240
Spindle face to work Table	mm	290	285	590	585
T Slot on Work Table(Size x Qty.)	mm X Nos	12 x 2 Nos (M10)	12 x 2 Nos (M10)	12 x 2 Nos (M10)	12 x 2 Nos (M10)
Center Table Working area	mm	235 x 235	235 x 235	235 x 235	235 x 235
Spindle face to base Table	mm	590	580	1140	1130
T Slot on Base Table(Size x Qty.)	mm X Nos	14 x 2 Nos (M12)	14 x 2 Nos (M12)	14 x 2 Nos (M12)	14 x 2 Nos (M12)
Base Table Size	mm	265 x250	265 x250	265 x250	265 x250
Base Table Working Area	mm	240 x 240	240 x 240	240 x 240	240 x 240
Motor Power	HP	1	1.5	1	1.5
Net weight (Approx.)	Kgs.	167	167	182	182
Dimensions (W x D x H)	mm	380x700x1130 480x740x1700	380x700x1130 480x740x1700	380x700x1130 480x740x1700	380x700x1130 480x740x1700
