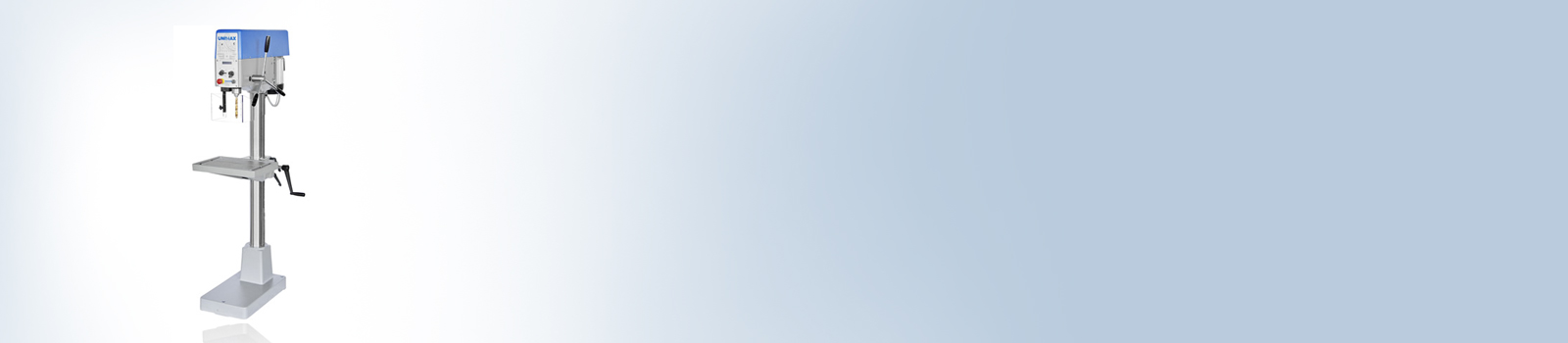

Powerful and precise column drilling machine with large operative range.
Table adjustable via rack and pinion, swivels around column.
Reverse switch for tapping. Adjustment of speed by potentiometer.
Electric supply 230 V.
| Description | Unit | UNIMAX 2S |
|---|---|---|
| Constant capacity in E 335 | mm | 18 |
| Standard capacity | mm | 20 |
| Thread capacity | M | 12 |
| Spindle | MT | 2 |
| Spindle travel | mm | 100 |
| Spindle to column | mm | 225 |
| Spindle to table | mm | 55 to 880 |
| Table surface | mm | 450 x 315 |
| Column diameter | mm | 90 |
| Total height | mm | 1,745 |
| Weight | kg | 170 |
| Frequency-controlled 3-phase motor | kW | 1.5 |
| Stepless rotation speeds | ||
| Range A | rpm | 100-2000 |
| Range B | rpm | 200-4000 |
