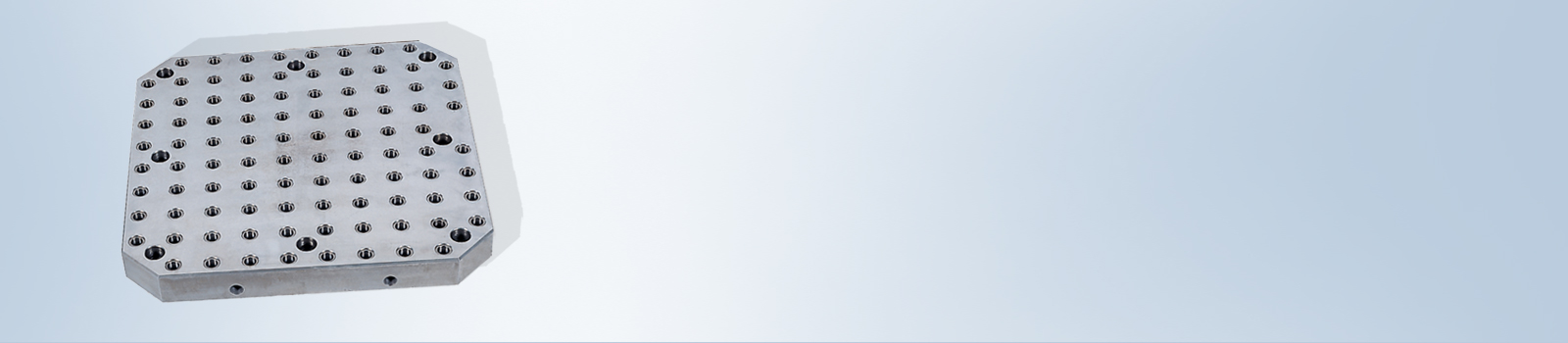

Material : Cast Iron GG30 (DIN) / C45
Heat Treated (Normalized)
Features : 1) Alignment bushing
2) Threaded Insert
3) MTP hole spacing : 50±0.02
4) Grid Holes available in M12 & M16
5) Easily adapts to standardized jig components.
Application : Horizontal machining center.
| Model No. | A | B | C | E | H | P | S | MTP | Mounting Holes | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| BPG/SQ/400 | 50 | 400 | 320 | 55 | 50 | 7 | 7 | 59 | 4 | 54 |
| BPG/SQ/500 | 50 | 500 | 400 | 75 | 50 | 9 | 9 | 93 | 8 | 83 |
| BPG/SQ/630 | 50 | 630 | 500 | 100 | 50 | 11 | 11 | 139 | 8 | 135 |
| BPG/SQ/800 | 50 | 800 | 640 | 135 | 50 | 15 | 15 | 237 | 8 | 206 |
