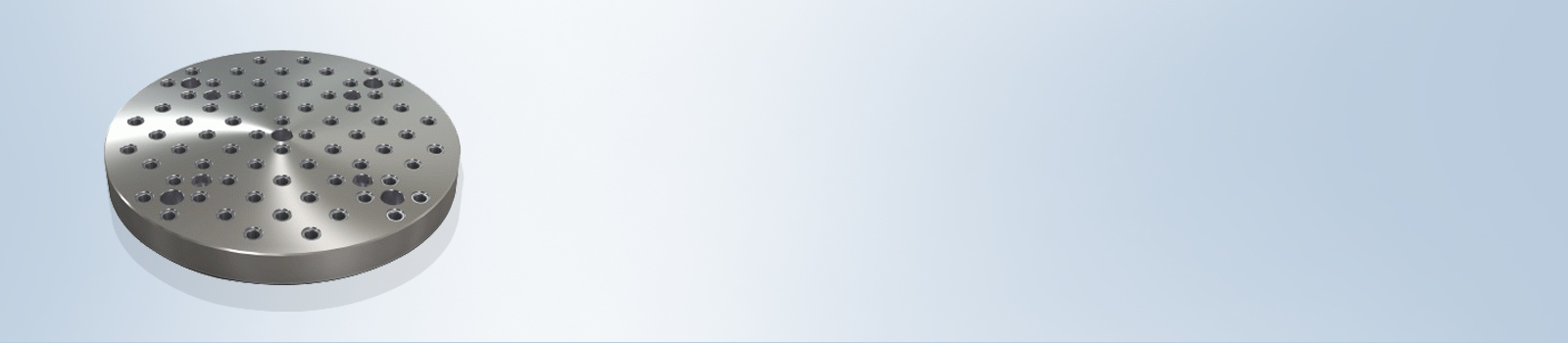

Material : Cast Iron GG30 (DIN) / C45
Heat Treated (Normalized)
Features : 1) Alignment bushing
2) Threaded Insert
3) MTP hole spacing : 50±0.02
4) Grid Holes available in M12 & M16
5) Easily adapts to standardized jig components.
Application : NC rotary table or Indexer.
| Model No. | A | C | D | E | G | S | MTP | Kg | |
|---|---|---|---|---|---|---|---|---|---|
| BPG/R/D300 | Ø12 | M12 | 300 | 150 | 220 | 50 | 5 | 24 | 23 |
| BPG/R/D400 | Ø12 | M12 | 400 | 250 | 320 | 50 | 7 | 44 | 42 |
| BPG/R/D500 | Ø12 | M12 | 500 | 300 | 400 | 50 | 9 | 68 | 70 |
| BPG/R/D600 | Ø12 | M12 | 600 | 400 | 500 | 50 | 11 | 96 | 98 |
| BPG/R/D500 | Ø16 | M16 | 500 | 300 | 400 | 50 | 9 | 68 | 68 |
| BPG/R/D600 | Ø16 | M16 | 600 | 400 | 500 | 50 | 11 | 96 | 95 |
