• Material : Cast iron GG30(DIN)
• Heat treated (Normalized)
• Features : • Alignment bushing
• Threaded insert
• MTP Hole Spacing: 50± 0.02
• Grid holes available in M12 & M16
• Easily adapts to standardized
• Jig components
• Application : Vertical machine centres
Horizontal machine centres

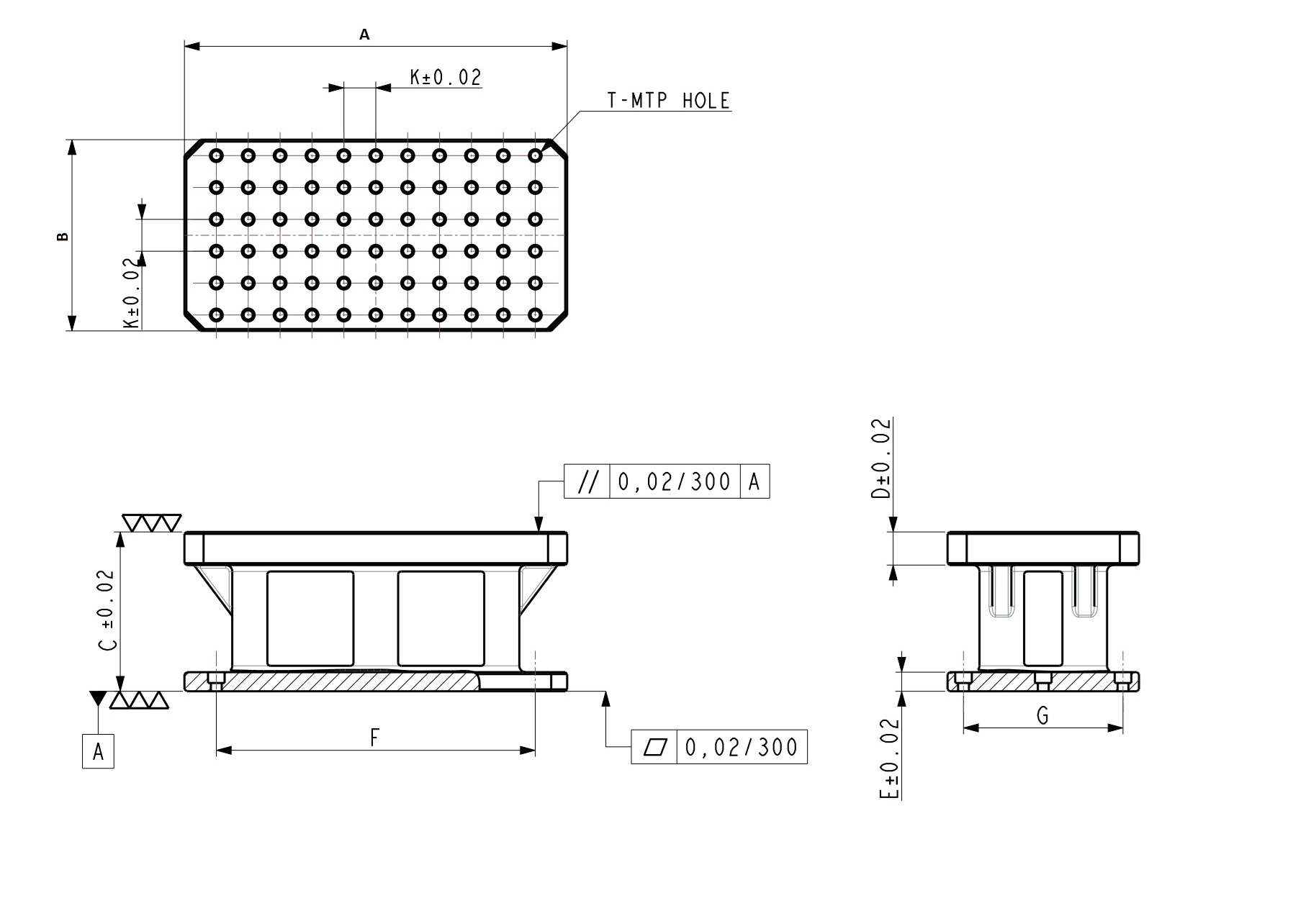

| MODEL | A | B | C | D | E | F | G | K | kg |
|---|---|---|---|---|---|---|---|---|---|
| RTG/SQ/400400/250 | 400 | 400 | 250 | 52 | 30 | - | - | 50 | 94 |
| RTG/SQ/500500/250 | 500 | 500 | 250 | 52 | 30 | - | - | 50 | 102 |
| RTG/RT/600300/250 | 600 | 300 | 250 | 52 | 30 | - | - | 50 | 135 |
| RTG/RT/800400/250 | 800 | 400 | 250 | 52 | 30 | - | - | 50 | 233 |
| RTG/RT/1000500/250 | 1000 | 500 | 250 | 52 | 30 | - | - | 50 | 382 |
