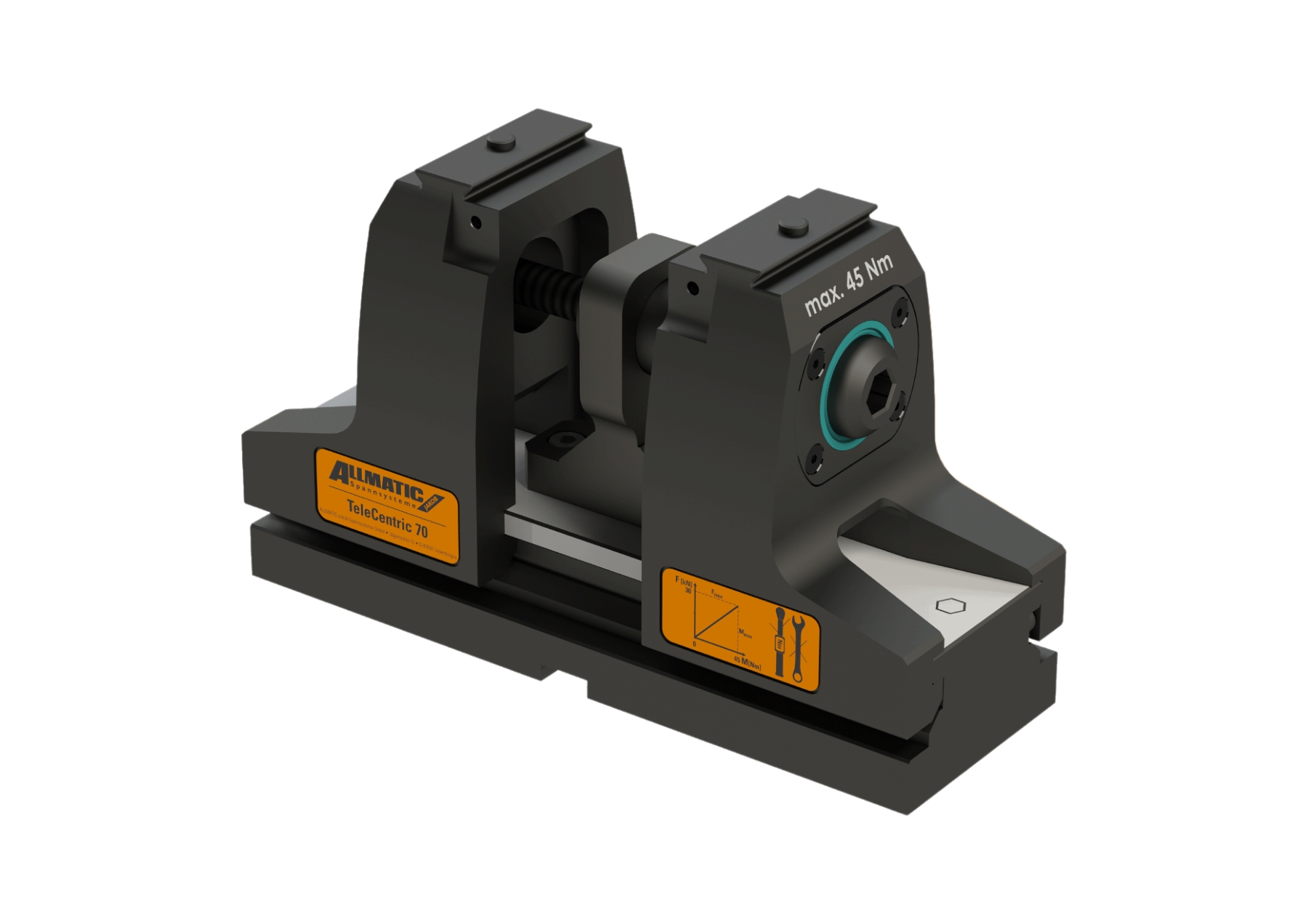

Telecentric 70
Article number:6921548000255
Scope of Application
- Ideal for use in 5-axis machining
- Self-centering vice
- Clamping of raw and pre-machined parts – gripp clamping also possible
- Jaw width 70 mm
- Clamping range 9-135 mm
- (0-69 mm with zero-jaw)
Product Features
- Alloy steel body & case hardened.
- Constant clamping force of 30 kN at 45 Nm tightening torque
- Symmetrical shape due to telescopic spindle:
- optimal accessibility of the work piece
- work piece remains central and parallel, interference contour unchanged
- simple programming without zero-point offset
- Support height of the work piece 192 mm
- Quick change jaw system:
- tool-free jaw change within 10 seconds per jaw pair
- jaws reversible for clamping range of 9 mm to 135 mm
- The use of the zero-jaw reduces the minimum clamping range from 9 to 0 mm
- Standard with locating holes for zero-point clamping systems; inside micrometre 200 mm
- Additional attachment to machine table with side clamps
- Operation with torque wrench
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

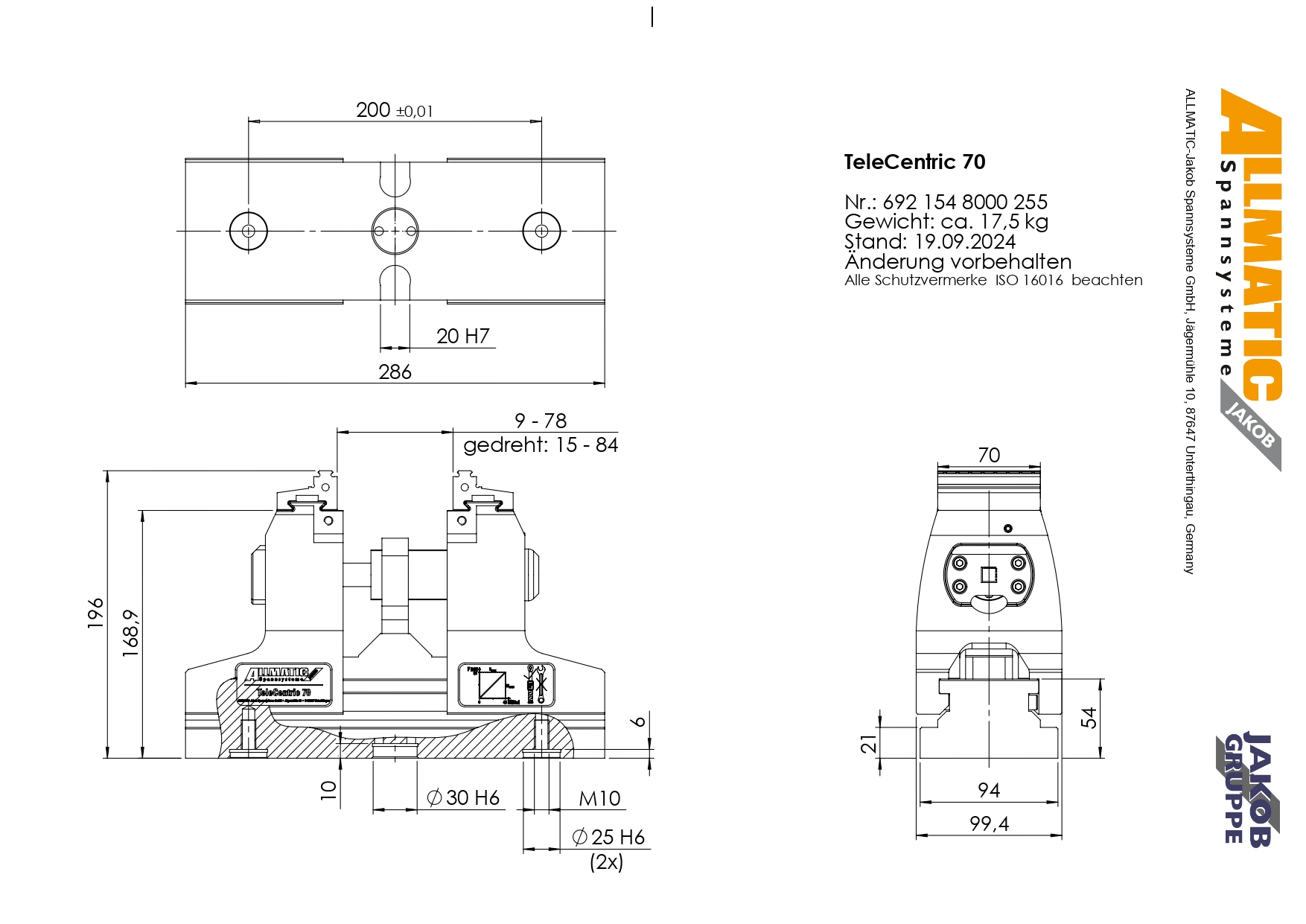

- CAD
- Technical Information
- Operating Manual
