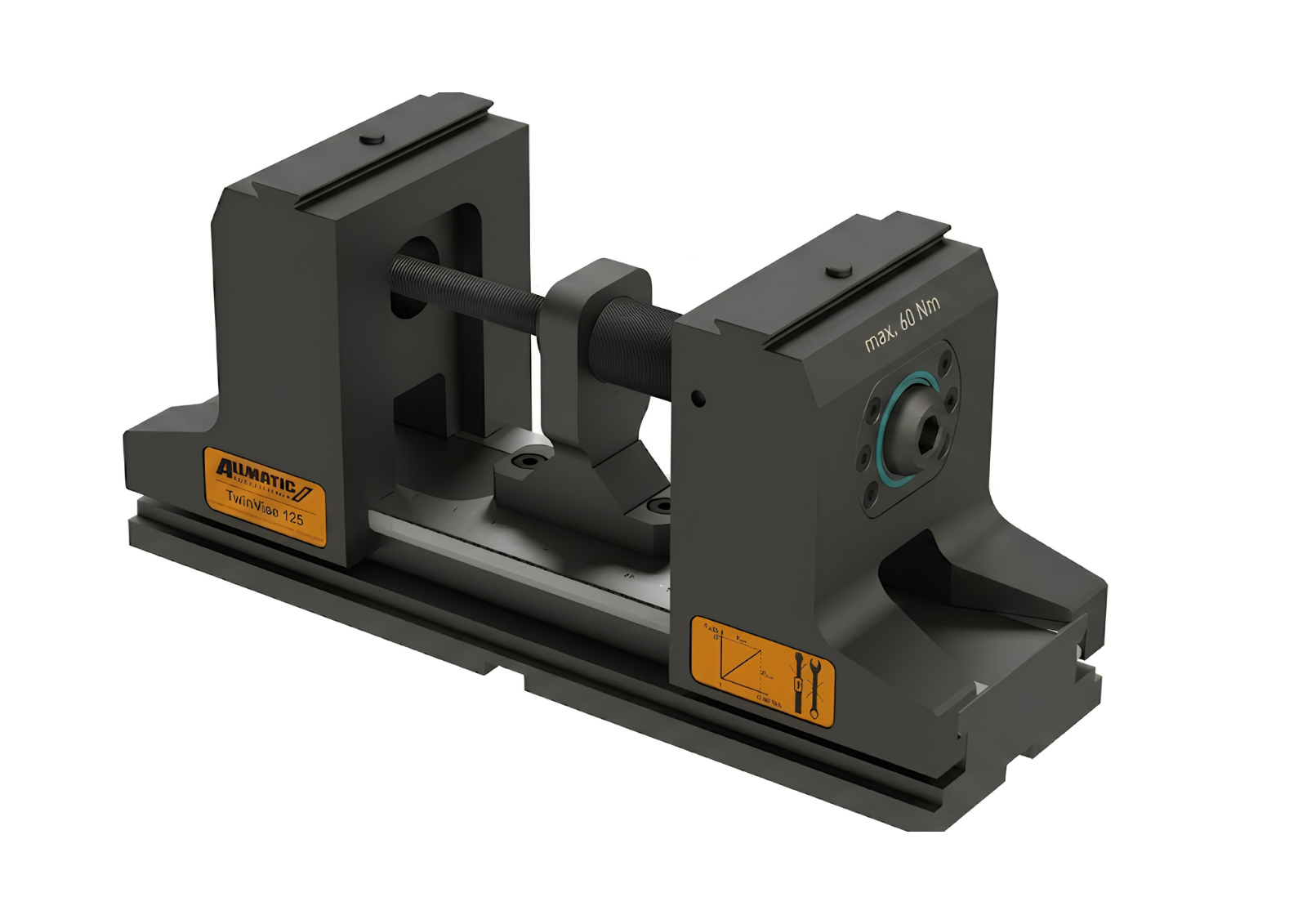

Telecentric 125
Article number:6921558000055
Scope of Application
- Ideal for use in 5-axis machining
- Centric vice
- Conventional clamping and Gripp clamping possible
Product Features
- Alloy steel body & case hardened.
- Clamping force 40 kN at 60 Nm linear
- Telescopic spindle, interference contour remains unchanged
- Central, simple programming without zero-point offset
- Accessibility of the work piece depends on the chuck capacity
- Symmetrical construction shape = work piece remains central and parallel
- Support height of the work piece 202 mm
- Quick change jaw system, tool-free jaw change due to quick-action closure within 10 seconds per jaw pair
- Reversible jaws: for clamping range of 44 mm to 227 mm
- The use of a clamping range adapter reduces the minimum clamping range from 44 to 11 mm.
- Constant clamping force via low-maintenance telescopic spindle
- Provided as standard with locating holes for a zero-point clamping system, inside micrometer 200 mm.
- Additional attachment to machine table with side clamps.
- Integrated scaling for fine adjustment of the central position.
- Operation with torque wrench.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

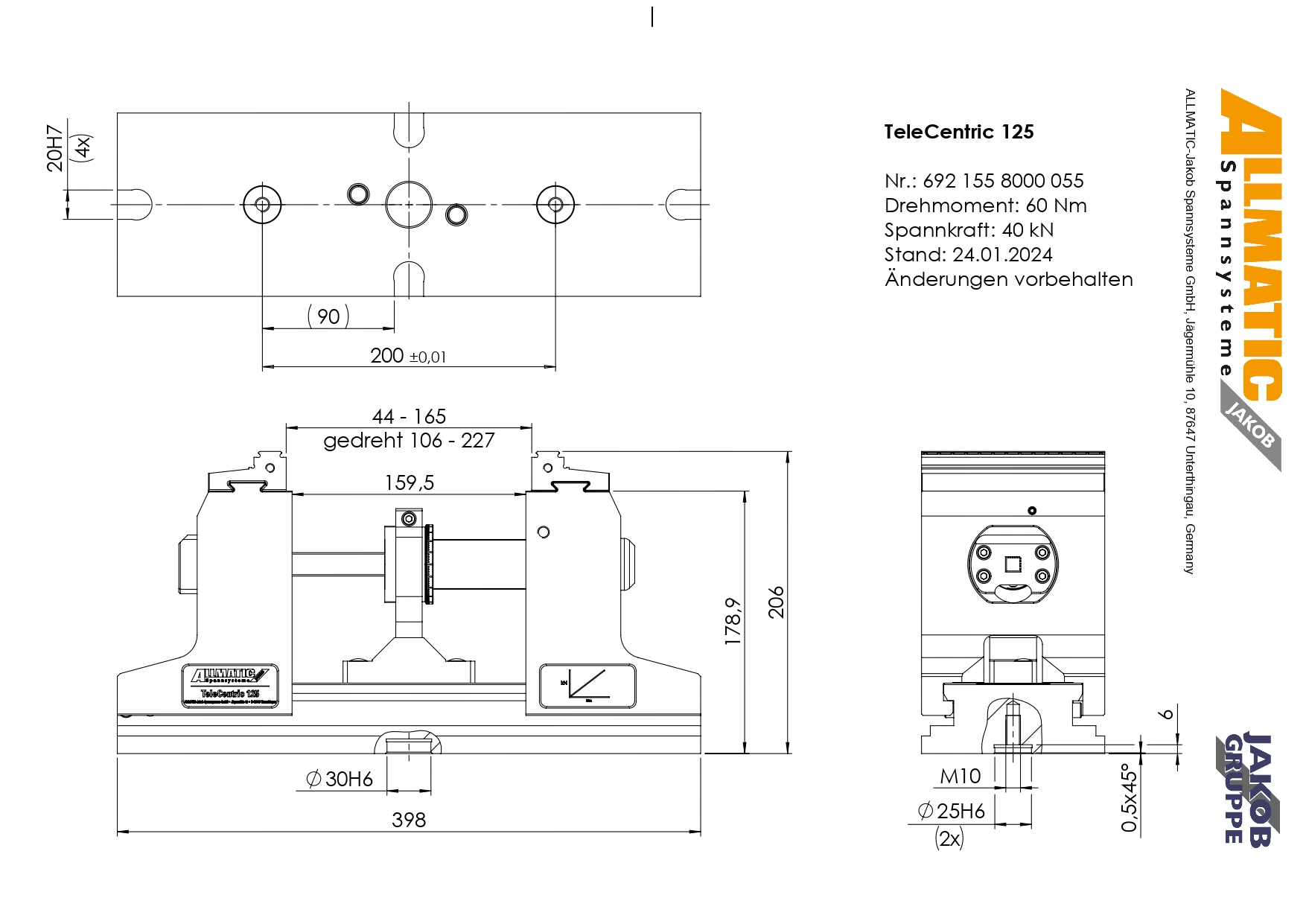

- CAD
