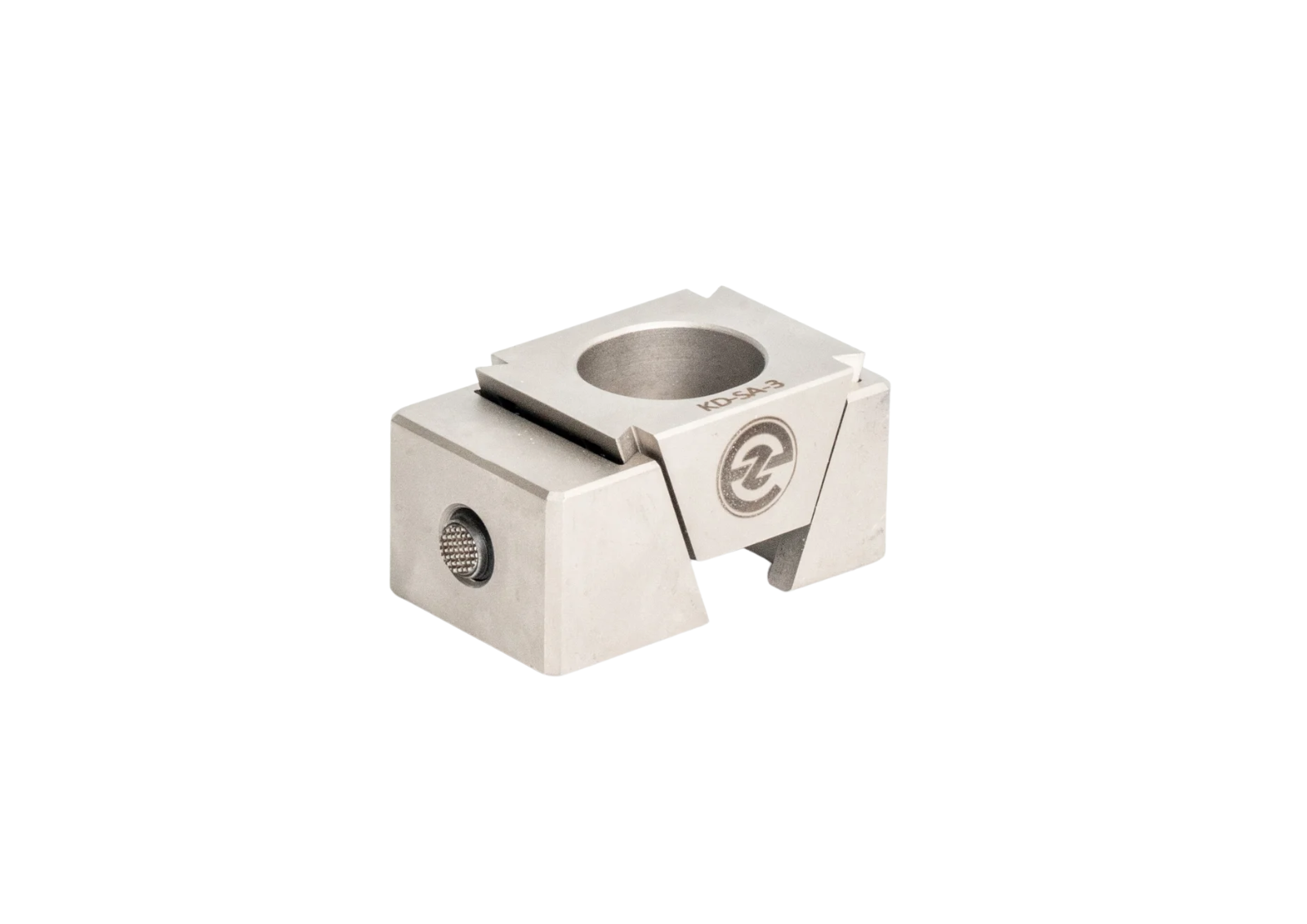

Self-Aligning Wedge Clamp
Manufacturing and promoted by AMT
Manufacturing and promoted by AMT
Scope of Application
- A Self-Aligning Wedge Clamp is a mechanical device designed to aligning and securely clamp components.
- Easy, fast, and uniform clamping without requiring exact positioning.
- Dedicated fixturing for VMC, HMC & 5 axis machines.
Product Feature
- Aligning to the shape and position of the component.
- Eliminates the need for precise manual alignment.
- Free tool access to the work piece.
- Wedge mechanism ensures strong, uniform pressure.
- Ideal for multiple clamping but also suitable for individual clamping.
| Article No. | Model No. | A | B | C | D | F | P | S | H | I | WT Kg | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/RCTSLNP001 | BPT/RT/400600-14 | 400 | 600 | 75 | 14 | 100 | 5 | 3 | - | - | 92 | Download | Download |
| FG/WH/BASPL/RCTSLNP003 | BPT/RT/400800-14 | 400 | 800 | 75 | 14 | 100 | 7 | 3 | - | - | 117 | Download | Download |
| FG/WH/BASPL/RCTSLNP004 | BPT/RT/450900-14 | 450 | 900 | 75 | 14 | 100 | 8 | 3 | - | - | 168 | Download | Download |
| FG/WH/BASPL/RCTSLNP002 | BPT/RT/500600-14 | 500 | 600 | 75 | 14 | 100 | 5 | 4 | - | - | 115 | Download | Download |
| FG/WH/BASPL/RCTSLNP005 | BPT/RT/5001000-14 | 500 | 1000 | 75 | 14 | 100 | 9 | 4 | - | - | 198 | Download | Download |
