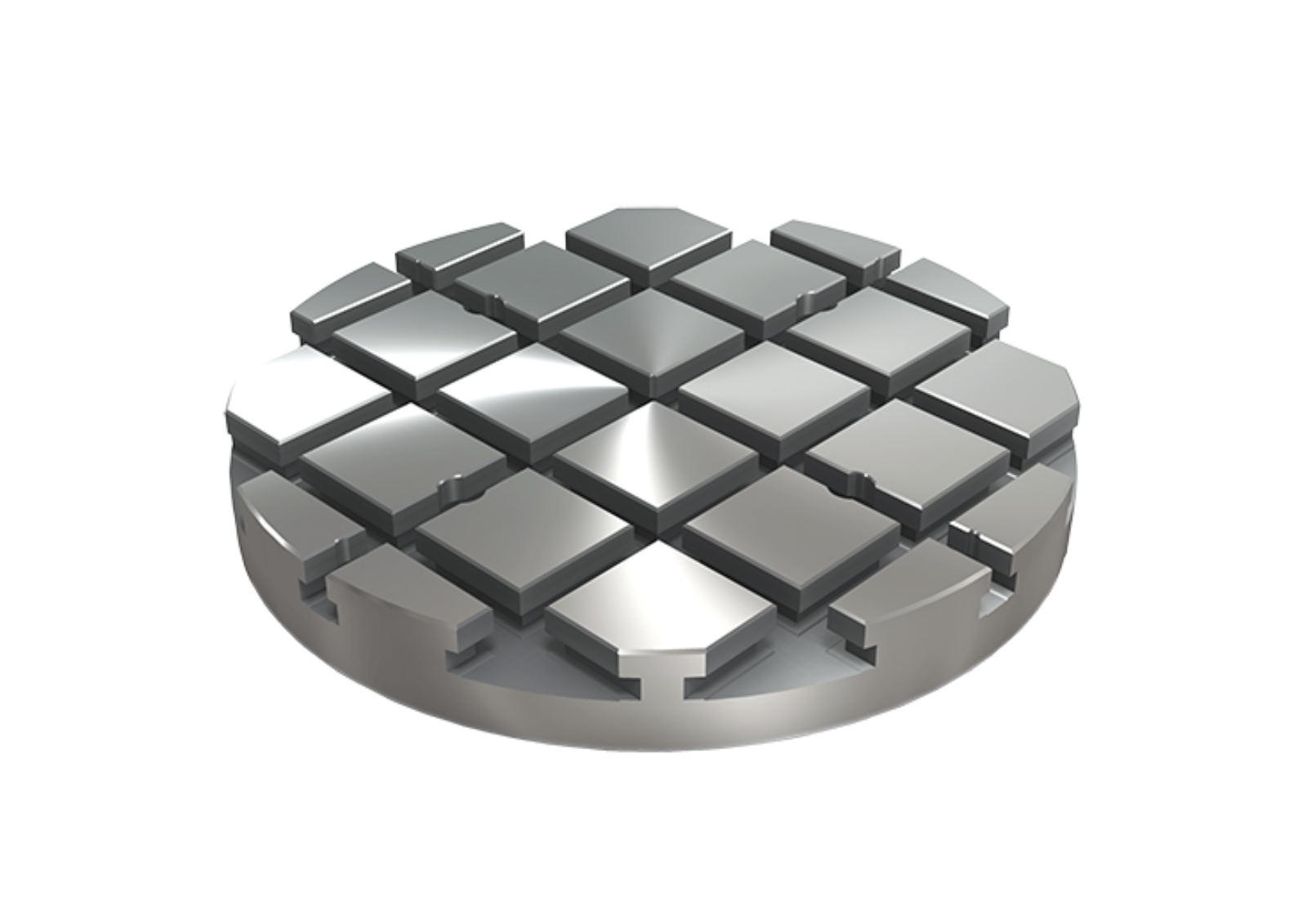

Round Base Plate T-Slot
Scope of Application
- NC rotary table or Indexer.
Product Features
- Material: cast iron GG30(DIN)/C45
- Heat Treated Normalized
- T-slot available in 14 & 18mm
- T-slot running in 2 directions.
- Easily adapts to standardized jig components.

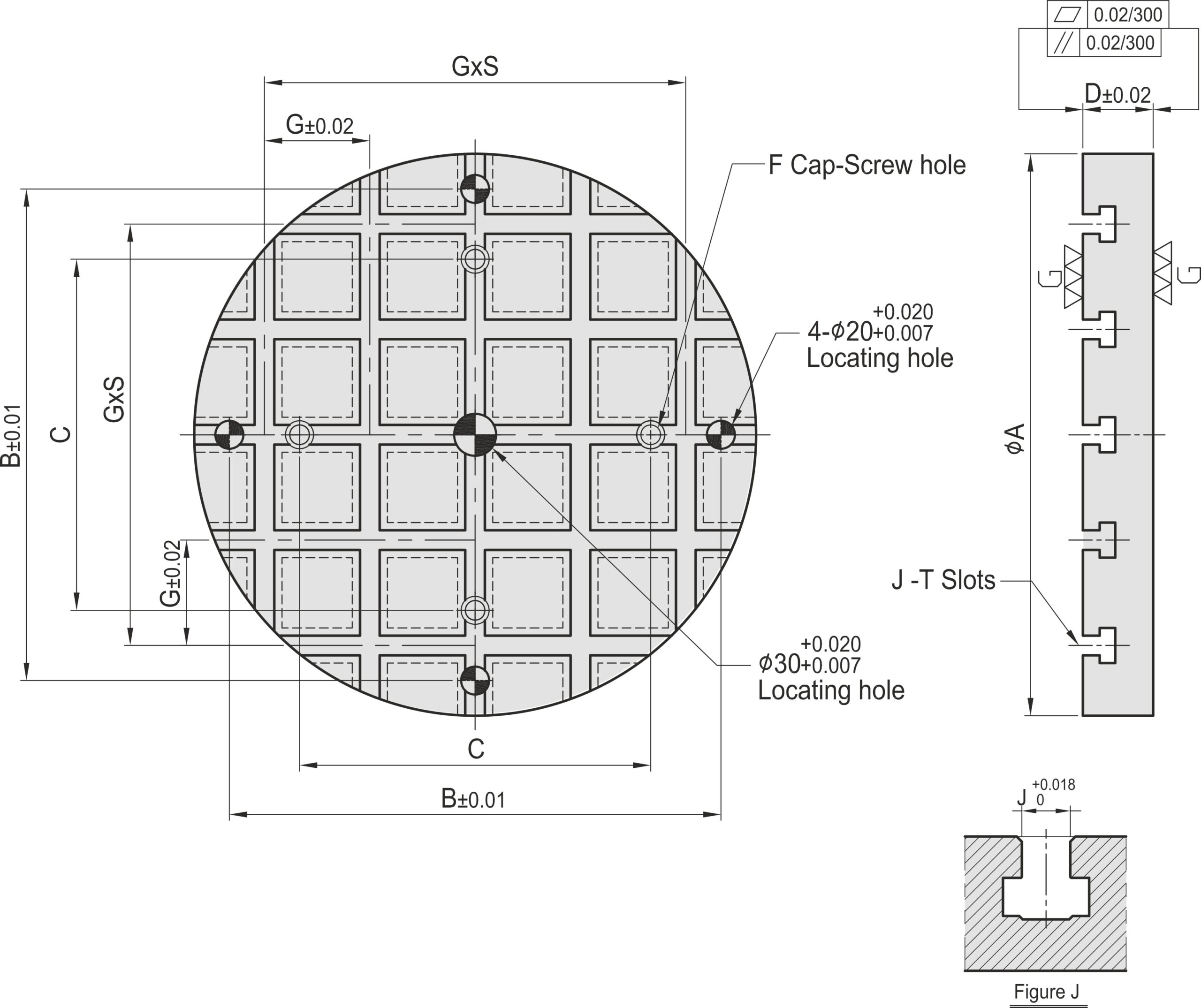

| Article No. | Model No. | A | B | C | D | F | G | S | J | Wt. KG | 2D (PDF) | 3D (STEP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG/WH/BASPL/RDTSLNP001 | BPT/R/D400-14 | 300 | 250 | 150 | 50 | M12 | 75 | 2 | 14 | 22 | ||
| FG/WH/BASPL/RDTSLNP002 | BPT/R/D500-14 | 400 | 350 | 250 | 50 | M12 | 75 | 4 | 14 | 36 | ||
| FG/WH/BASPL/RDTSLNP003 | BPT/R/D630-18 | 500 | 450 | 300 | 65 | M16 | 100 | 4 | 18 | 74 | ||
| FG/WH/BASPL/RDTSLNP004 | BPT/R/D800-18 | 600 | 550 | 400 | 65 | M16 | 100 | 4 | 18 | 110 |
