PRODUCTS

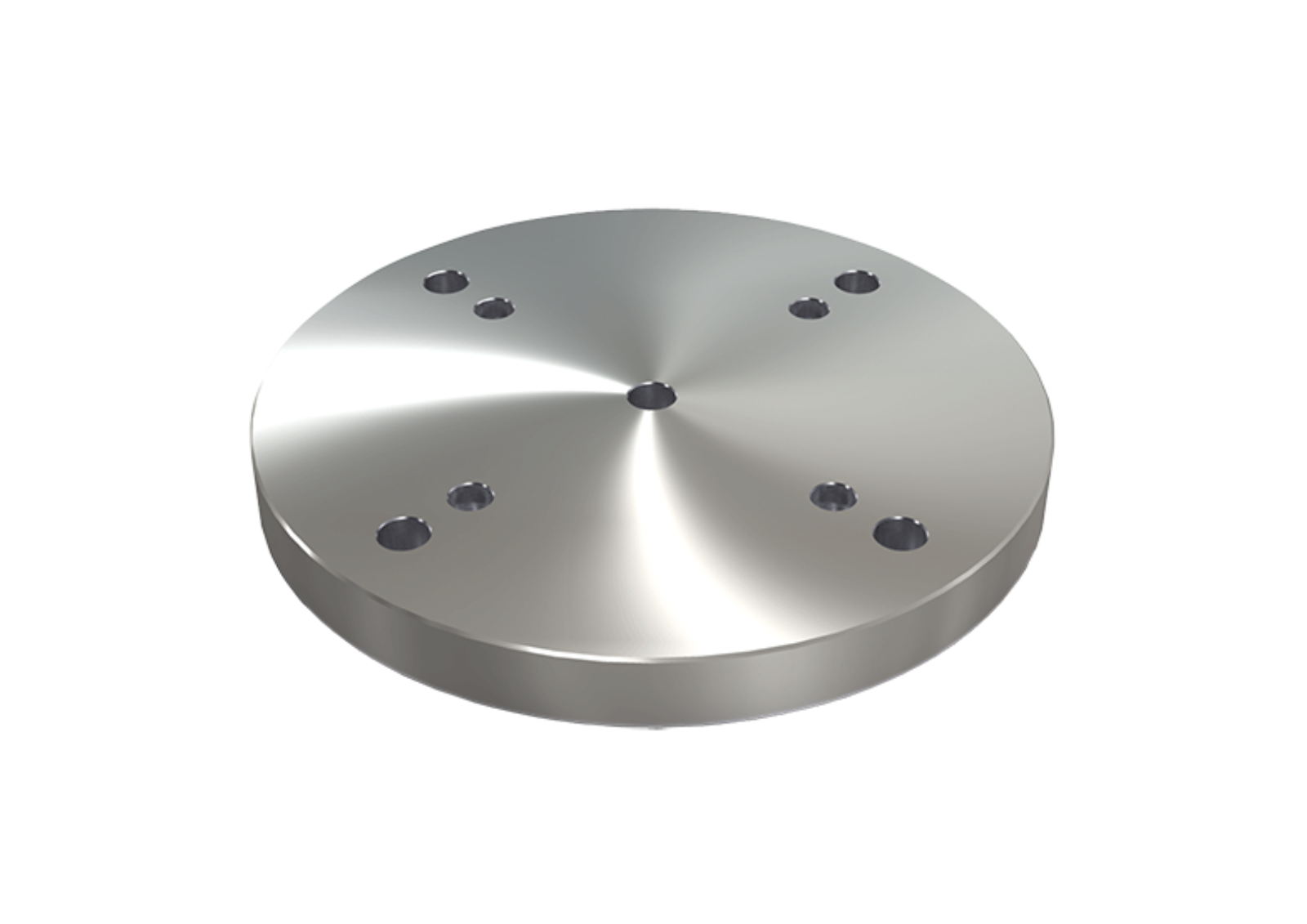

Round Base Plate – Plain

Scope of Application

  • NC rotary table or Indexer
Product Features
  • Material: cast iron GG30(DIN)/C45
  • Heat Treated Normalized.
  • Can be special ordered with any size.
  • Thickness available from 35mm to 50mm.
Send Enquiry
Download Catalogue
Scope of Supply- Round Base Plate – 1 Nos.

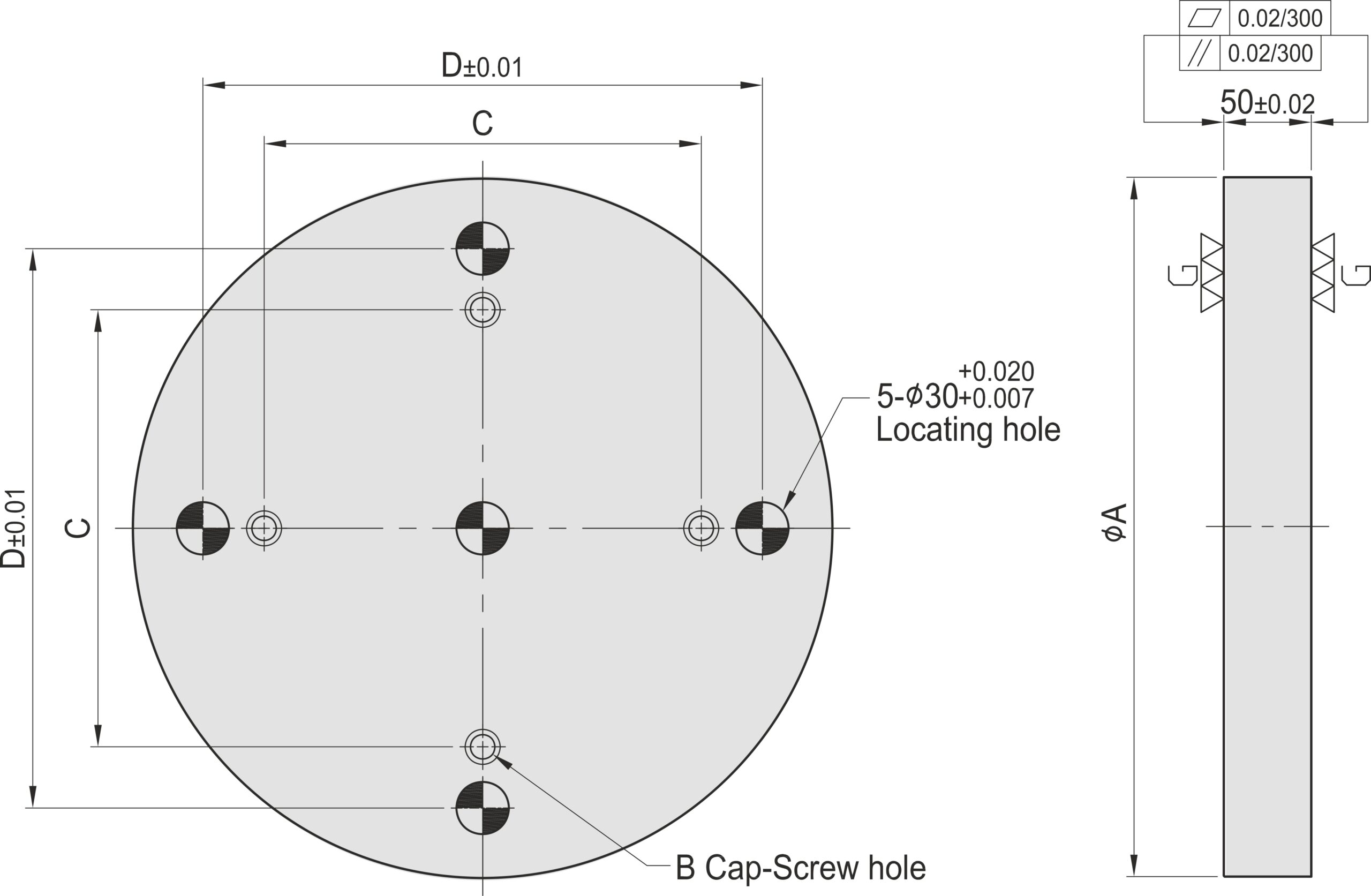

Article No.Model No.ABCDWeight.KG2D (PDF)3D (STEP)
FG/WH/BASPL/RDPLNNP001BPP/R/D300300M1215022025DownloadDownload
FG/WH/BASPL/RDPLNNP002BPP/R/D400400M1225032040DownloadDownload
FG/WH/BASPL/RDPLNNP003BPP/R/D500500M1630040065DownloadDownload
FG/WH/BASPL/RDPLNNP004BPP/R/D600600M1640050095DownloadDownload
