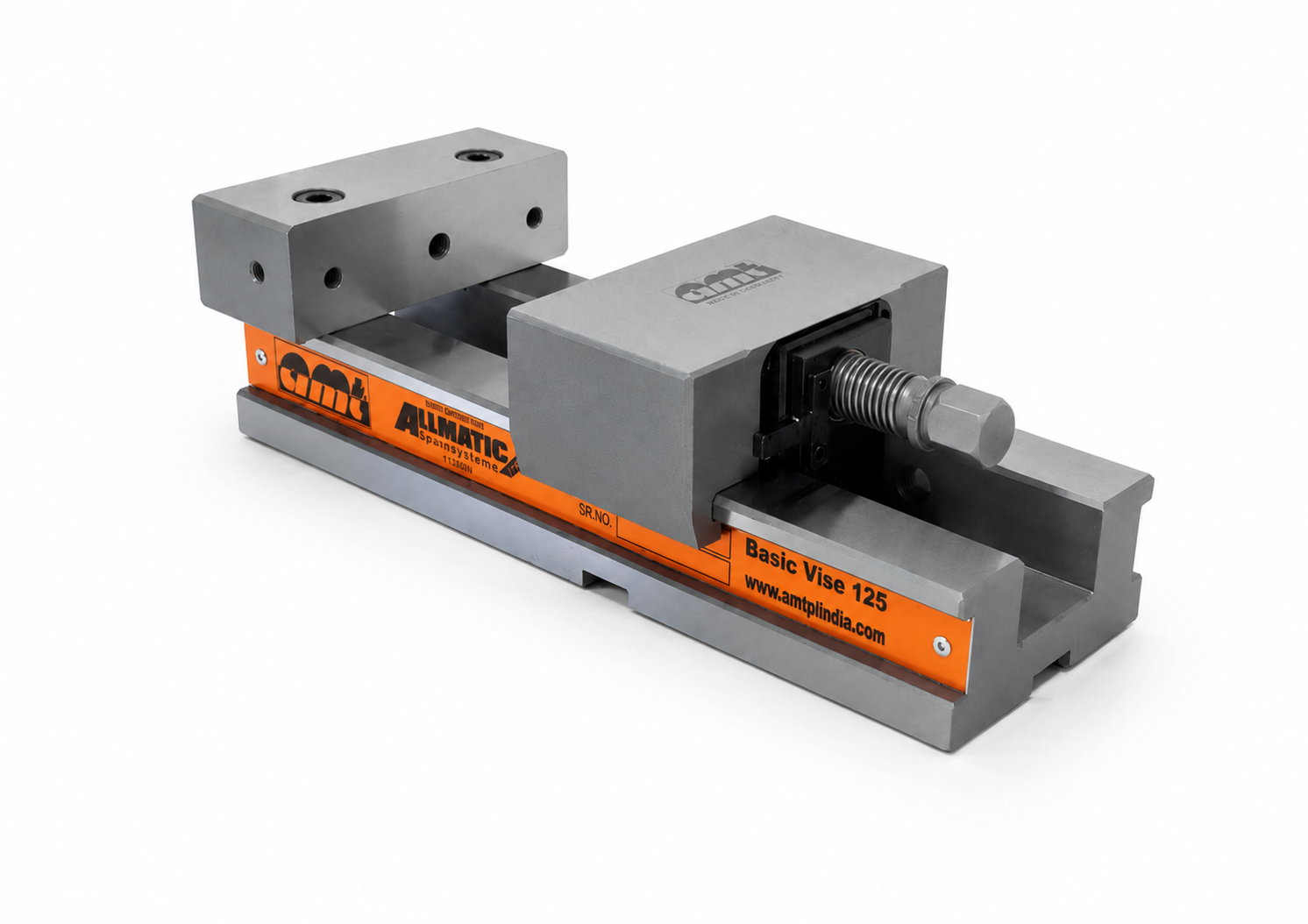

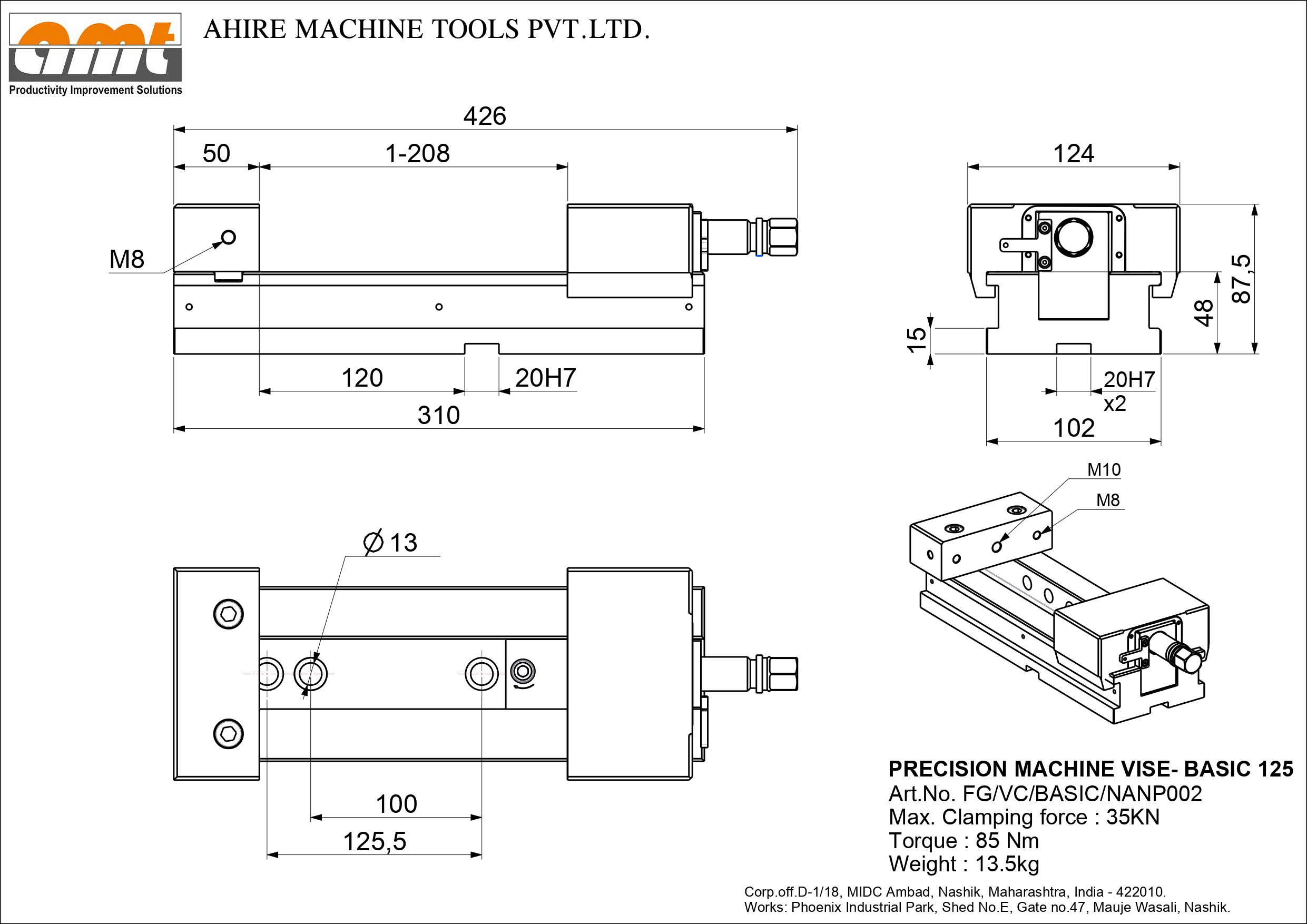

Precision Machine Vise–Basic 125
Article number:FG/VC/BASIC/NANP002
Scope of Application
- CNC milling machine – for efficient precision machining
- Horizontal installation – great variability and Flexibility
Product Features
- Alloy steel body & case hardened
- Excellent ease of operation guarantees optimal handling for every application
- Fast adjustment for clamping range pre setting
- Operation with the ring wrench supplied
- Reproducible clamping forces are achieved using a torque wrench
- Integrated scrapers ensure functional reliability and minimise cleaning
- Fixing on the machine table by means of mounting holes in the vise base. Additional holes can be made in the soft middle section of the vise base
- Optional centre jaw allows two or more work pieces to be clamped
- Min. Clamping Range (mm): 1
- Max. Clamping Range (mm): 208
- Jaw Width (mm): 124
- Max. Torque (Nm): 85
- Max. Clamping Force (kN): 35
- Weight (Net) (kg): 13.5
- Precision Machine Vise with Clamping Jaws – 1 No.
- Universal Jaw 125 – 1 Set
- Workpiece Stopper – 1 No.
- Click Parallel 3 mm Thick × Height 35 mm (125) – 1 Set
- Side Clamp 125/160 – 4 Nos.
- Combination Spanner 19 mm – 1 No.
- T-Type Allen Key 6 mm – 1 No.
- Tenon 20 × 16 – 2 Nos.
Compatible Accessories
Enhance performance and extend the functionality of this product with precision-engineered AMT accessories. Designed for seamless fit, durability, and industrial reliability.
Accessories
