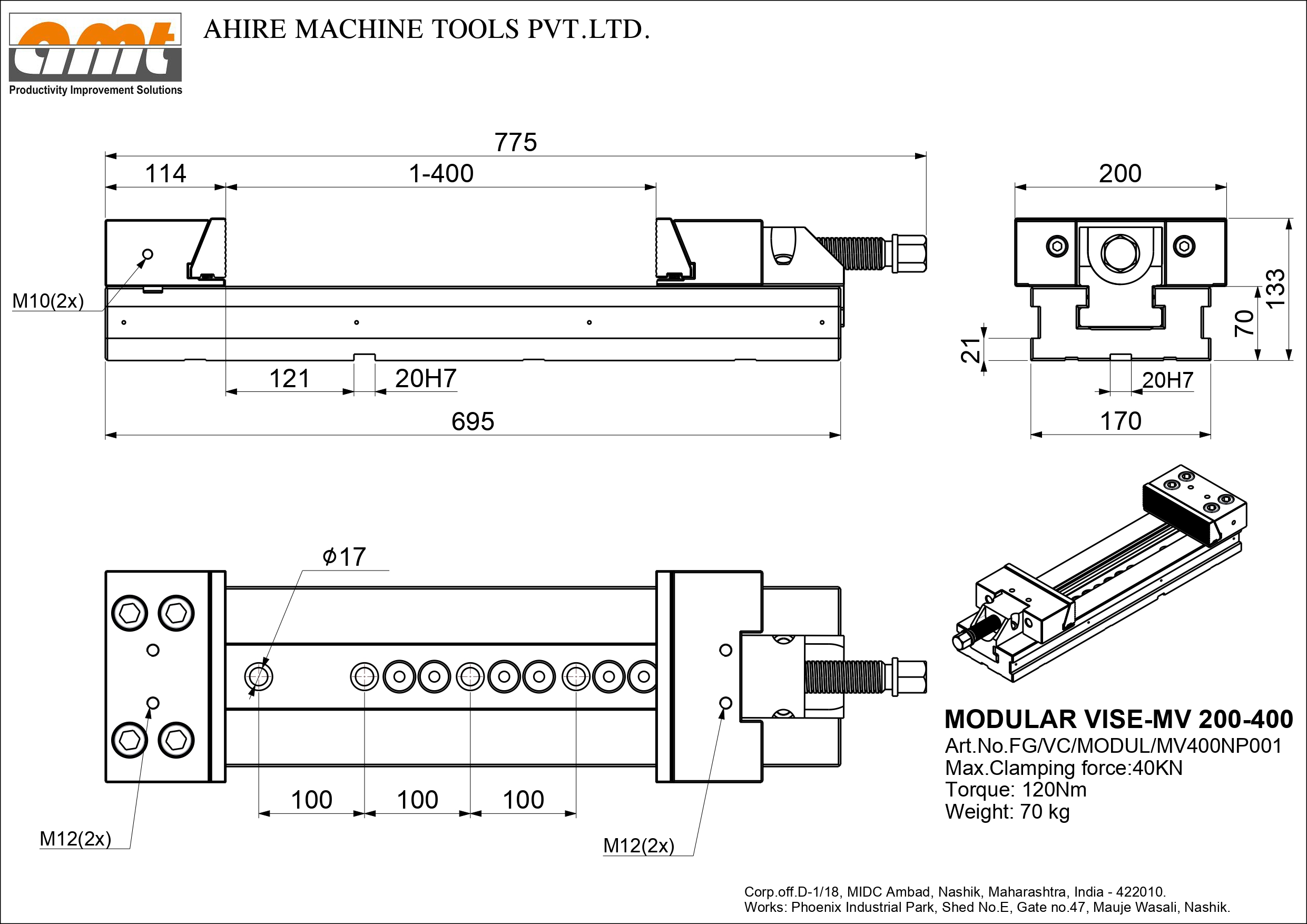

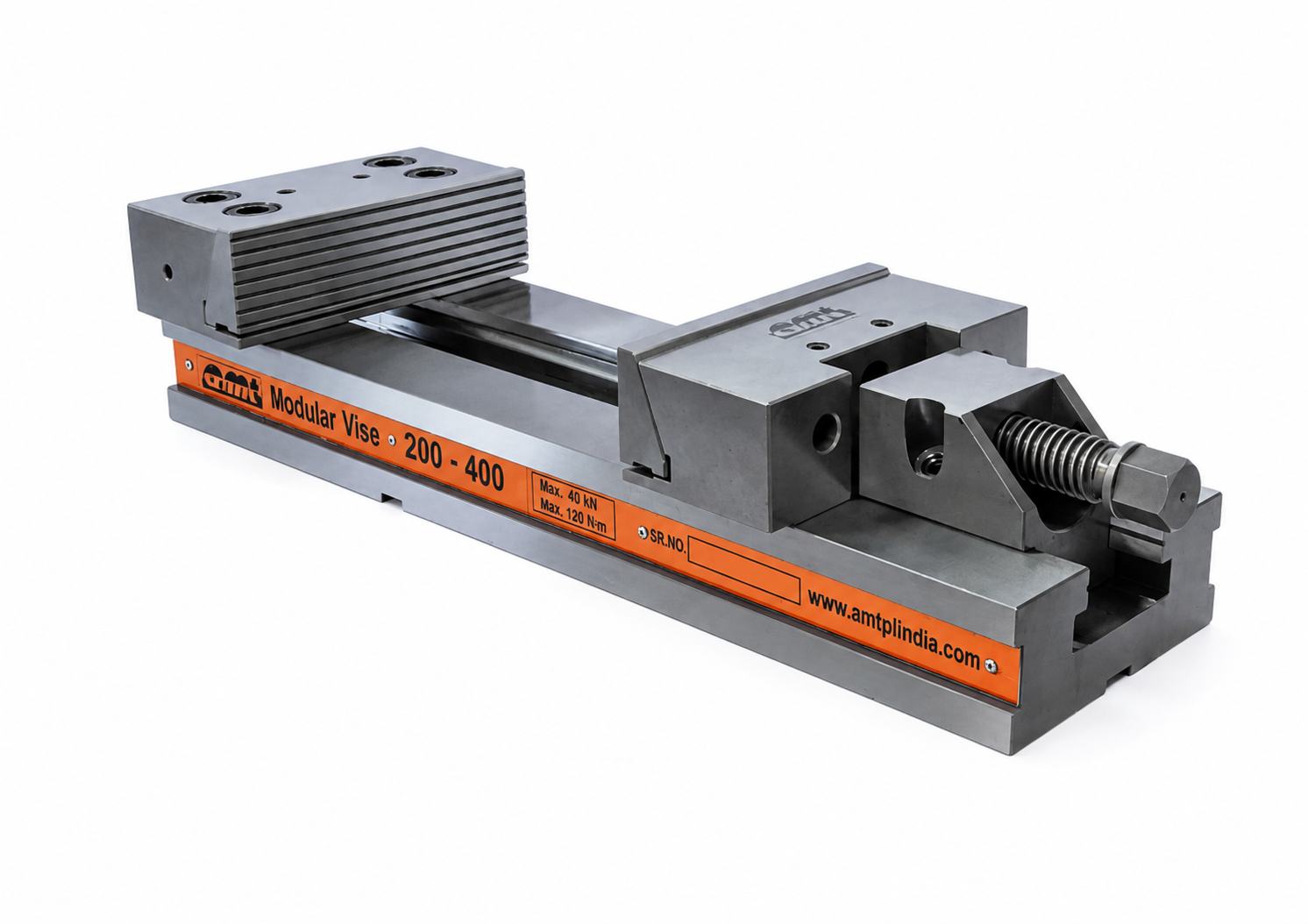

Modular vise MV 200-400
Article number:FG/VC/MODUL/MV400NP001
Scope of Application
- CNC milling machine – for efficient precision machining
- Horizontal installation – great variability and Flexibility
Product Features
- Alloy steel body and case hardened at 60 HRC with rigid construction and exclusion of vibration
- Parallelism of body is within 0.02 mm vise with pull-down jaws.
- Since the work piece is clamped by pulling down, floating up is prevented in spite of the powerful clamping force.
- Reproducible clamping force are achieved using a torque wrench.
- 4 extra tapped holes over the jaws for special stack type jaw application.
- Max. clamping range in mm – 400
- Jaw width in mm – 200
- Max. torque in Nm – 120
- Max. clamping force in kN – 40
- Weight (net) in kg – 70
- Modular vise 200-400 with Clamping Jaws – 1 Nos.
- Work Piece Stopper – 1 Nos.
- Side Clamp 125/160 – 8 Nos.
- Combination Spanner – 1 Nos.
- T-type Allen Key – 1 Nos.
- Tenon 20×16 – 2 Nos.
