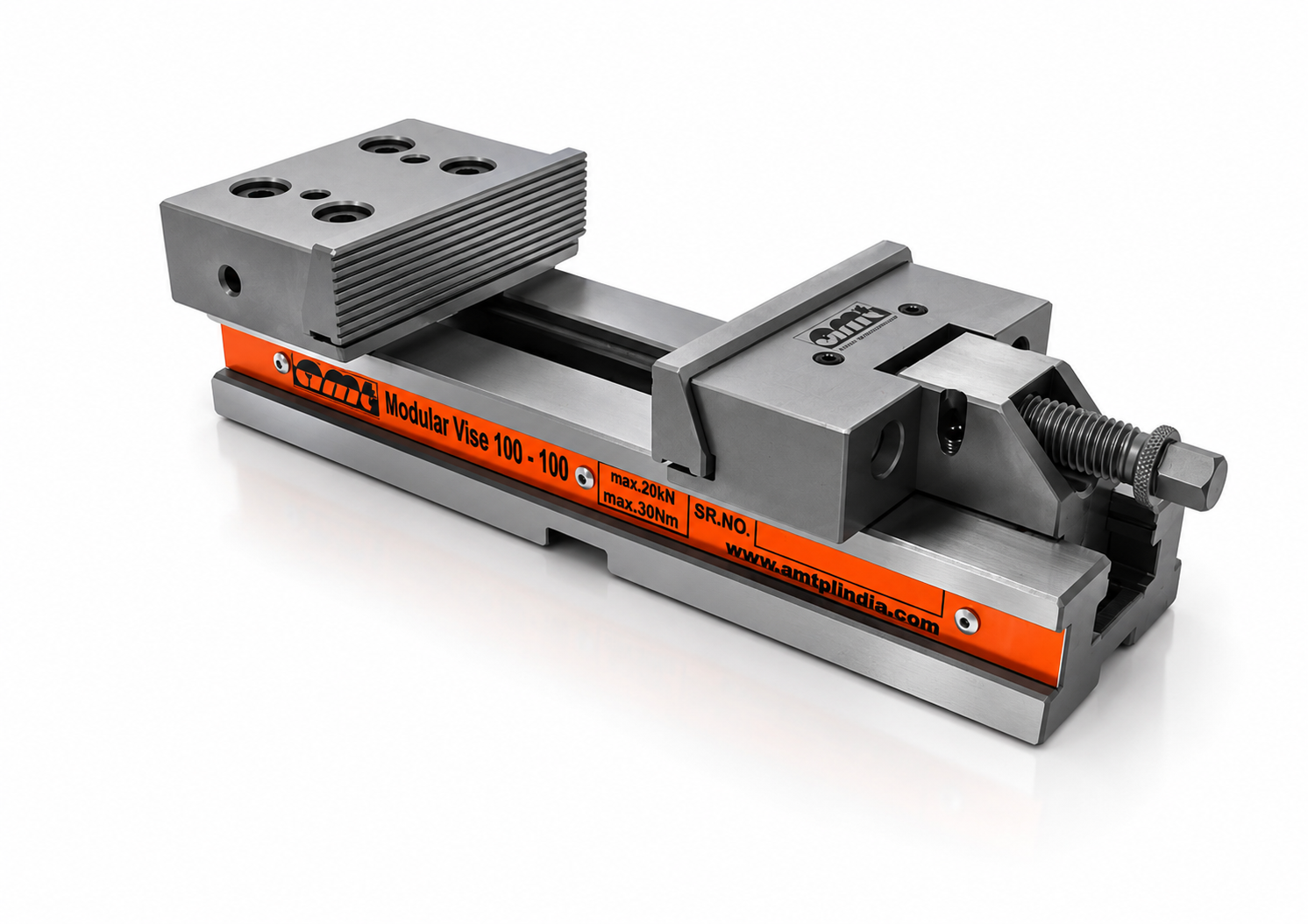

Modular vise MV 100-100
Article number:FG/VC/MODUL/MV100NP001
Scope of Application
- CNC milling machine – for efficient precision machining
- Horizontal installation – great variability and Flexibility
Product Features
- Alloy steel body and case hardened at 60 HRC with rigid construction and exclusion of vibration
- Parallelism of body is within 0.02 mm vise with pull-down jaws.
- Since the work piece is clamped by pulling down, floating up is prevented in spite of the powerful clamping force.
- Reproducible clamping force are achieved using a torque wrench.
- 4 extra tapped holes over the jaws for special stack type jaw application
- Max. clamping range in mm – 105
- Jaw width in mm – 100
- Max. torque in Nm – 30
- Max. clamping force in kN – 20
- Weight (net) in kg – 6.5
- Modular vise 100-100 with Clamping Jaws – 1 Nos.
- Work Piece Stopper 125/160 – 1 Nos.
- Side Clamp MV 100 – 4 Nos.
- Combination Spanner 12mm – 1 Nos.
- T-type Allen Key-3mm – 1 Nos.
- Tenon 20×16 – 2 Nos.
