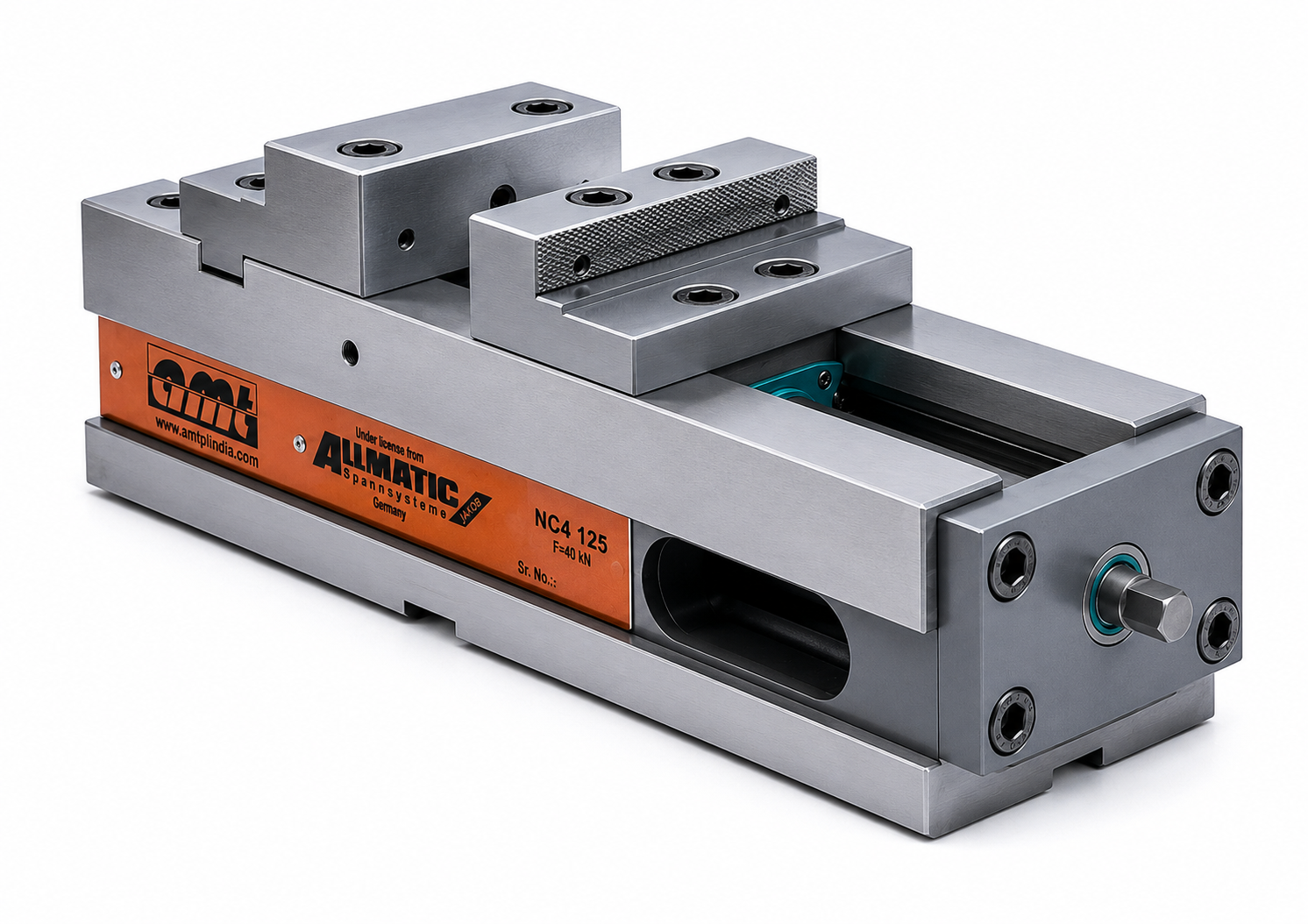

Mechanical NC4

Name: Mechanical NC4 - AMT
SKU: FG/VC/HIPR/00NC4NP001

Article number:FG/VC/HIPR/00NC4NP001

Scope of Application

Ideal for use on 3-axis machining centres.
Easy handling.
Max.40 kN clamping force per one rotation with hand crank.

Product Features

Max. clamping force 40 kN.
Constant, reproducible clamping force with mechanical power-assist.
Proven maintenance-free and encapsulated high-pressure spindle thus minimized requirements.
Basic body made of GGG-60.
Guideway inductively hardened and ground.
Reversible jaws for min./ max. chuck capacities.
Alloy steel body and case hardened.

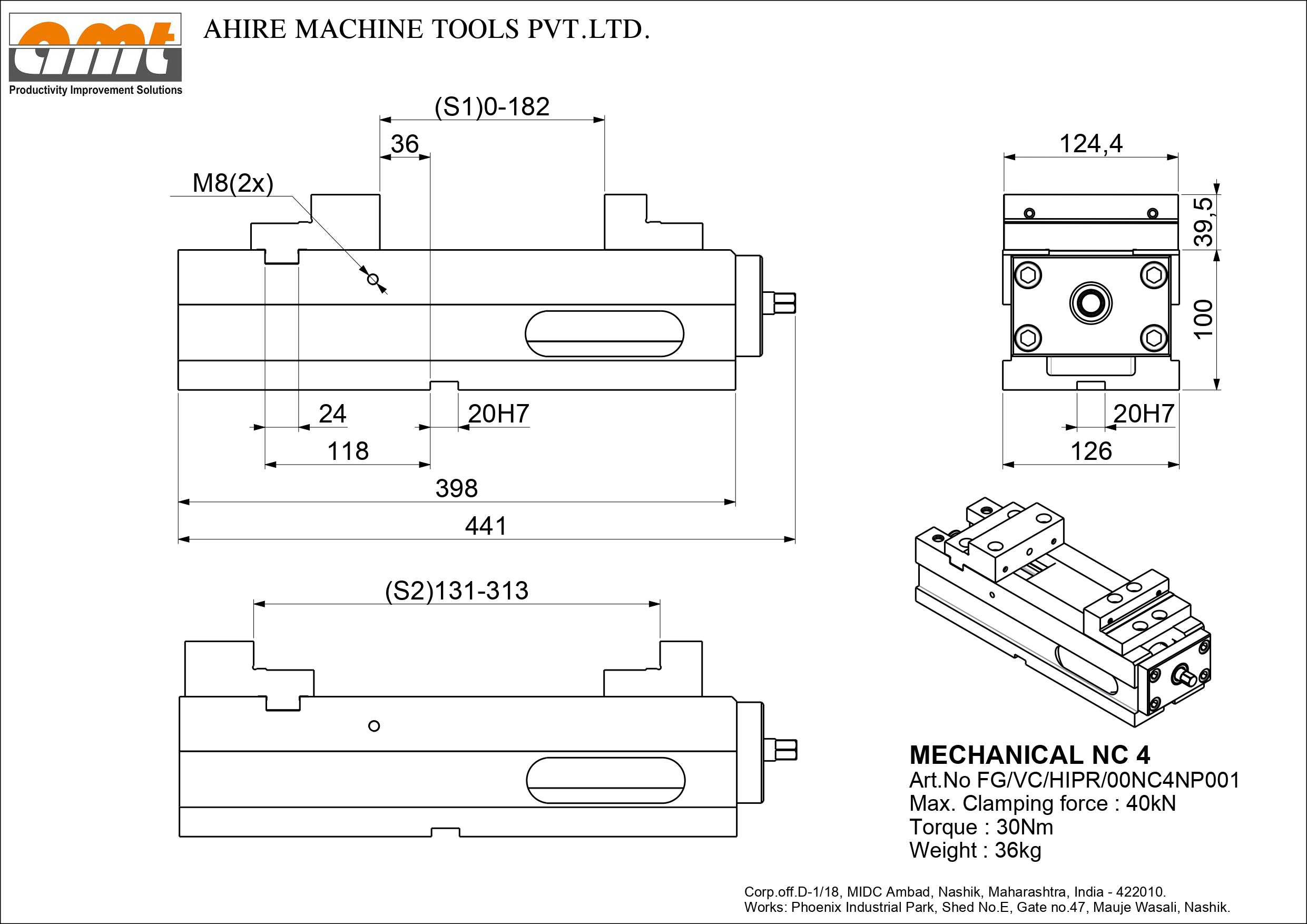

Max. clamping range S1 in mm – 0-182

Min. clamping range S2 in mm – 137-313

Jaw width in mm – 125

Max. clamping force in kN -40

Weight (net) in kg –36

NC 4 Vise with Step Jaws – 1 Nos

Universal Jaw 125 – 1 Set

Work Piece Stopper – 1Nos.

Side Clamp 125/160 – 4 Nos.

Crank Handle – 1 Nos.

Tenon 20×16 – 2 Nos.

Universal Jaw -125

Article number:FG/VC/BASIC/C0076NP002

Prismatic Jaw -125

Article number:FG/VC/BASIC/C0029NP001

Soft Jaw -125

Article number:FG/VC/BASIC/C0028NP001

Work Piece Stopper

Article number:FG/VC/BASIC/C0031NP001

Click Parallel 3×35 mm 125

Article number:FG/VC/BASIC/C0074NP001

Click Parallel 10×35 mm 125

Article number:FG/VC/BASIC/C0027NP001

Click Parallel 10×25 mm 125

Article number:FG/VC/BASIC/C0026NP001

Step Jaw fixed

Article number:FG/VC/HIPR/C0055NP001

Step Jaw Movable

Article number:FG/VC/HIPR/C0054NP001

Extension Body

Article number:FG/VC/HIPR/C0068NP001

Magnetic Work Piece Stopper

Article number:FG/WH/EZ/MGNS1NP001

Magnetic Work Piece Stopper

Article number:FG/WH/EZ/MGNS2NP001
