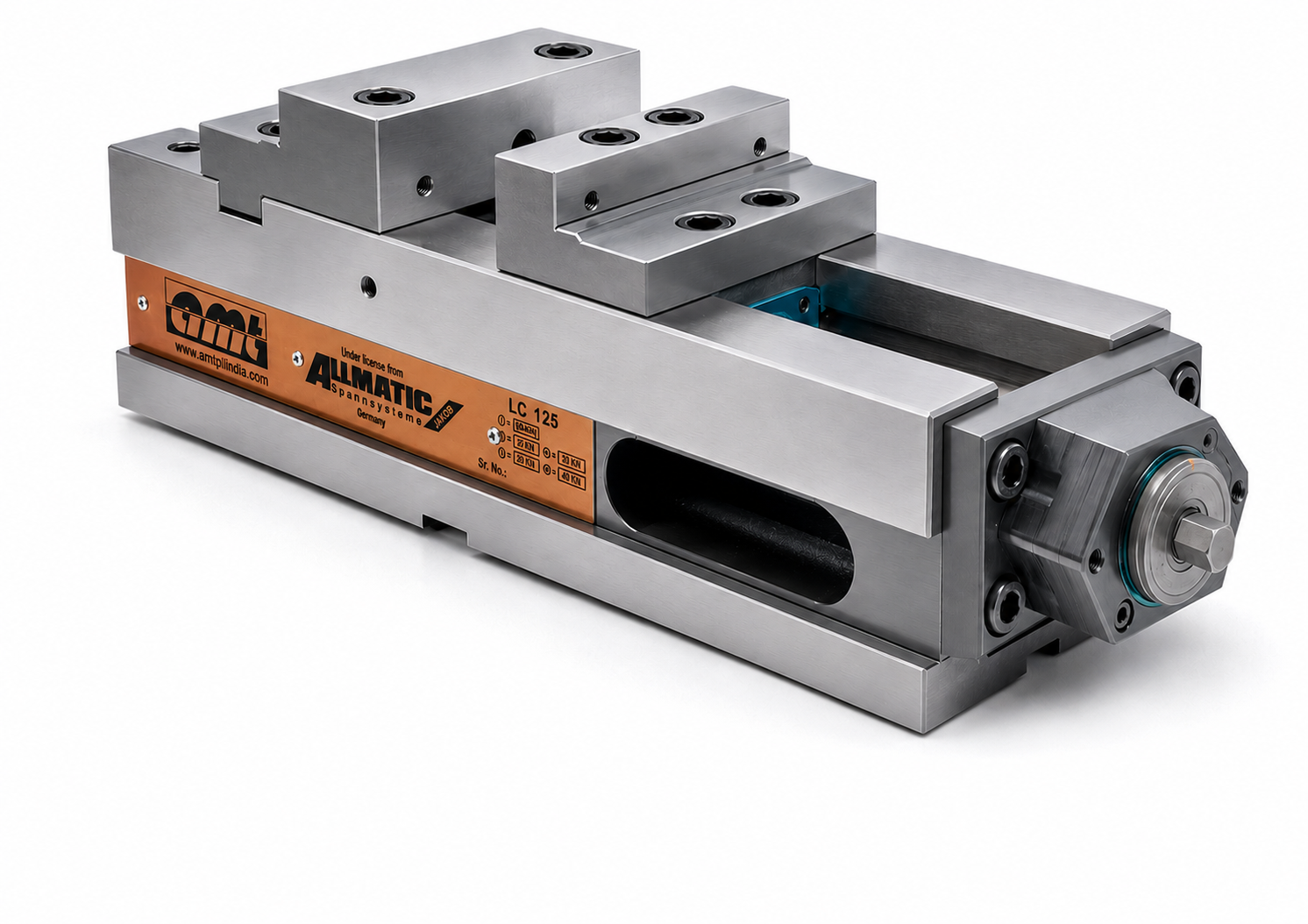

Mechanical LC 125

Name: Mechanical LC 125 - AMT
SKU: FG/VC/HIPR/LC125NP001

Article number:FG/VC/HIPR/LC125NP001

Scope of Application

Horizontal installation – suitable for vertical CNC controlled milling machines.

Product Features

Alloy steel body & case hardened.
Extreme accuracy for your machining.
Clamping force can be pre-set in 4 increments.
At most, 2 revolutions are required to reach the max. clamping force.
Preselect able and reproducible clamping force enable the work piece position to be repeated within a tolerance of less than 0.01 mm.

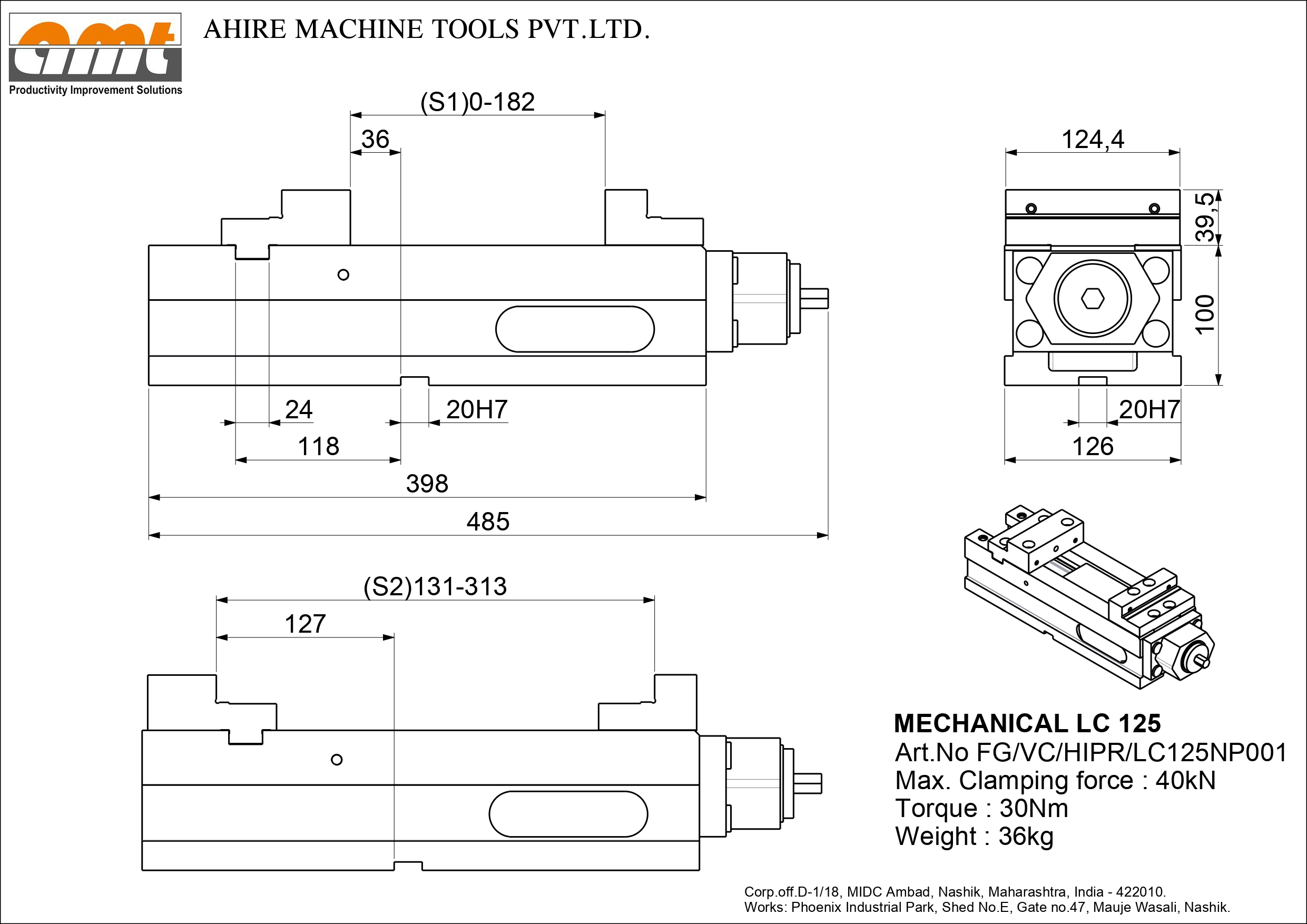

Max. clamping range S1 in mm –0-182

Max. clamping range S2 in mm –131-313

Jaw width in mm – 124.4

Max. torque in Nm – 30

Max. clamping force in kN -40

Weight (net) in kg –36

LC 125 vise with Step Jaws – 1 Nos.

Universal Jaw 125 – 1 Set

Work Piece Stopper – 1Nos.

Side Clamp 125/160 – 4 Nos.

Crank Handle – 1 Nos.

Tenon 20×16 – 2 Nos.

Universal Jaw -125

Article number:FG/VC/BASIC/C0076NP002

Prismatic Jaw -125

Article number:FG/VC/BASIC/C0029NP001

Soft Jaw -125

Article number:FG/VC/BASIC/C0028NP001

Work Piece Stopper

Article number:FG/VC/BASIC/C0031NP001

Click Parallel 3×35 mm 125

Article number:FG/VC/BASIC/C0074NP001

Click Parallel 10×35 mm 125

Article number:FG/VC/BASIC/C0027NP001

Click Parallel 10×25 mm 125

Article number:FG/VC/BASIC/C0026NP001

Step Jaw fixed

Article number:FG/VC/HIPR/C0055NP001

Step Jaw Movable

Article number:FG/VC/HIPR/C0054NP001

Extension Body

Article number:FG/VC/HIPR/C0068NP001

Magnetic Work Piece Stopper

Article number:FG/WH/EZ/MGNS1NP001

Magnetic Work Piece Stopper

Article number:FG/WH/EZ/MGNS2NP001
