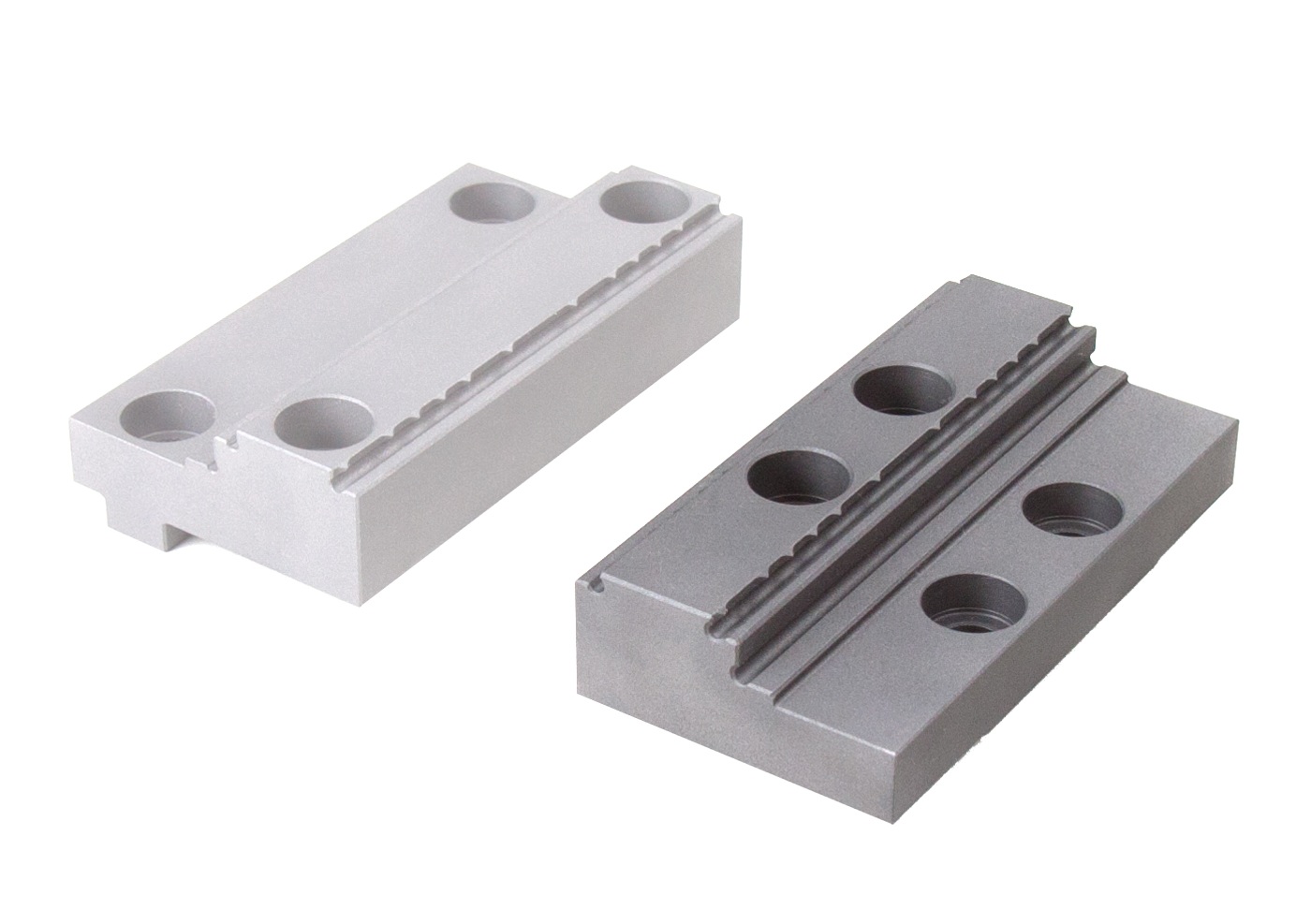

Gripper Jaw Movable With Integrated Gripper Row

Hardened ground and polished parallels.
Hardened 40~45 HRC.
For horizontal and vertical clamping of round and flat work pieces.
Horizontal clamping range Dia.12-28 mm
Vertical clamping range Dia.18-55 mm

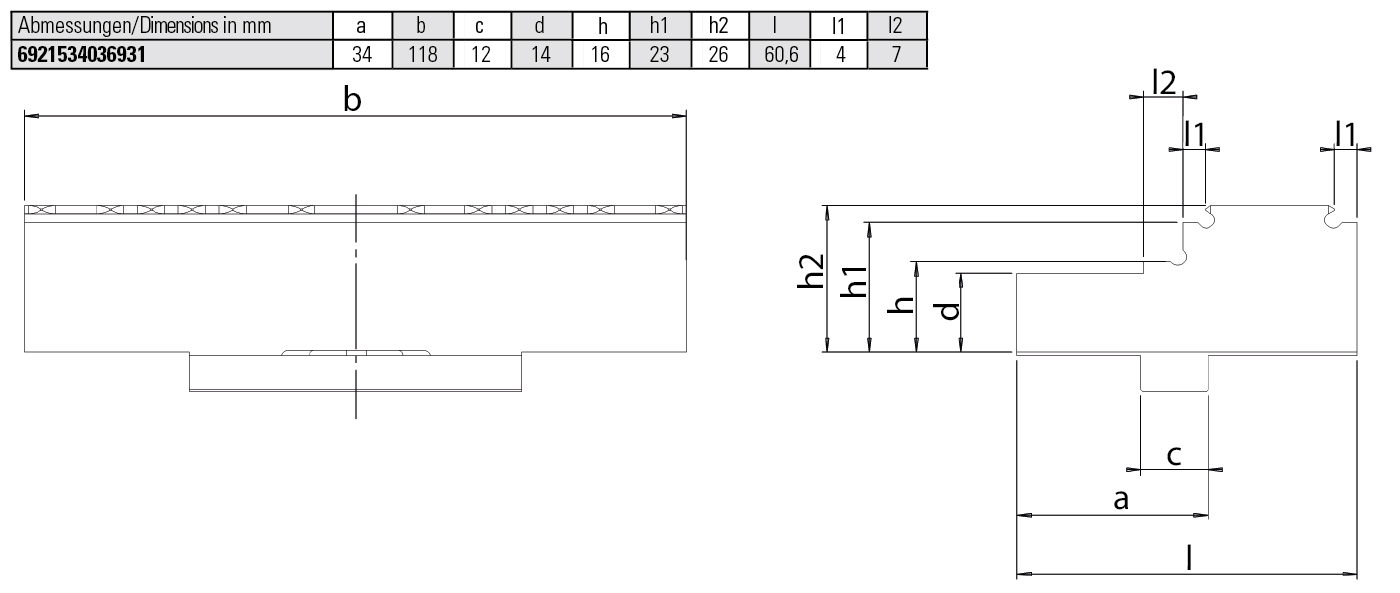

Dimensions in mm – 118

Dimensions in mm – 60.6

Dimensions in mm –26

Gripper Jaw Movable with Integrated gripper row- 1 Nos

Allen Bolt M10x20- 2 Nos

Allen Bolt M10x30- 2 Nos
