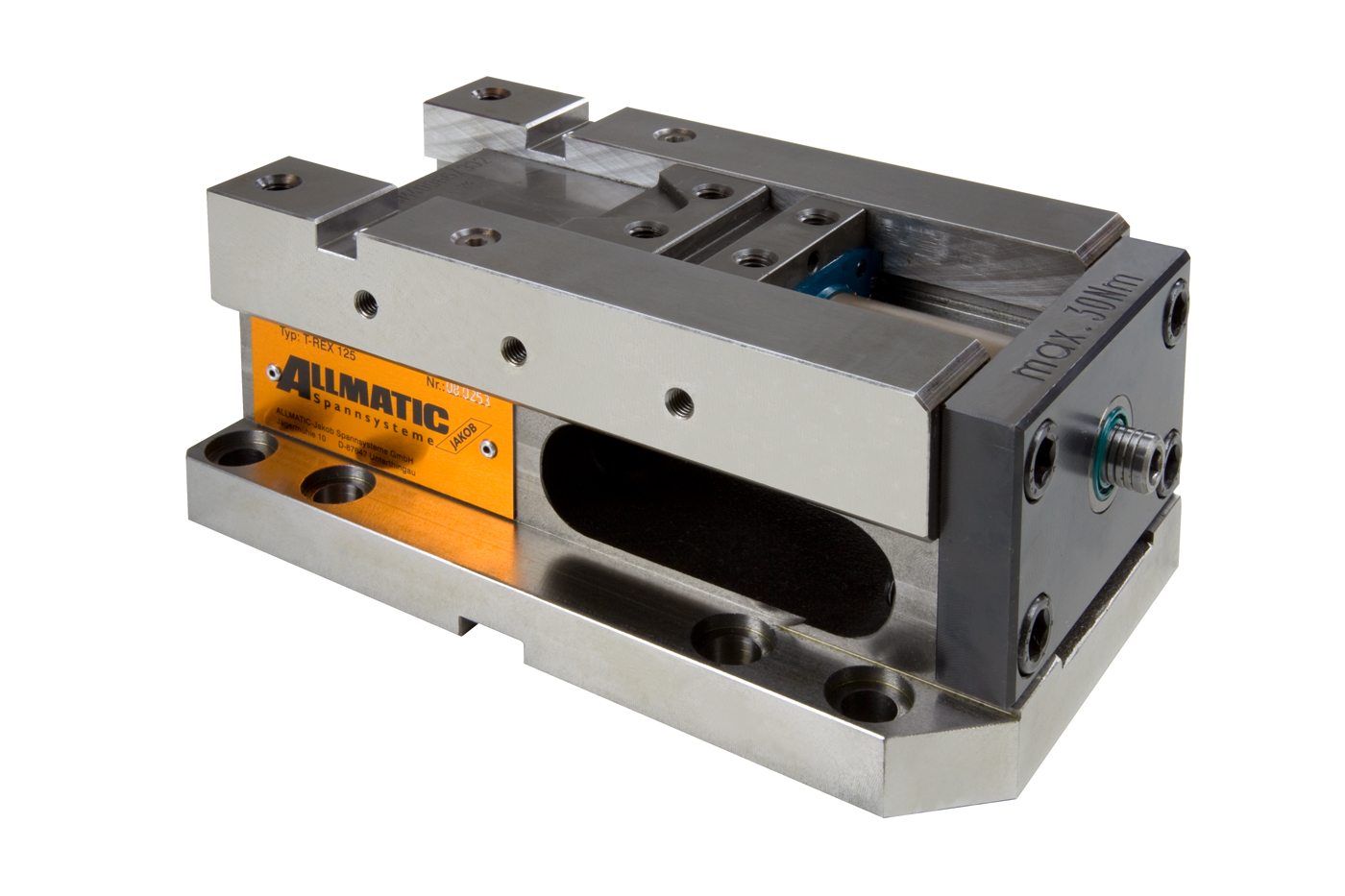

Gripp Mechanical T-Rex
Article number:6921888000155
Scope of Application
- Horizontal installation – suitable for vertical CNC-controlled milling machines.
- Ideal for use on 5-axis machining centres.
- Reliable and fast clamping of un-machined parts, flame-cut and sawn materials with gripper jaws.
- Clamping of parallel pre-machined work pieces with optional step jaws.
- Gripper studs suitable for materials a strength of up to approx. 1000N/mm².
Product Features
- Optimum accessibility for 5-sided machining thanks to the combination of compact base and large clamping width
- Stamping and clamping in a single process, in the working area itself, without any additional accessories
- The movable/pivot support jaw allows different work piece contours to be clamped
- Gripper studs can be changed without tools and are easy to adjust by hand
- Operation with a torque wrench – max. 30 Nm
- High-pressure spindle with power intensification
- Standard with mounting holes for zero-point clamping system, Pitch 200
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

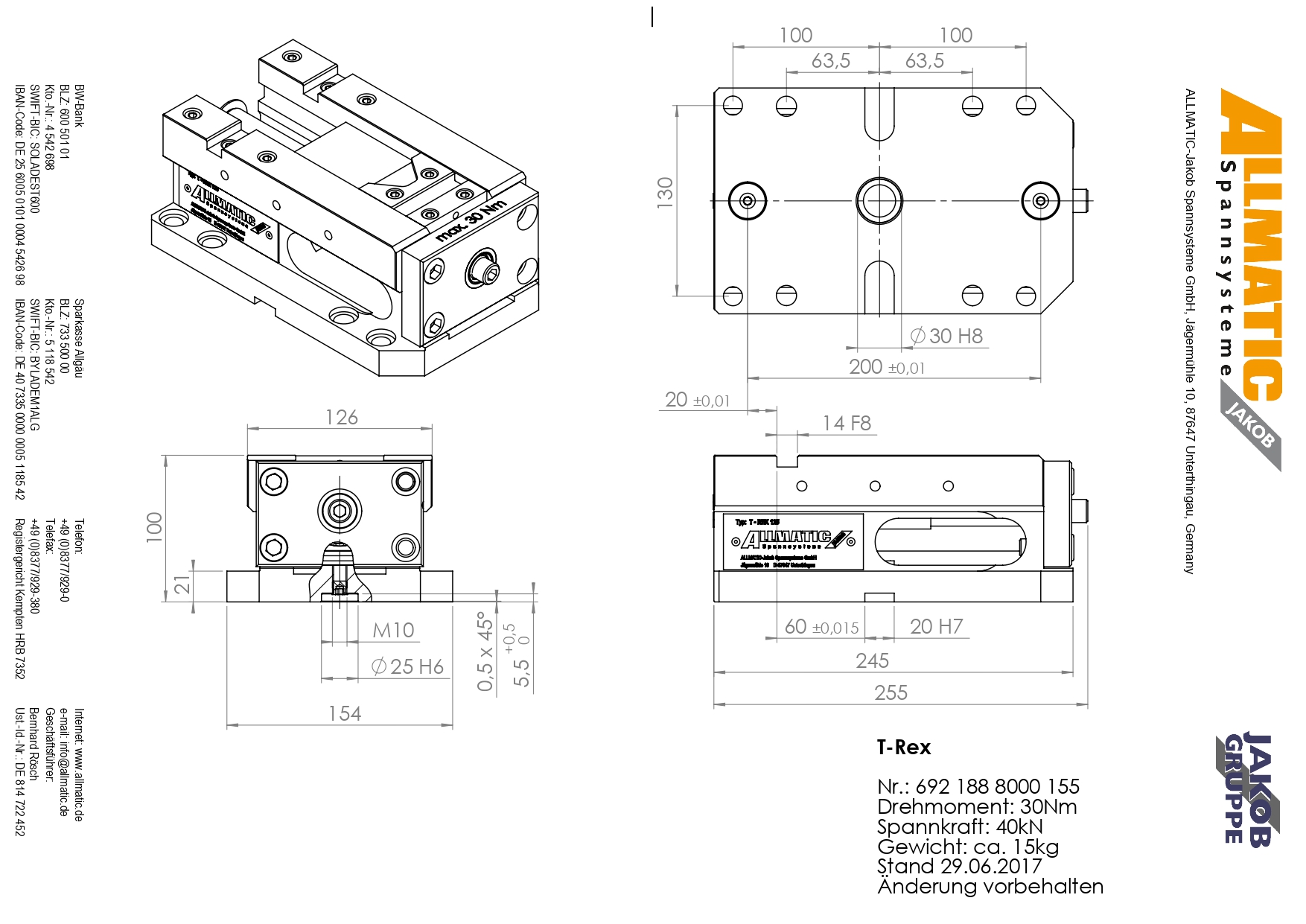

- CAD
- Technical Information
- Operating Manual
