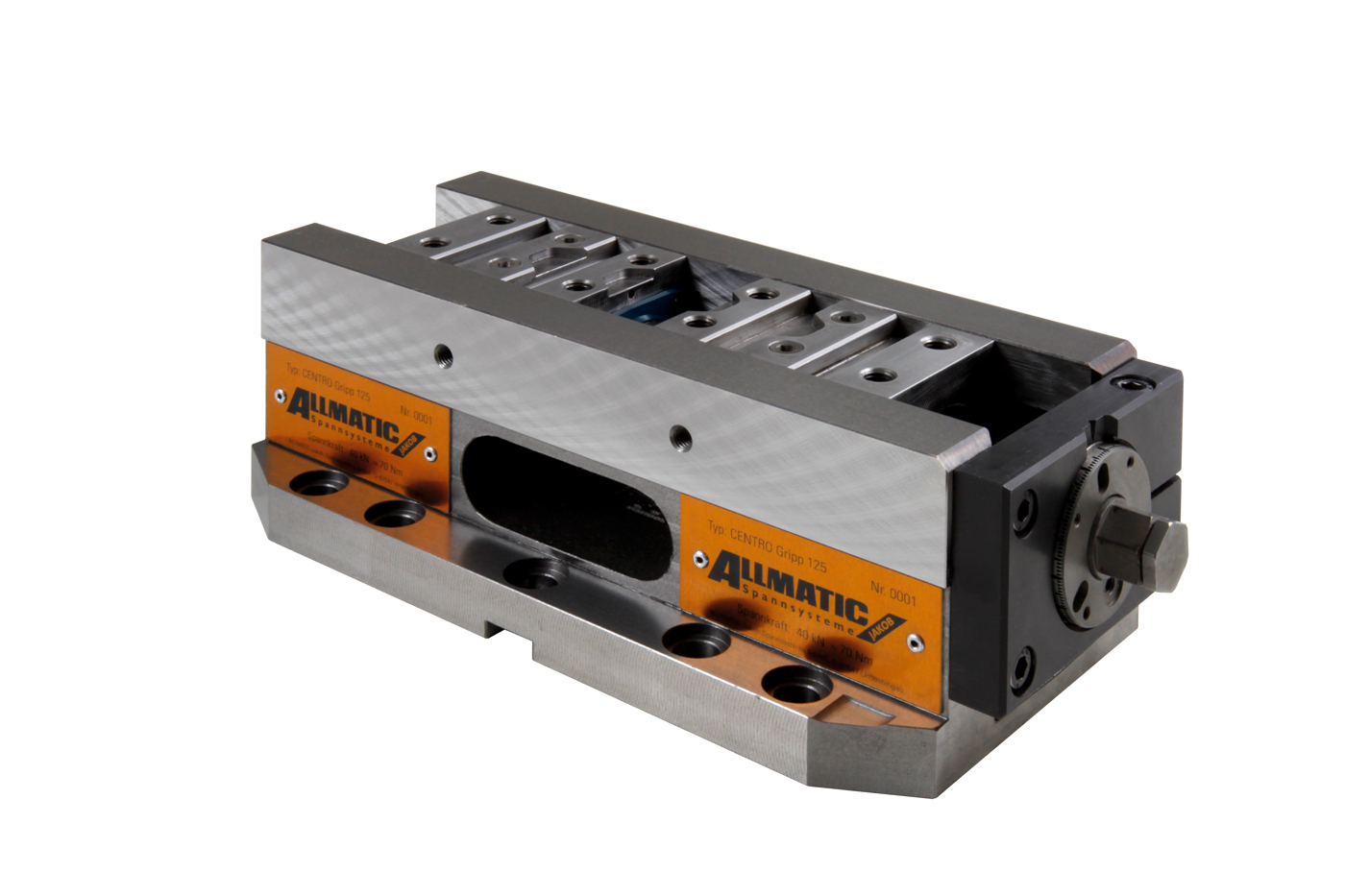

Gripp Mechanical Centro-125
Article number:6921538000055
Scope of Application
- Horizontal installation – suitable for vertical CNC milling machines
- Ideal for use on five-axis machining centres due to its compact design
- Depending on the clamping jaws, both pre-machined work pieces and un-machined parts can be clamped
- With support jaws, un-machined parts with varying types of flame-cut and sawn materials and even complex castings can be clamped safely and economically.
- Gripper stud suitable for materials of mechanical strength of up to approx. 1000 N/mm².
Product Features
- Alloy steel body & case hardened.
- The centre is adjustable. The position of the work piece stays within set boundaries
- Repeating accuracy ± 1/100 mm for angled work pieces
- Guide ground, polished and paired
- Clamping range pre-setting via adjustment of clamping jaws along transverse slots of spindle nuts
- Moulding and clamping in a single step, directly in the work area – no auxiliary aids required
- Use with a torque wrench – max. 70 Nm
- Fully enclosed and maintenance-free high-pressure spindle – high chip protection, minimum cleaning requirements, constant clamping forces up to 40 kN.
- Standard with mounting holes for zero-point clamping system, Pitch 200
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- CAD

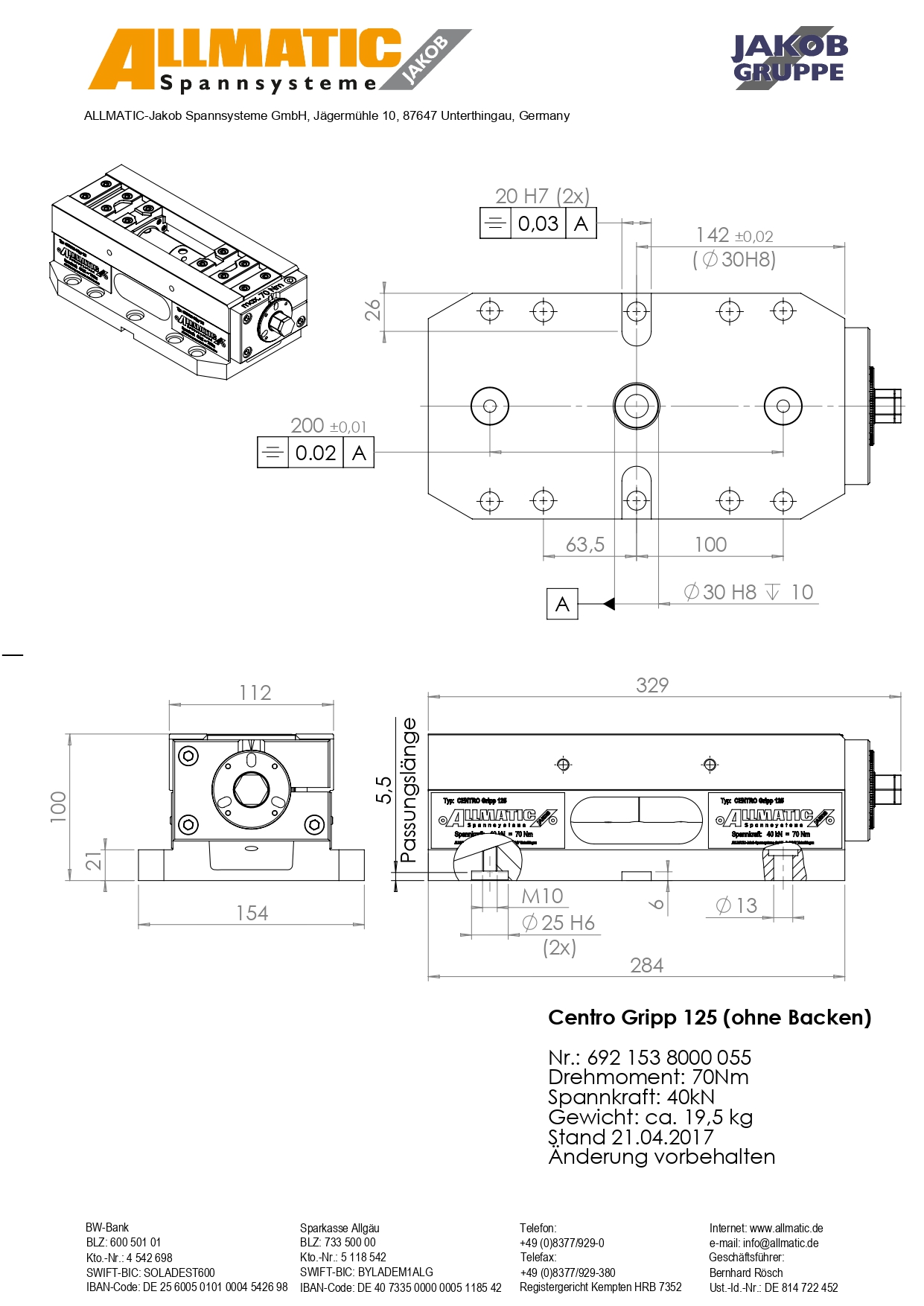

- Technical Information
