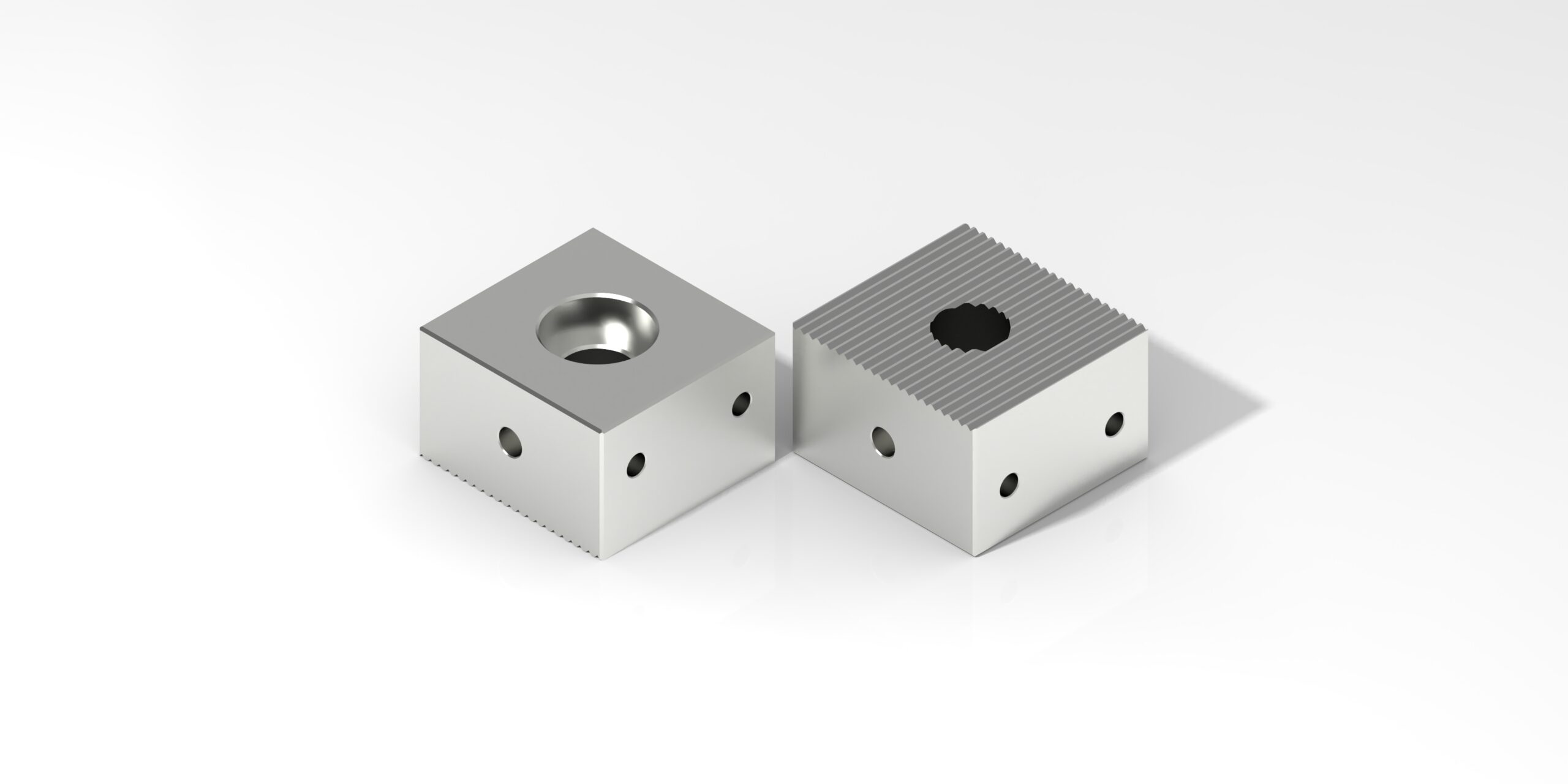

Fix Jaw STJ 3
Article number:FG/VC/RAIL/R0002NP003
- Alloy steel body & case hardened 58 to 60 HRC.
- Excellent ease of operation guarantees optimal handling for every application.Provision to fix work piece stop.
- The fixed stop is positioned on the clamping rail via the tightening bolt and grips positively interlocked on the 2 serration.
- Work piece can be positioned and clamped with great clamping force.
- Fastening screw thread is provided to accommodate various additional customized jaws to work piece.

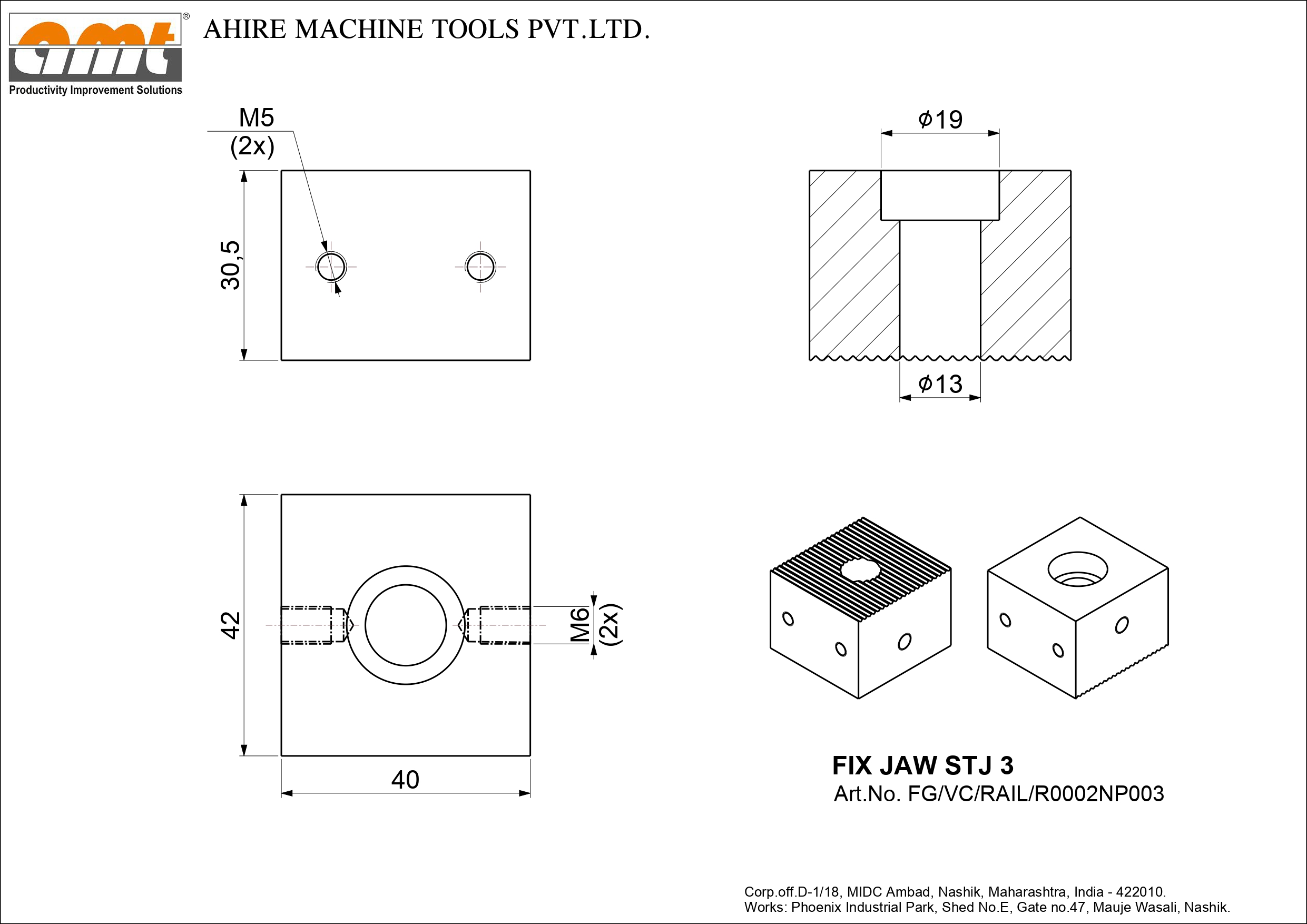

- CAD
- Technical Information
- Operating Manual
