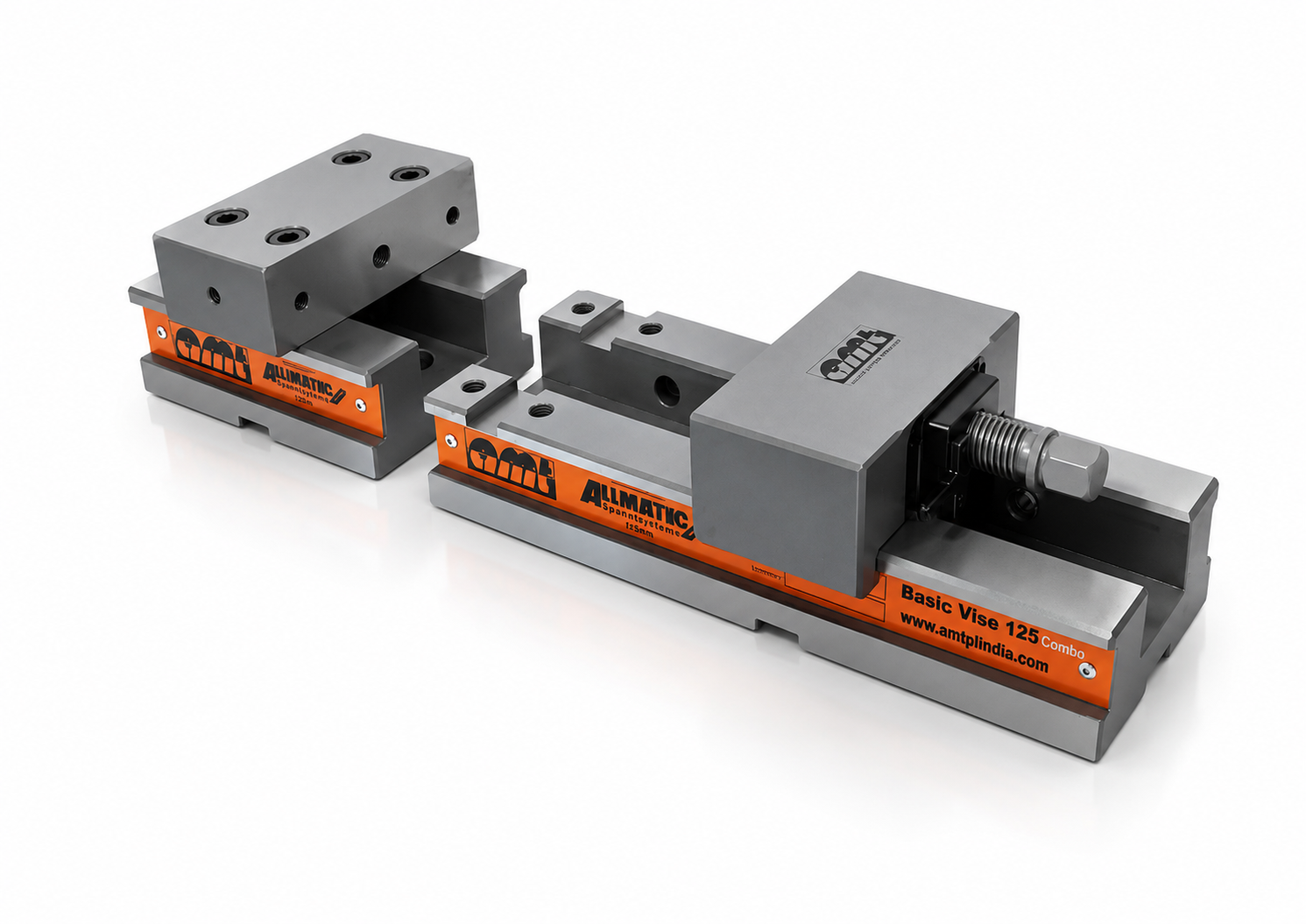

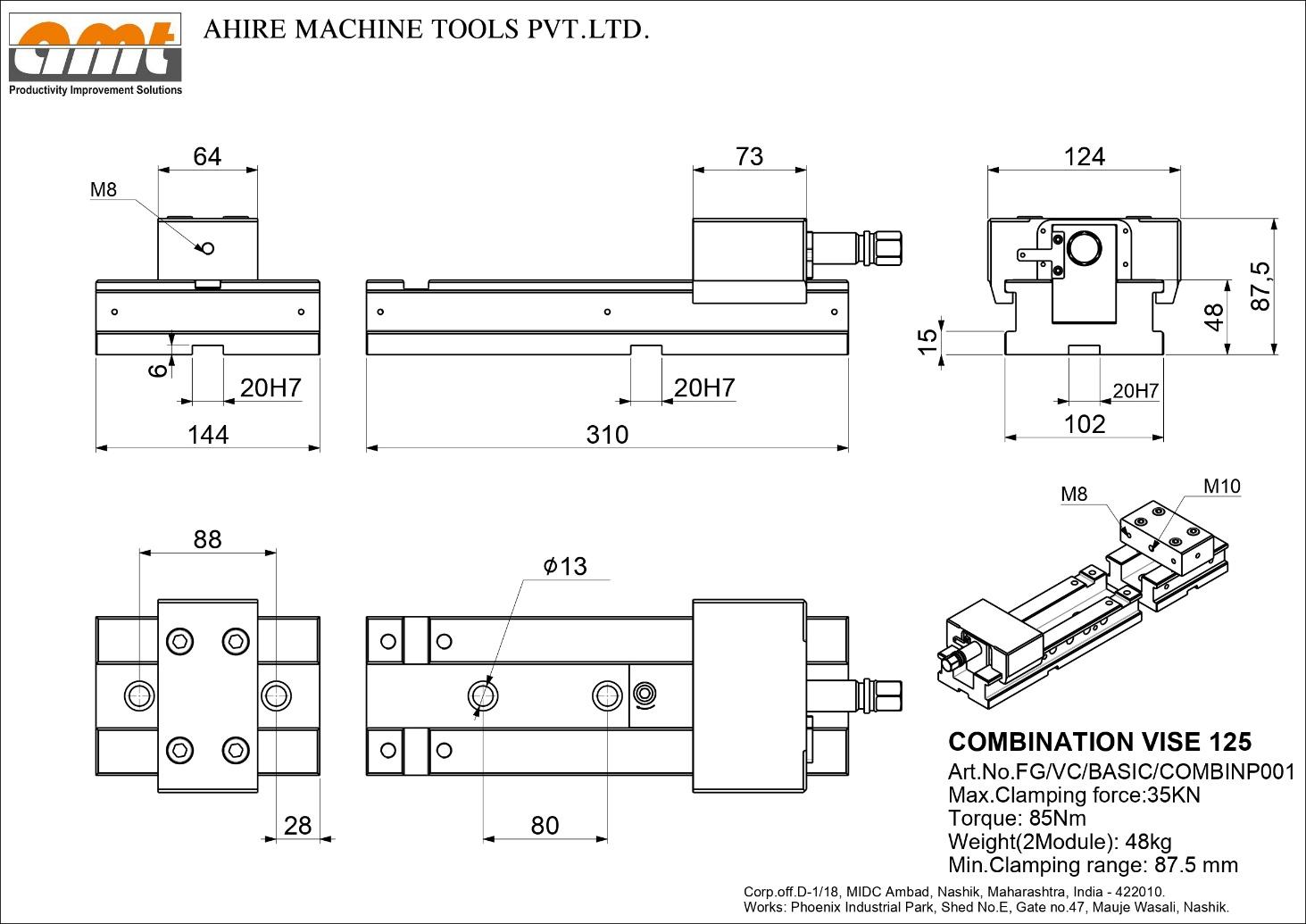

Combination Vise – Combi 125
Article number:FG/VC/BASIC/COMBINP001
Scope of Application
- Conventional and CNC controlled heavy duty milling machines.
Product Features
- Alloy steel body and case hardened.
- Excellent ease of operation guarantees optimal handling for every application.
- Fast adjustment for clamping range pre-setting.
- Operation with the ring wrench supplied.
- Reproducible clamping forces are achieved using a torque wrench.
- Integrated scrapers ensure functional reliability and minimise cleaning.
- Allow perfect clamping even of big workplace which need the heaviest machining using machine table as surface.
- Manufactured under rigid quality control, hence can maintain accuracy under most severe operating conditions.
- Space saving design & easy to handle.
- Jaw Width (mm): 124
- Max. Torque (Nm): 85
- Max. Clamping Force (kN): 35
- Weight (Net) (kg): 40
- Combi Vise-125 with Clamping Jaws:1 No.
- Extension Body 125: 1 No.
- Universal Jaw 125: 1 Set
- Work Piece Stopper 125/160: 1 No.
- Side Clamp 125/160: 8 Nos.
- Combination Spanner (19 mm): 1 No.
- T-Type Allen Key (6 mm): 1 No.
- Tenon 20 x 16: 4 Nos.
- Click Parallel 3mm Thick x Height 35 mm 125 – 1 Set
Compatible Accessories
Enhance performance and extend the functionality of this product with precision-engineered AMT accessories. Designed for seamless fit, durability, and industrial reliability.
